Removal and Installation: Installation

Apply bead cream or an equivalent to the tire beads.
Install the tire inside beads (1) onto the road wheel (2) in the position shown in the figure, below.

Courtesy of NISSAN NORTH AMERICA, INC.
Install grommet seal to the Tire Pressure Sensor.
CAUTION:
- Never reuse grommet seal.
- Insert grommet seal all the way to the base.
Hold Tire Pressure Sensor as shown in the figure below, and press the sensor in the direction shown by arrow ( ) to bring it into absolute contact with valve hole. After this, tighten valve nut to the specified torque.

Courtesy of NISSAN NORTH AMERICA, INC.
CAUTION:
- Never reuse valve core and valve cap.
- Check that grommet seal is free of foreign matter.
- Check that grommet seal contacts horizontally with road wheel.
- Manually tighten valve nut all the way to the wheel. (Never use a power tool to avoid impact.)

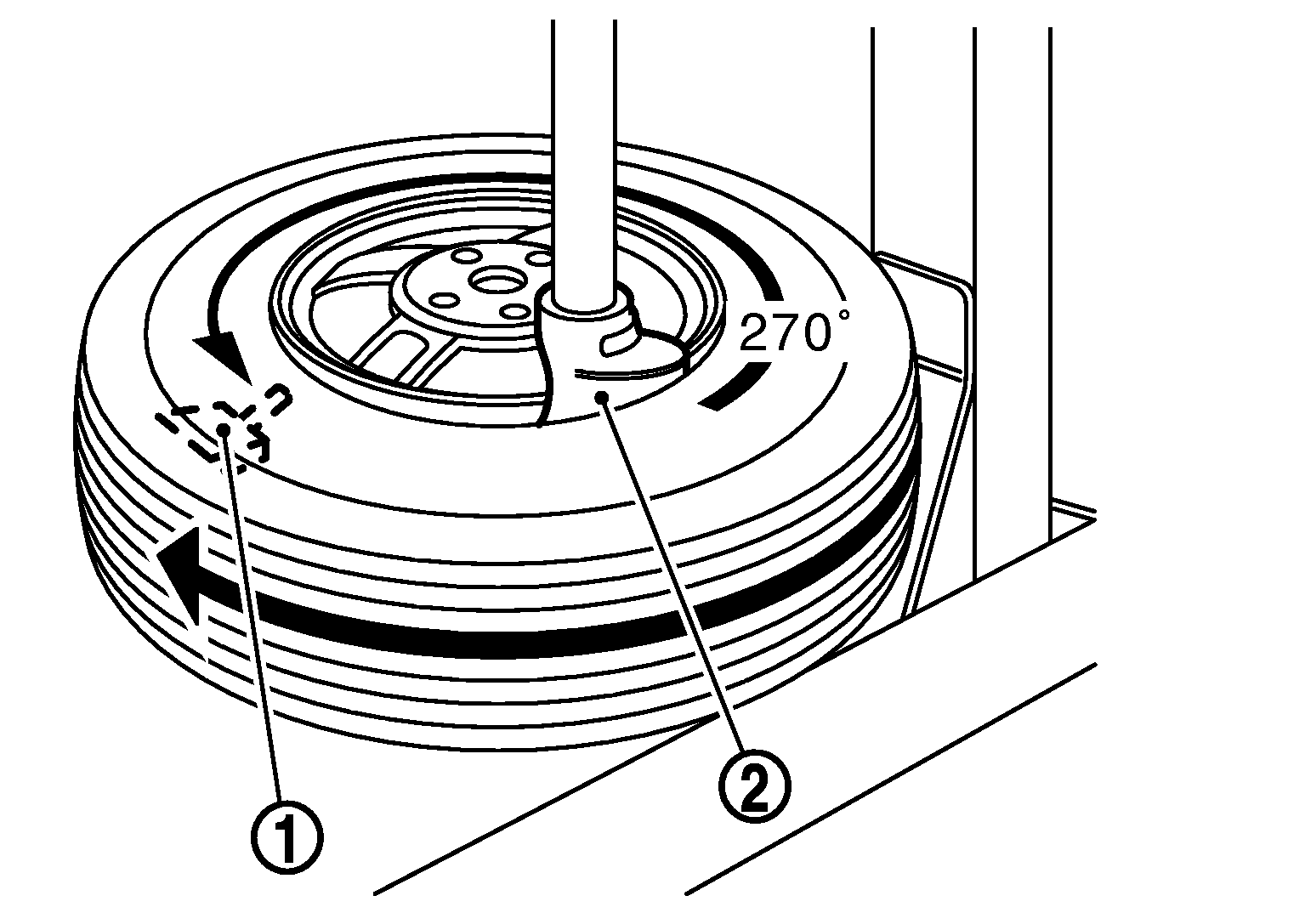

Set the tire onto the turntable so that the tire changer arm (2) is at a position approximately 270 deg. from the Tire Pressure Sensor (1).

Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION: Be sure that the arm does not contact the Tire Pressure Sensor.
Install the tire outer side beads onto the road wheel.
CAUTION: When installing, check that the tire does not turn together with the road wheel.
Check the tire pressure for all wheels and adjust to the specified value. Refer to Tire Air Pressure .
NOTE: Before adding air, align the tire with the position of the matching mark applied at the time of removal.
Install tire to the vehicle. Refer to Removal and Installation .
Perform Tire Pressure Sensor ID registration. Refer to Description .
