Exploded View

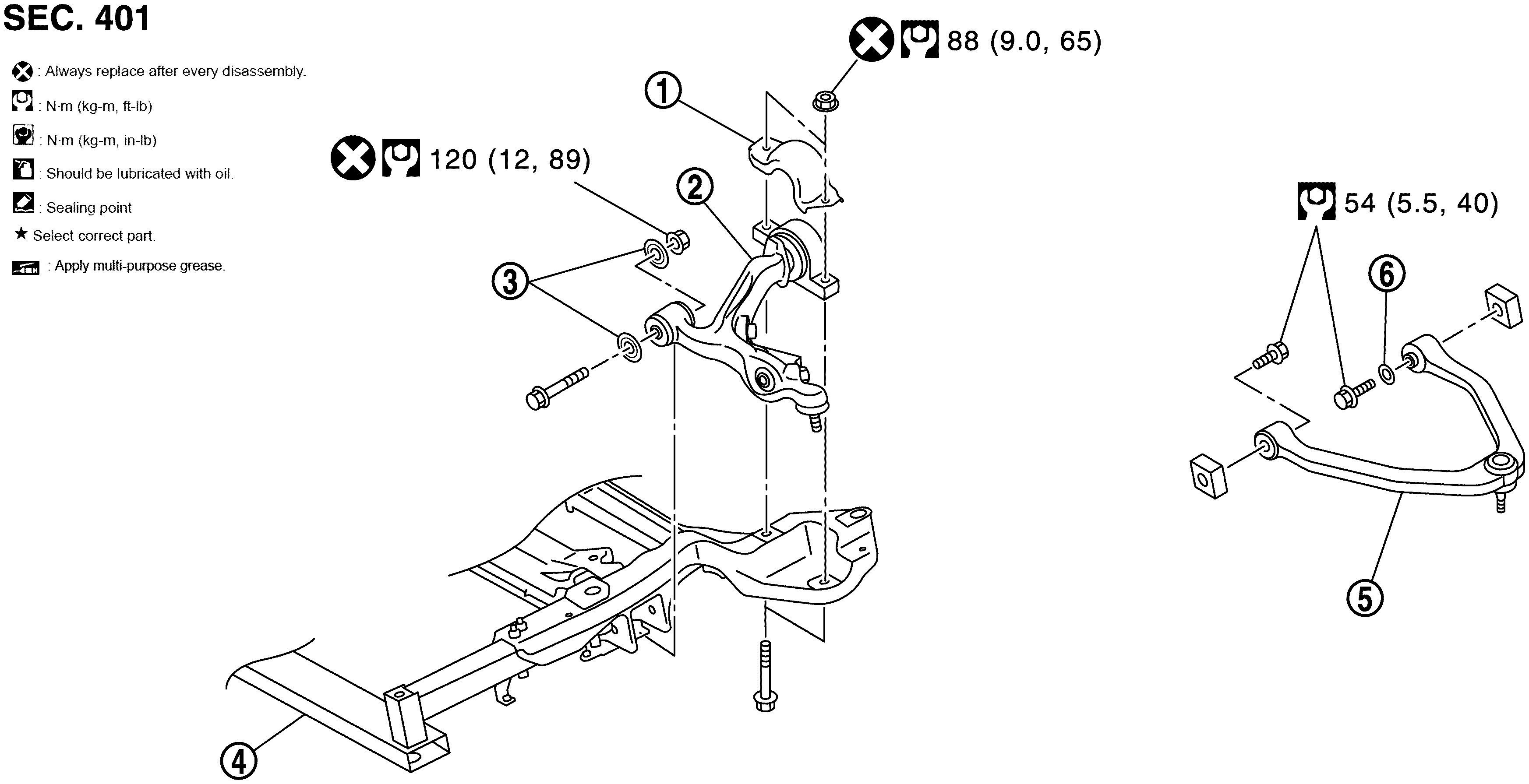

Fig 1: Transverse Link With Torque Specifications
GNSJPEIA0266GB-266Courtesy of NISSAN NORTH AMERICA, INC.

1.

Insulator (VK56VD)

2.

Transverse Link

3.

Stopper Bushing

4.

Front Suspension Member

5.

Upper Link

6.

Stopper rubber

Refer to Components for symbols in the figure.
