Exploded View

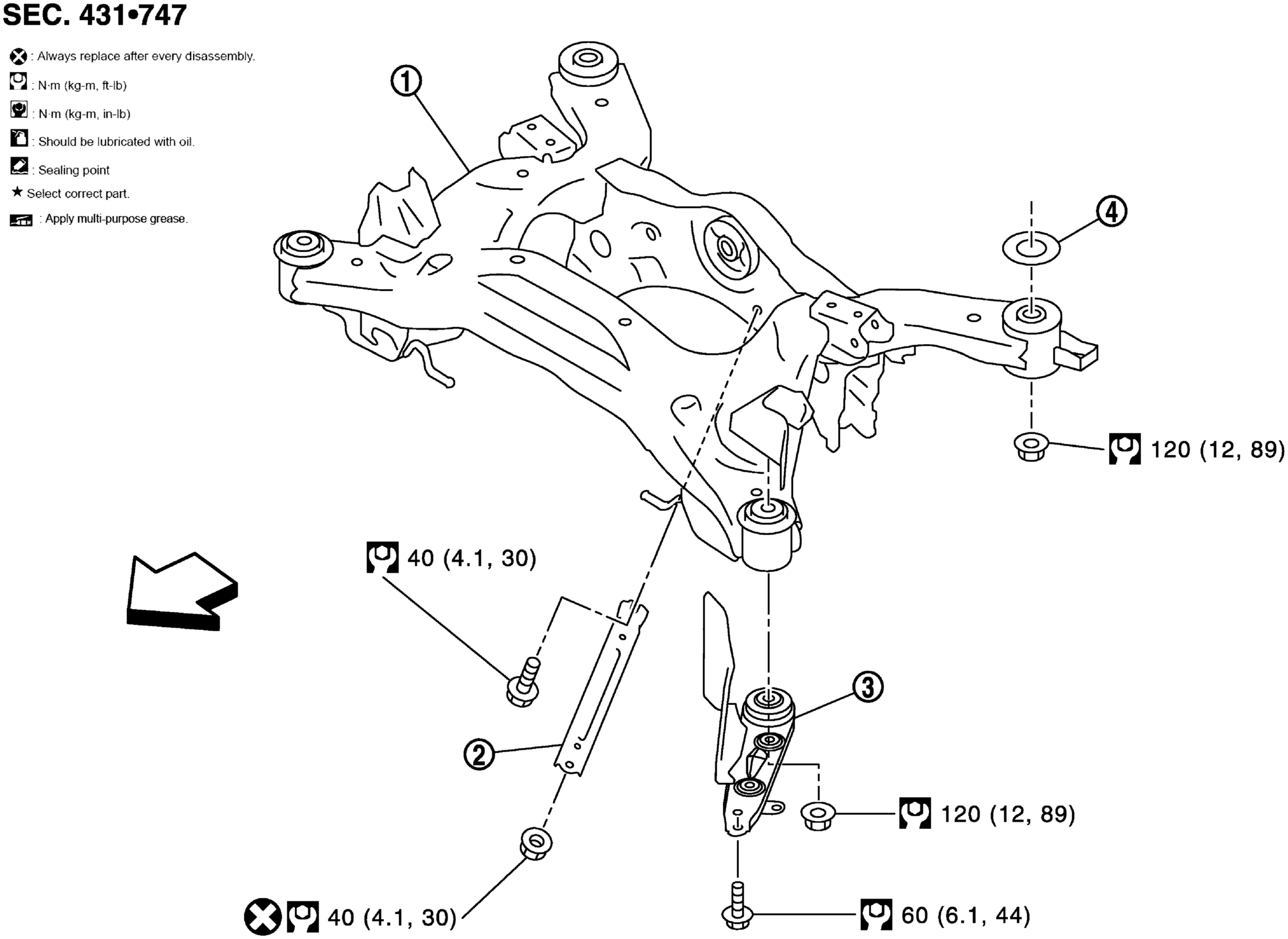

Fig 1: Rear Suspension Assembly With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Rear suspension member	2.	Member stay	3.	Rear suspension member stay
4.	Mount stopper
: Vehicle front
Refer to Components for symbols in the figure.
