Exploded View

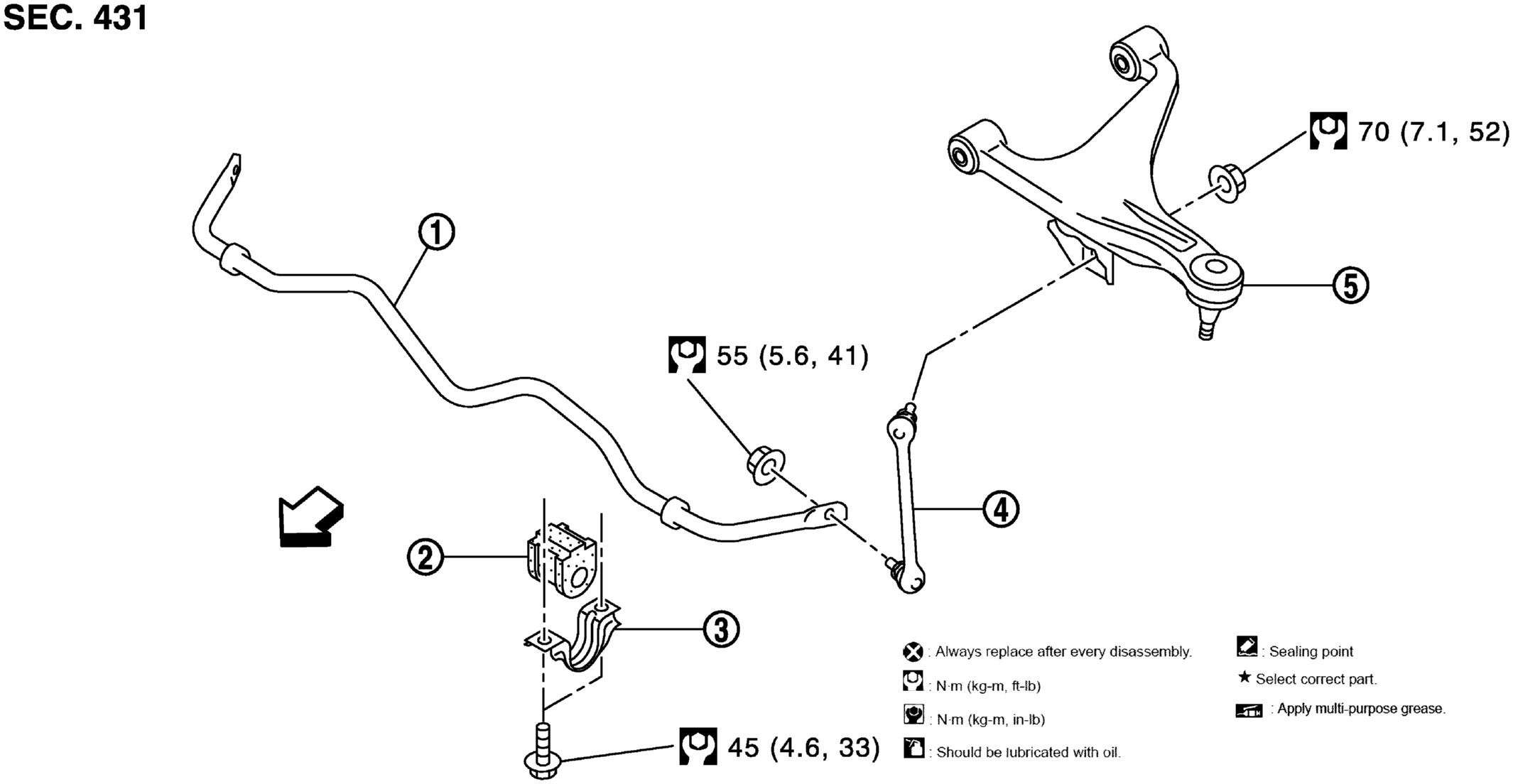

Fig 1: Rear Stabilizer With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Stabilizer bar	2.	Bushing	3.	Stabilizer clamp
4.	Stabilizer connecting rod	5.	Suspension arm
: Vehicle front
Refer to Components for symbols in the figure.
