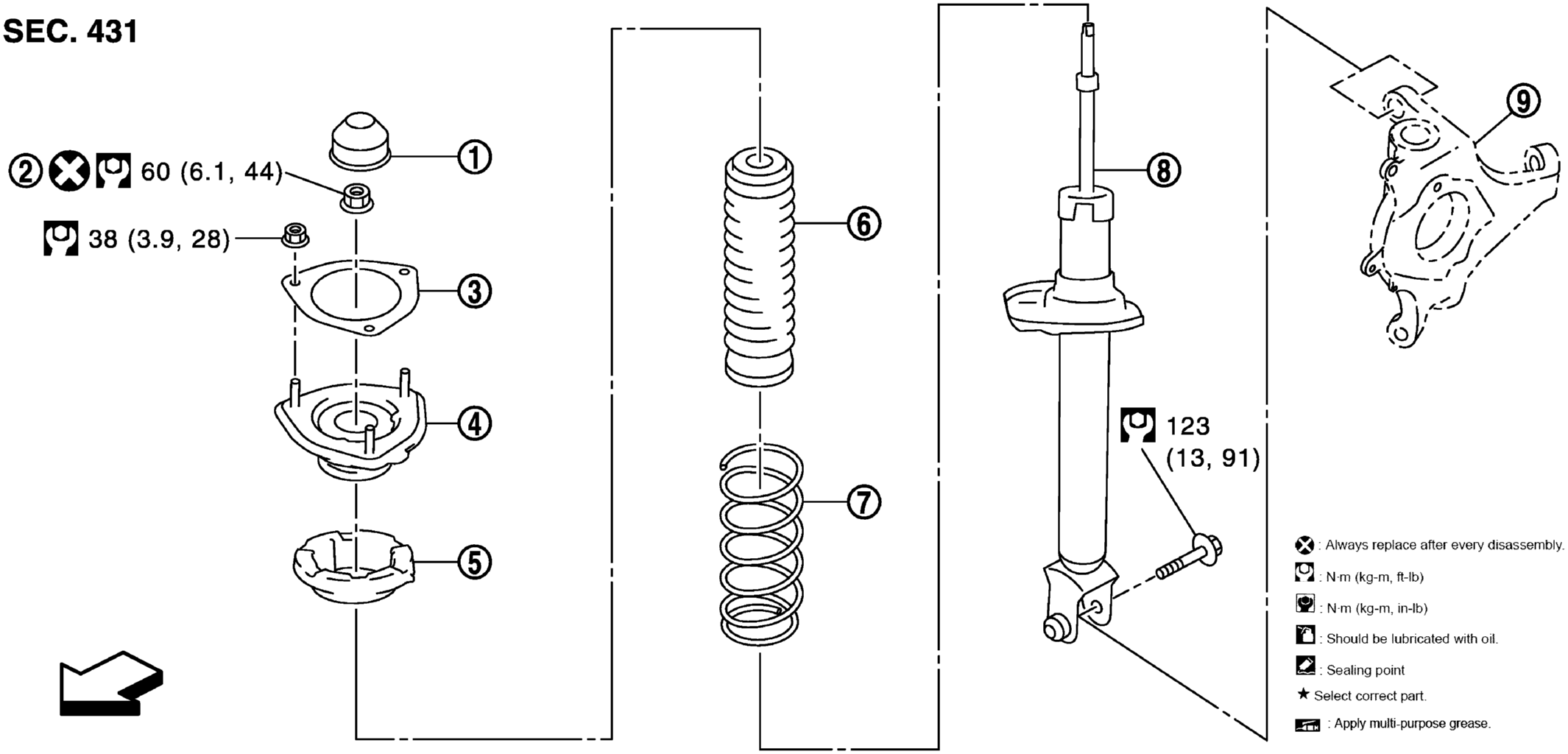

Exploded View
|
1. |
Cap |
2. |
Piston rod lock nut |
3. |
Gasket |
|
4. |
Mounting insulator |
5. |
Rubber seat |
6. |
Bound bumper |
|
7. |
Coil spring |
8. |
Shock absorber |
9. |
Axle housing |
|
|
|||||
|
Refer to Components for symbols in the figure. |
|||||
