Wheel Alignment: Adjustment: Camber

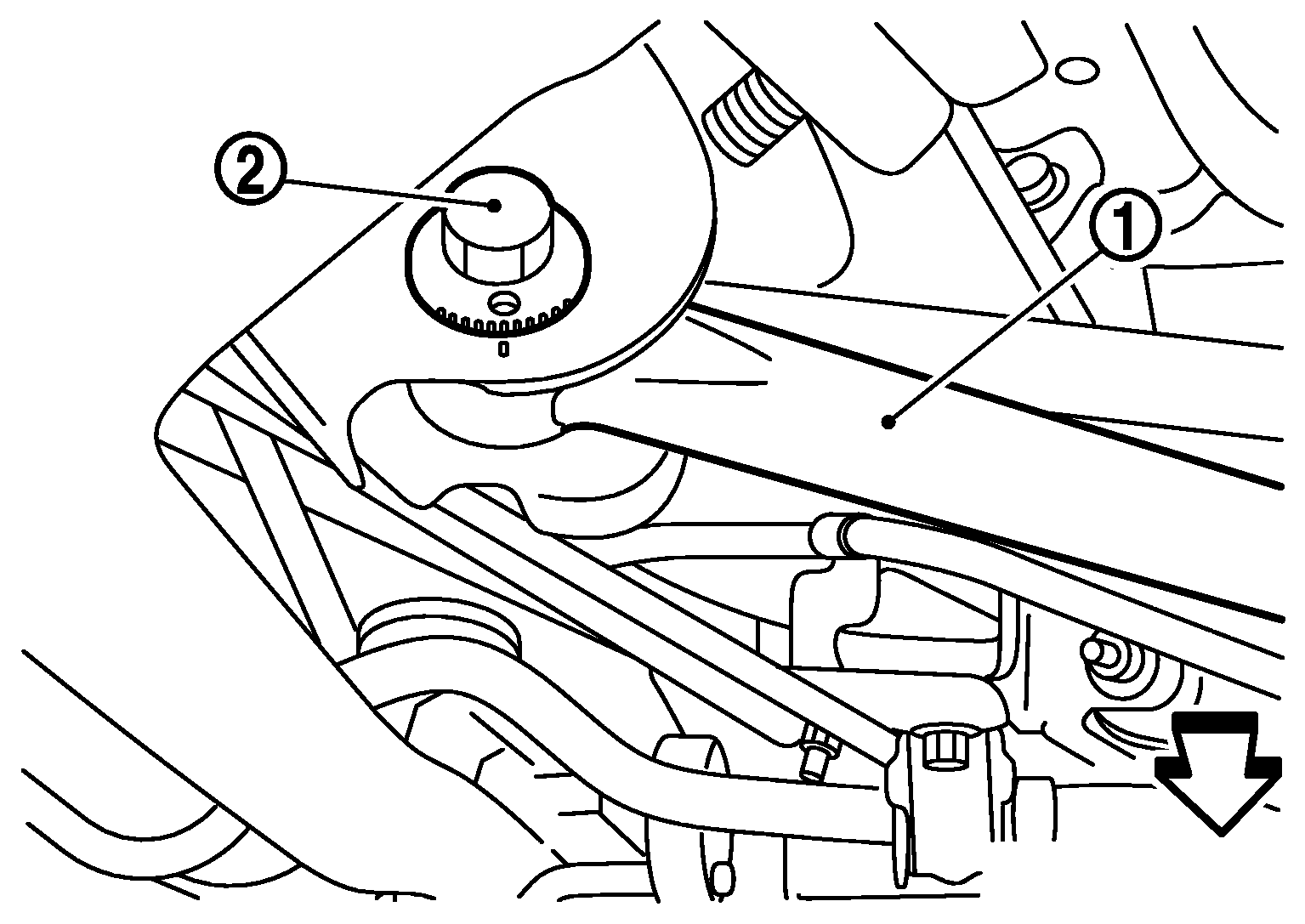

If camber is exceeds the standard value, adjust with adjusting bolt (2) in rear lower link (1).

Courtesy of NISSAN NORTH AMERICA, INC.

: Vehicle front

Camber: Refer to Wheel Alignment .

CAUTION: After adjusting camber, be sure to check toe-in.
- If camber is not still within the specification, inspect and replace any damaged or worn suspension parts.
