Component Part

Check the mounting conditions (looseness, backlash) of each component and component conditions (wear, damage) are normal.

Ball Joint Axial End Play

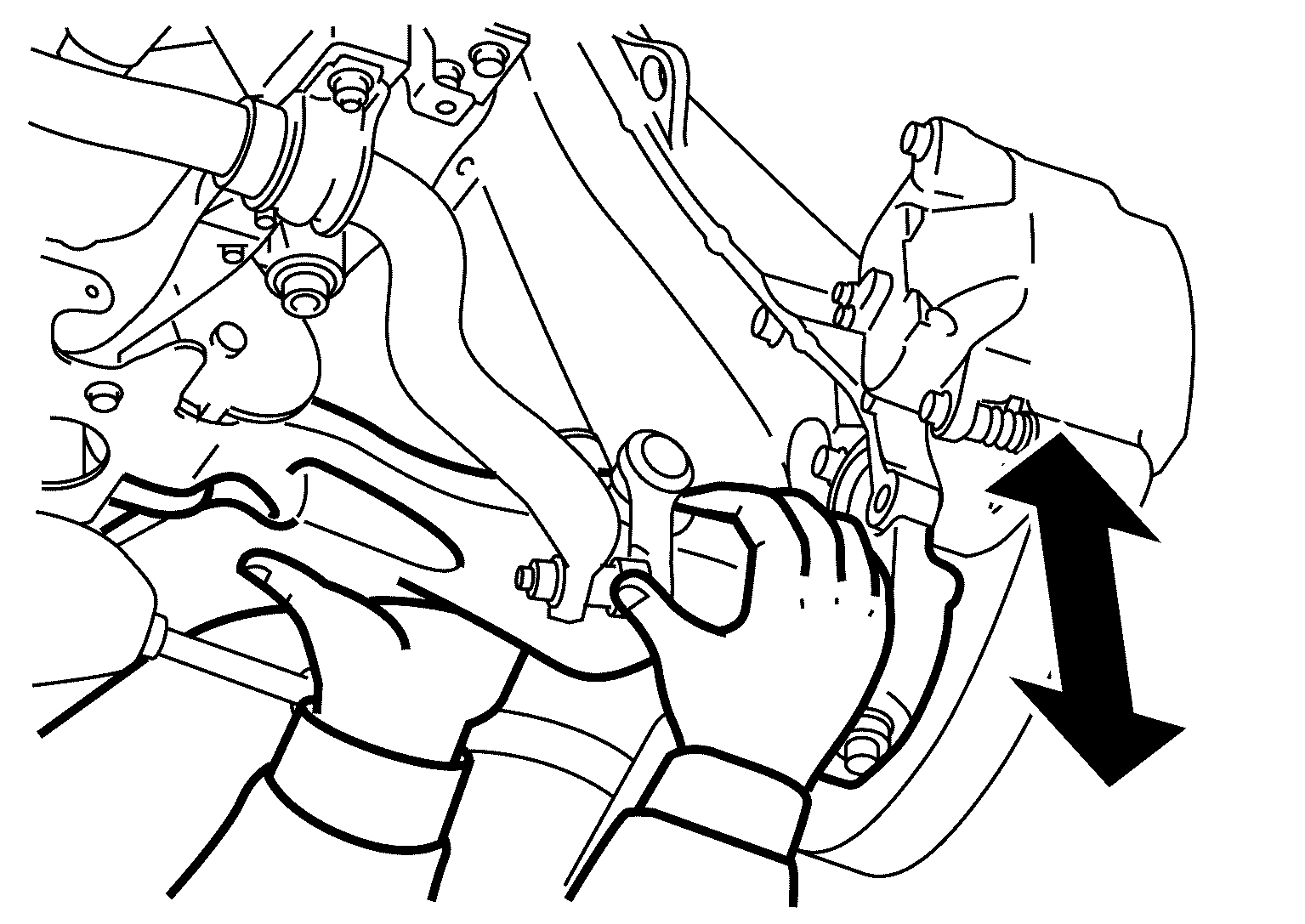

Move axle side of suspension arm in the axial direction by hand. Check there is no end play.

GNSJSEIA0444Z-444

Courtesy of NISSAN NORTH AMERICA, INC.

Axial end play

: Refer to Ball Joint .

CAUTION:

Never depress brake pedal when measuring.
Never perform with tires on level ground.
Be careful not to damage ball joint boot. Never damage the installation position by applying excessive force.
