Exploded View

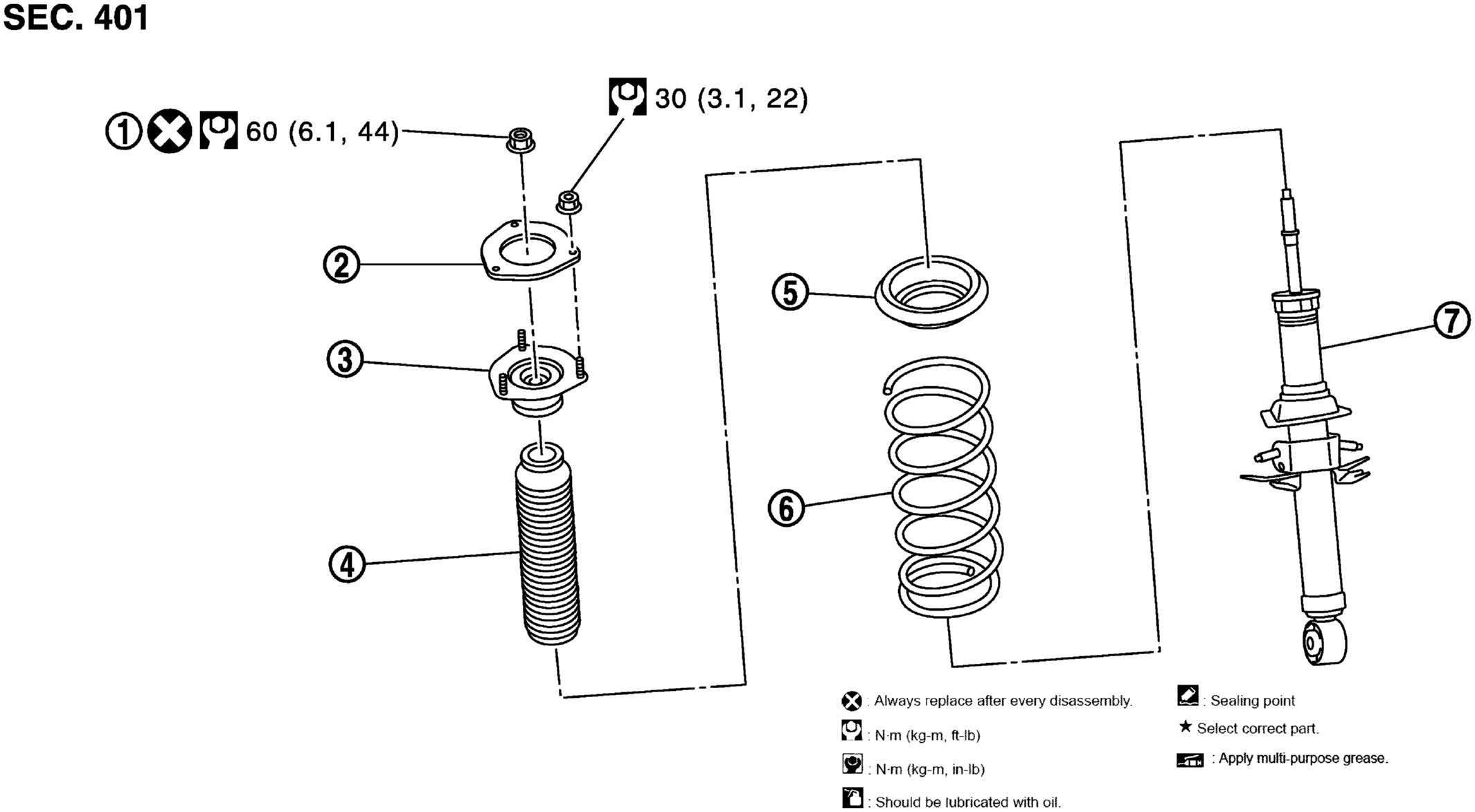

Fig 1: Front Coil Spring And Shock Absorber With Torque Specifications
GNSJPEIA0204GB-204Courtesy of NISSAN NORTH AMERICA, INC.

1.

Piston rod lock nut

2.

Mounting seal

3.

Shock absorber mounting bracket

4.

Bound bumper

5.

Rubber seat

6.

Coil spring

7.

Shock absorber

Refer to Components for symbols in the figure.
