Disassembly and Assembly: Assembly

CAUTION: Never damage shock absorber piston rod when installing components from shock absorber.

Install shock absorber attachment [SST: ST35652000 (-)] to shock absorber and secure it in a vise.
CAUTION: When installing the shock absorber attachment to shock absorber, wrap a shop cloth around shock absorber to protect it from damage.

Compress coil spring using a spring compressor (commercial service tool), and install it onto shock absorber.

CAUTION:

Install with the large-diameter side (A) facing up and the small-diameter side (B) facing down.

Courtesy of NISSAN NORTH AMERICA, INC.

Be sure a spring compressor is securely attached to coil spring. Compress coil spring.

Insert bound bumper into shock absorber mounting bracket, and then install it to shock absorber together with rubber seat.

Courtesy of NISSAN NORTH AMERICA, INC.

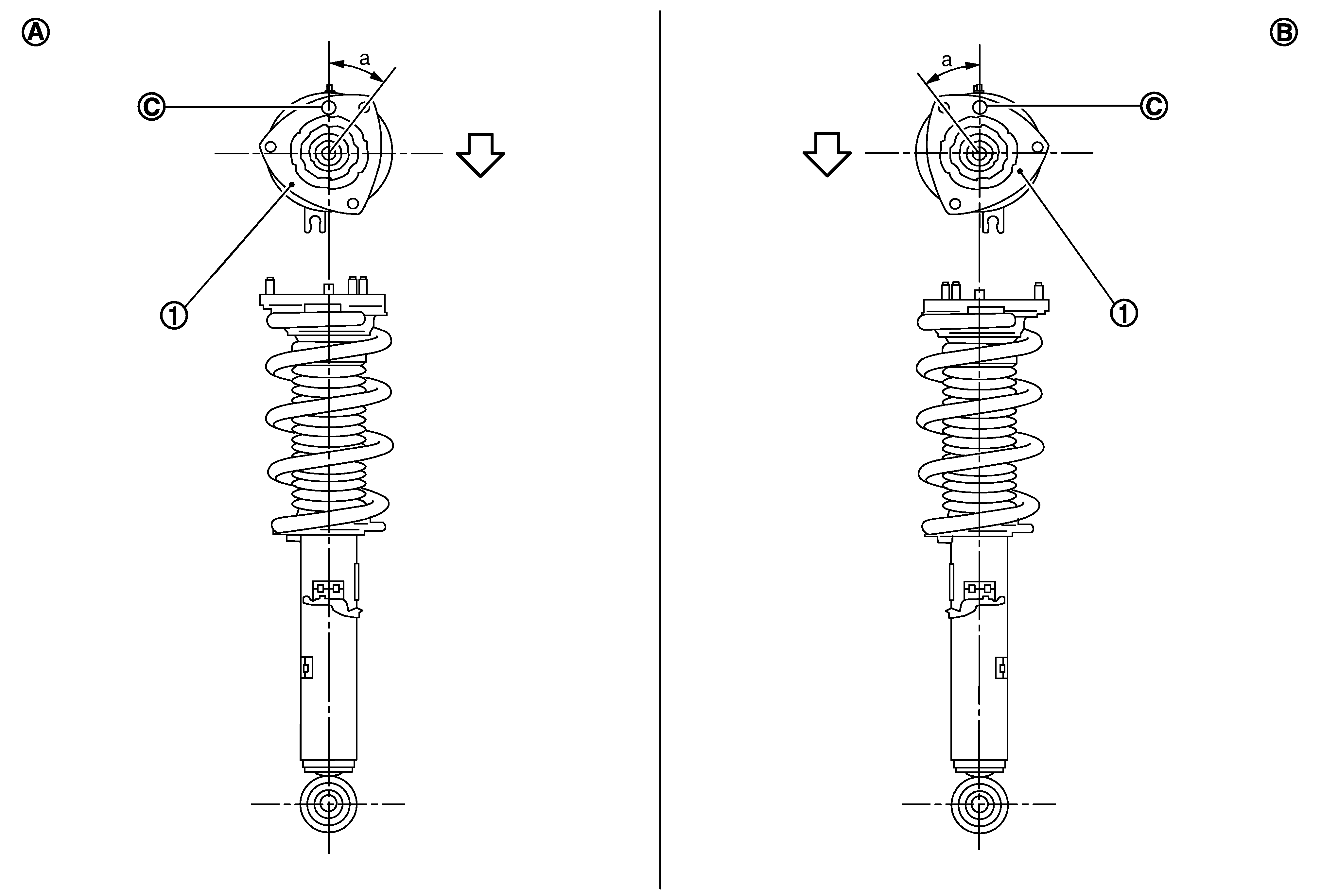

1. Shock absorber mounting bracket
A. Right side	B. Left side	C. Coil spring lower end position
: Vehicle front

Install the shock absorber mounting bracket as shown in the figure, above.

Angle (a)

: 35.4°

Check that the lower end of the coil spring (C) is positioned at the spring lower seat of the shock absorber.

Secure piston rod tip so that piston rod does not turn, then tighten piston rod lock nut with specified torque.
CAUTION: Never reuse piston rod lock nut.
Gradually release a spring compressor (commercial service tool), and remove coil spring.
CAUTION: Loosen while making sure coil spring attachment position does not move.
Remove the shock absorber attachment [SST: ST35652000 (-)] from shock absorber.
Install the mounting seal to shock absorber mounting bracket.
