Removal and Installation: Removal

  1. Remove the driver air bag module. Refer to Removal and Installation .
  2. Remove the steering wheel. Refer to Removal and Installation .
  3. Remove the steering column cover. Refer to Removal and Installation .
  4. Disconnect harness connectors (A).

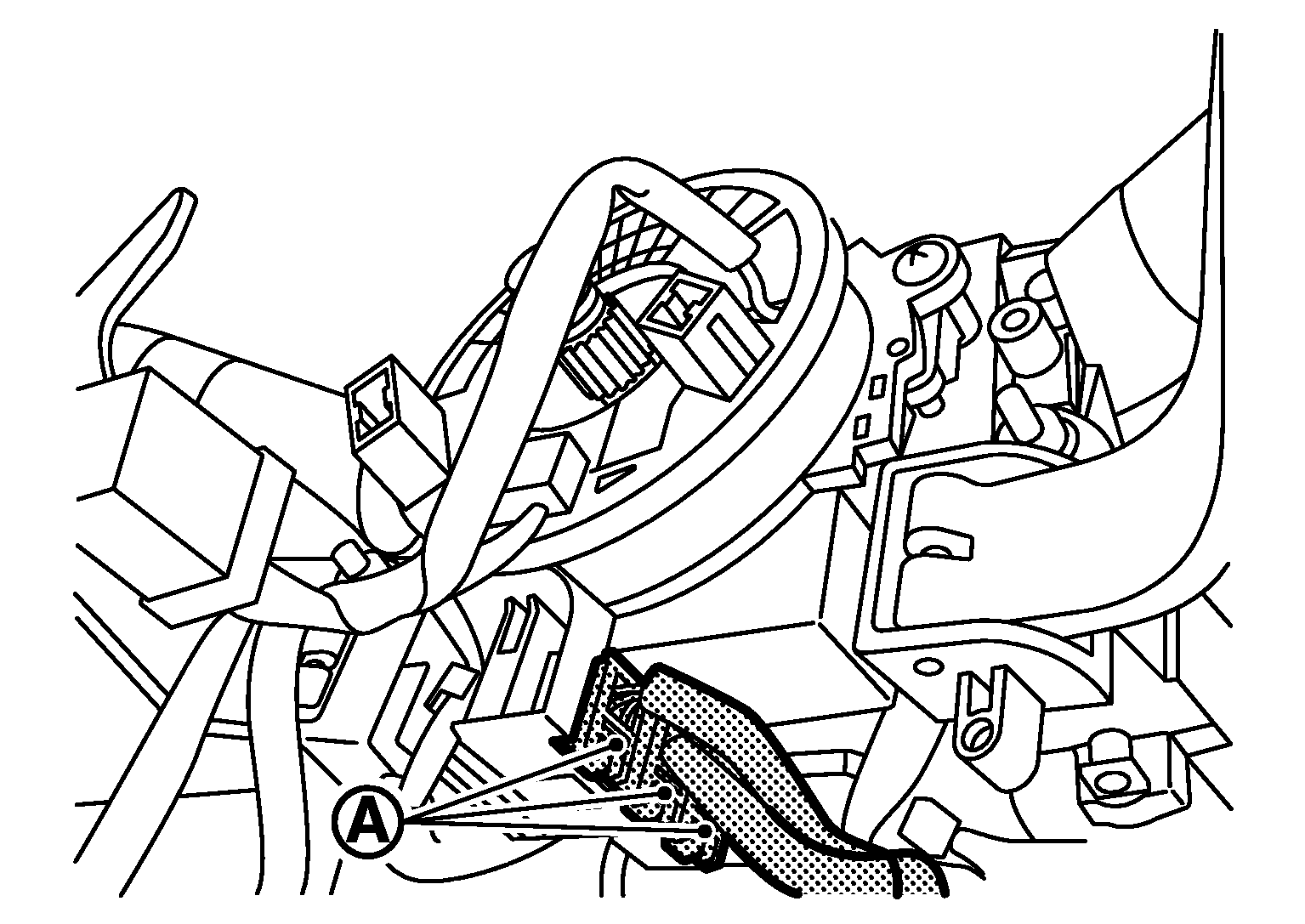

    GNSJMHIA1514Z-514Courtesy of NISSAN NORTH AMERICA, INC.
  5. Remove the spiral cable mounting screws.
  6. Remove the spiral cable fixing pawls with flat-bladed screwdriver.

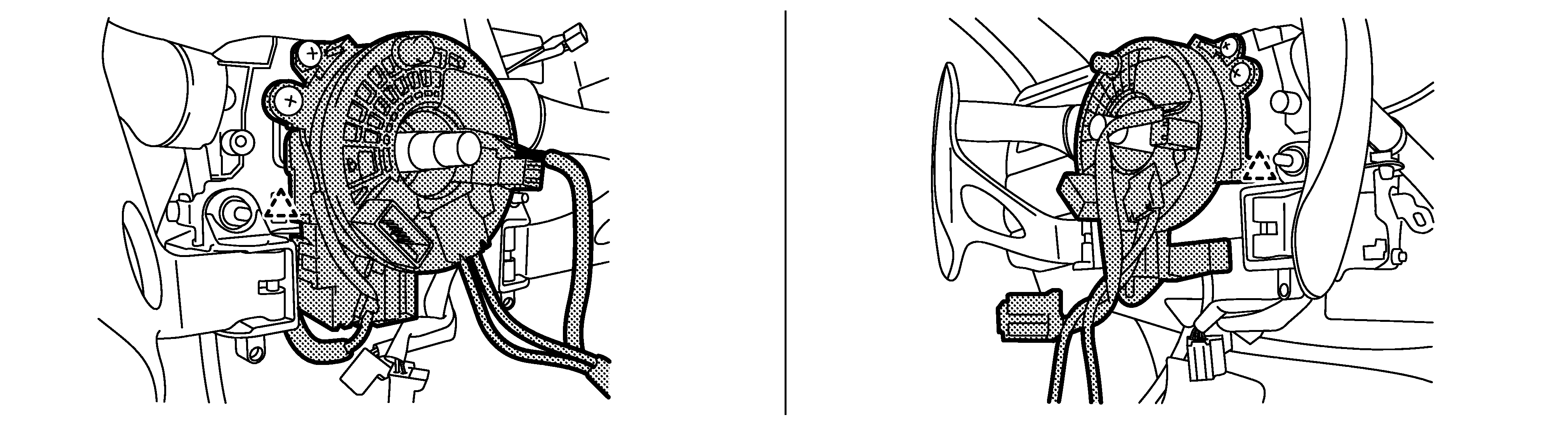

    GNSJMHIA1516Z-516Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Remove pawls slowly so that they are not damaged.

    SYMBOL

    : Pawl
  7. Pull spiral cable and steering angle sensor as a set toward the vehicle rear.
  8. Disconnect harness connector (A).

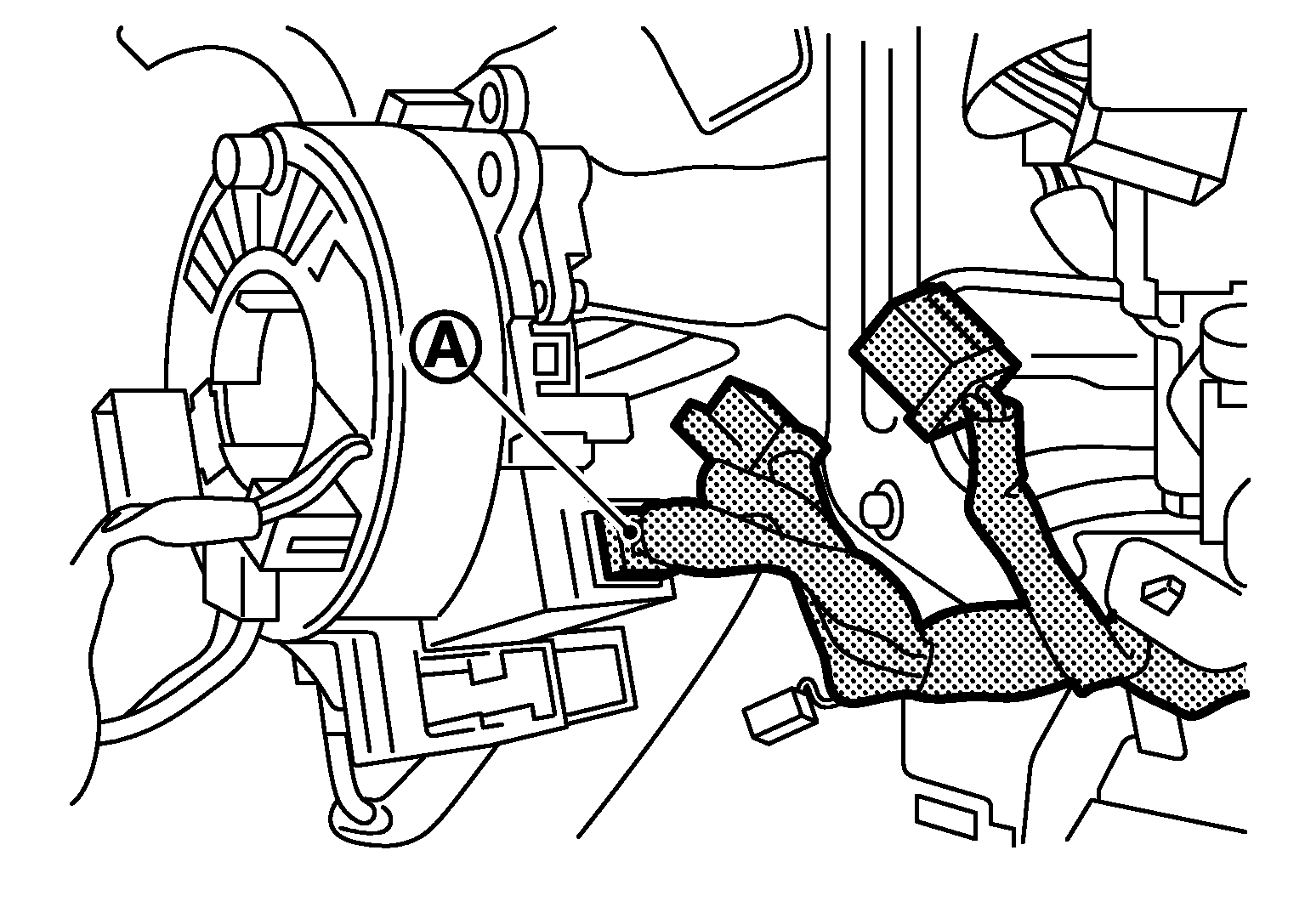

    GNSJMHIA1515Z-515Courtesy of NISSAN NORTH AMERICA, INC.
  9. Remove the steering angle sensor. Refer to Removal and Installation .
CAUTION:
  • Never impact the spiral cable.
    GNSJMHIA09Z-009Courtesy of NISSAN NORTH AMERICA, INC.
  • Replace the spiral cable if it is dropped or sustains an impact.
  • Never disassemble the spiral cable.
  • Never apply lubricant to the spiral cable.
  • Never allow oil, grease, detergent, or water to come in contact with the spiral cable.
