Removal and Installation: Installation
Note the following items, and then install in the reverse order of removal.
CAUTION:
- The spiral cable may snap during steering operation if the cable is installed in an improper position.
The neutral position is set as per the following.

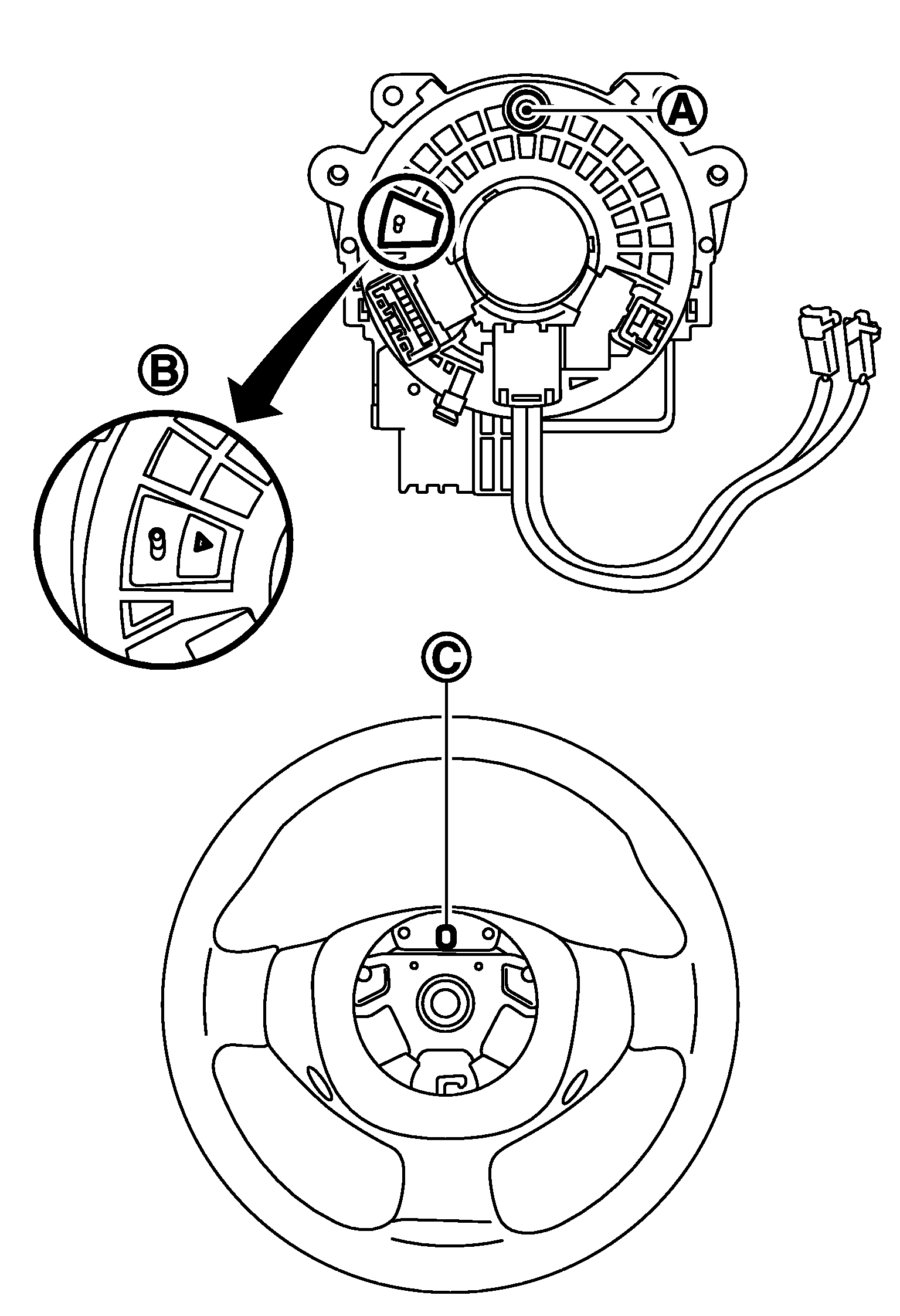

- Carefully turn the spiral cable clockwise to the end position. Then turn it counterclockwise (about 2 and a half turns) and stop turning at the mark (B) when the stopper insertion holes are in the same position.
- The service part is installed in the neutral position by the stopper and can be set without adjusting after the stopper is removed.
- Never over turn the spiral cable or go beyond the number of turns required. (This causes the cable to snap)
- Adjust the spiral cable locating pin (A) to the steering wheel locating pin hole (C).
- Fix the driver air bag module harnesses to the harness fixing hook (A).
- If malfunction is detected by the air bag warning lamp, after repair or replacement of the malfunctioning parts, reset the memory using self-diagnosis or CONSULT. Refer to On Board Diagnosis Function or CONSULT Function .
- After the work is completed, check that no system malfunction is detected by air bag warning lamp.
