Removal and Installation: Removal

Remove the instrument panel assembly. Refer to Removal and Installation .

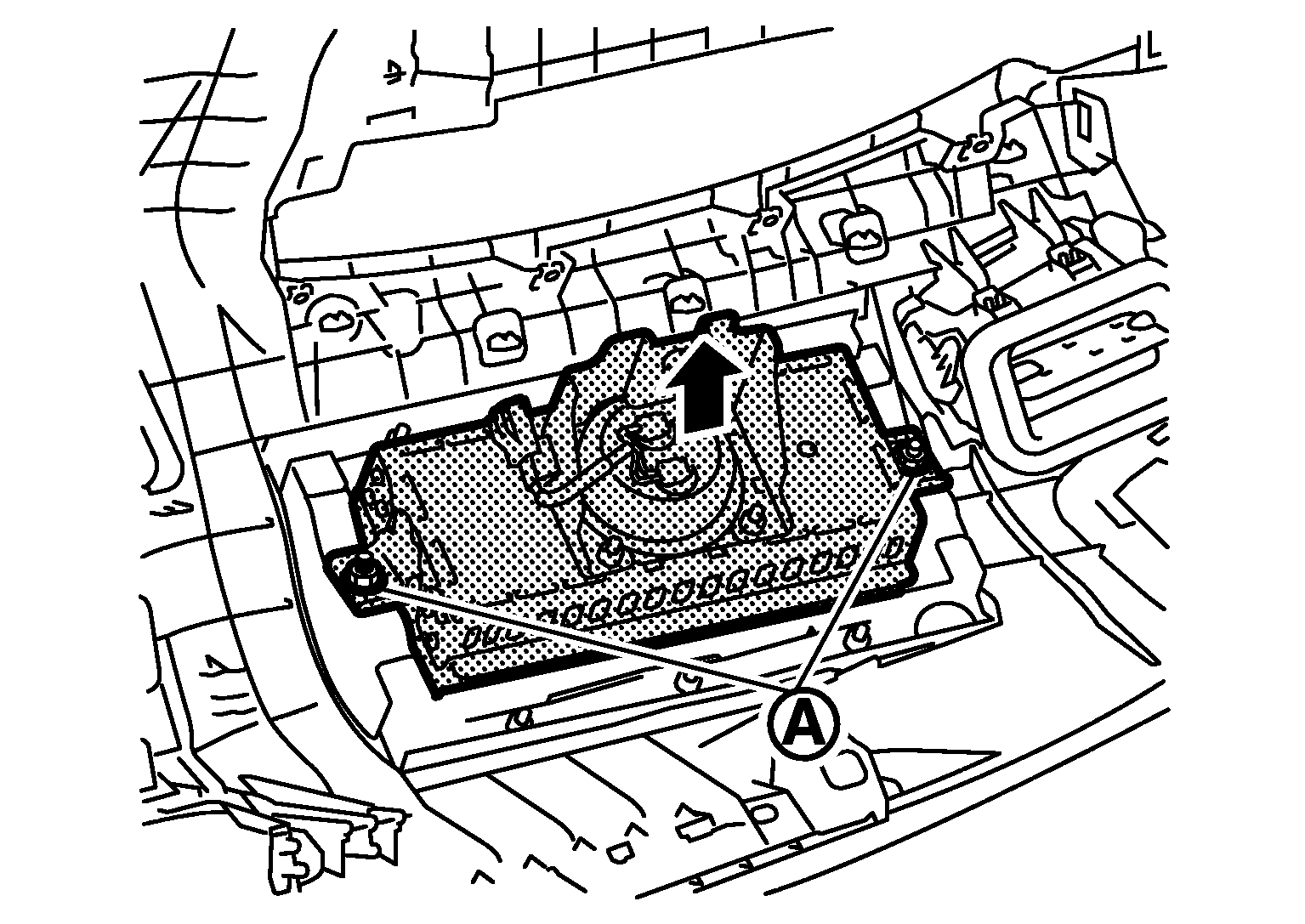

Remove the passenger air bag module fixing nuts (A).

Courtesy of NISSAN NORTH AMERICA, INC.
Remove the passenger air bag module from instrument panel assembly.

CAUTION:

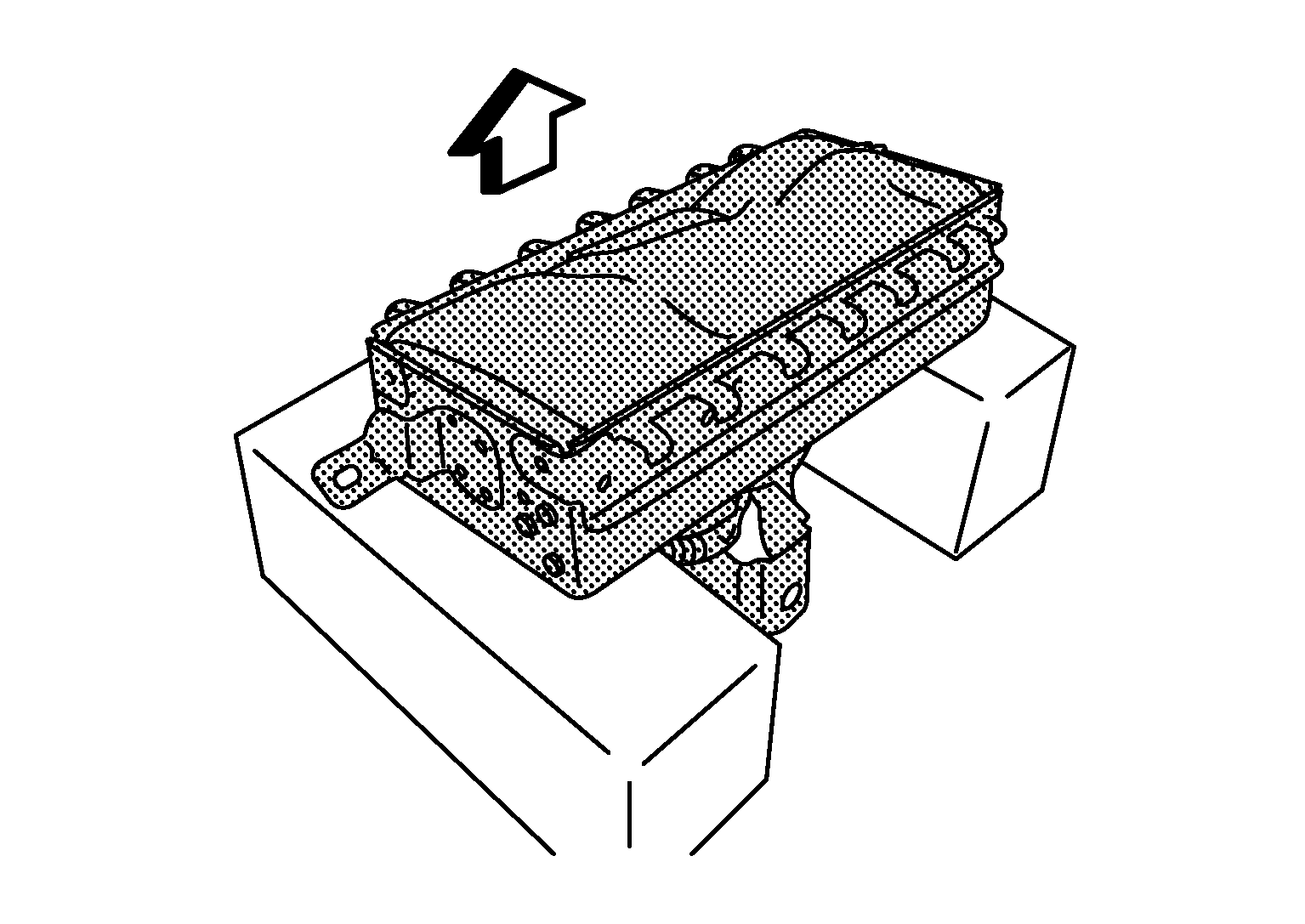

Always place the passenger air bag module with pad side facing upward.

GNSJMHIA0661Z-661

Courtesy of NISSAN NORTH AMERICA, INC.

: Upward

Never impact the passenger air bag module.

GNSJMHIA09Z-009

Courtesy of NISSAN NORTH AMERICA, INC.

Replace the passenger air bag module if it has been dropped or sustained an impact.
Never insert any foreign objects (screwdriver, etc.) into the passenger air bag module.
Never disassemble the passenger air bag module.
Never expose the passenger air bag module to temperatures exceeding 90 deg. C (194 deg. F).
Never allow oil, grease, detergent, or water to come in contact with the passenger air bag module.
