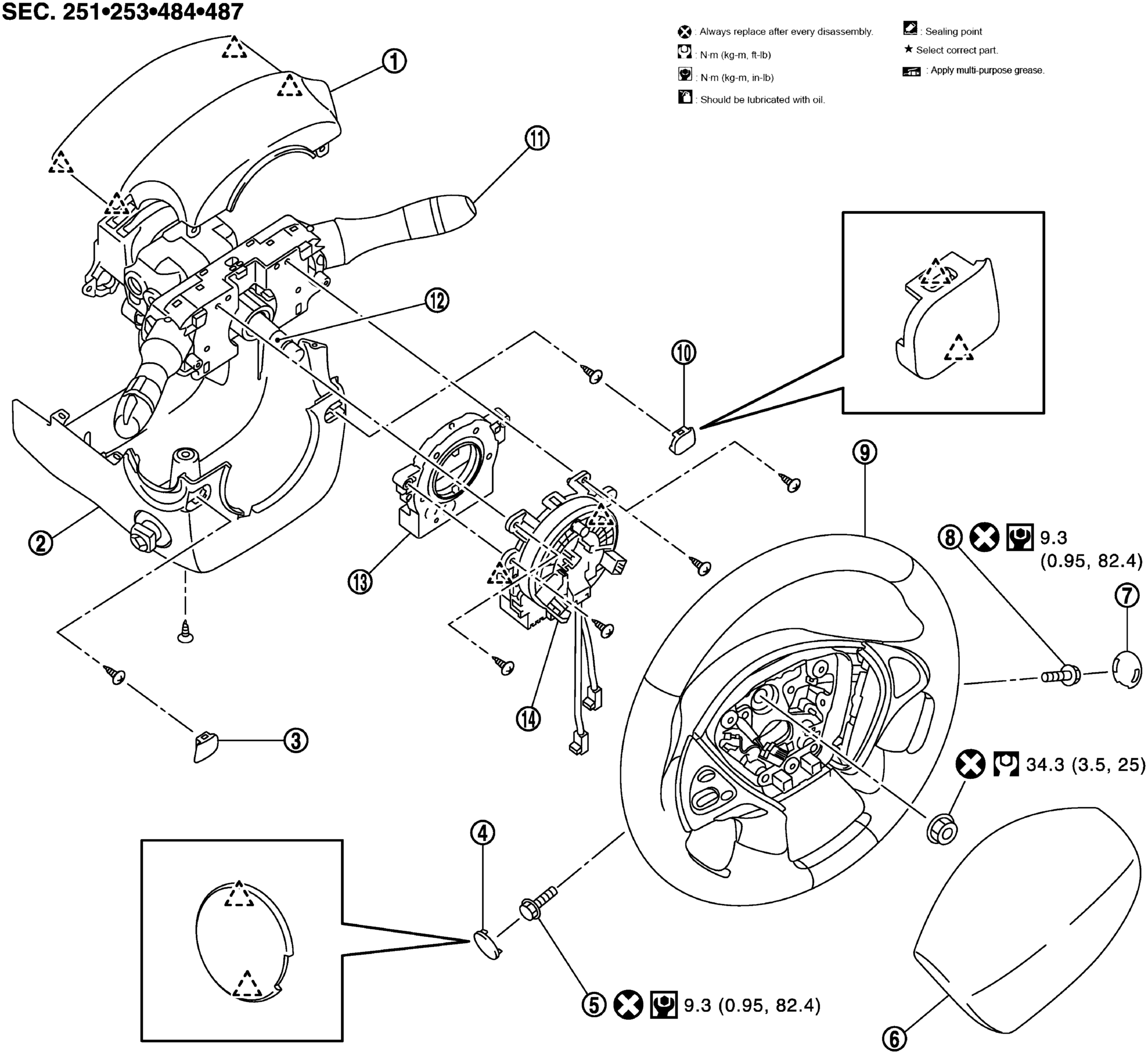

Exploded View
|
1. |
Steering column upper cover |
2. |
Steering column lower cover |
3. |
Steering column mask LH |
|
4. |
Side lid LH |
5. |
TORX bolt |
6. |
Driver air bag module |
|
7. |
Side lid RH |
8. |
TORX bolt |
9. |
Steering wheel |
|
10. |
Steering column mask RH |
11. |
Combination switch |
12. |
Steering column assembly |
|
13. |
Steering angle sensor |
14. |
Spiral cable |
||
|
|
: Pawl |
||||
|
|
: Always replace after every disassembly. |
||||
|
|
: N.m (kg-m, ft-lb) |
||||
|
|
: N.m (kg-m, in-lb) |
||||
