Exploded View

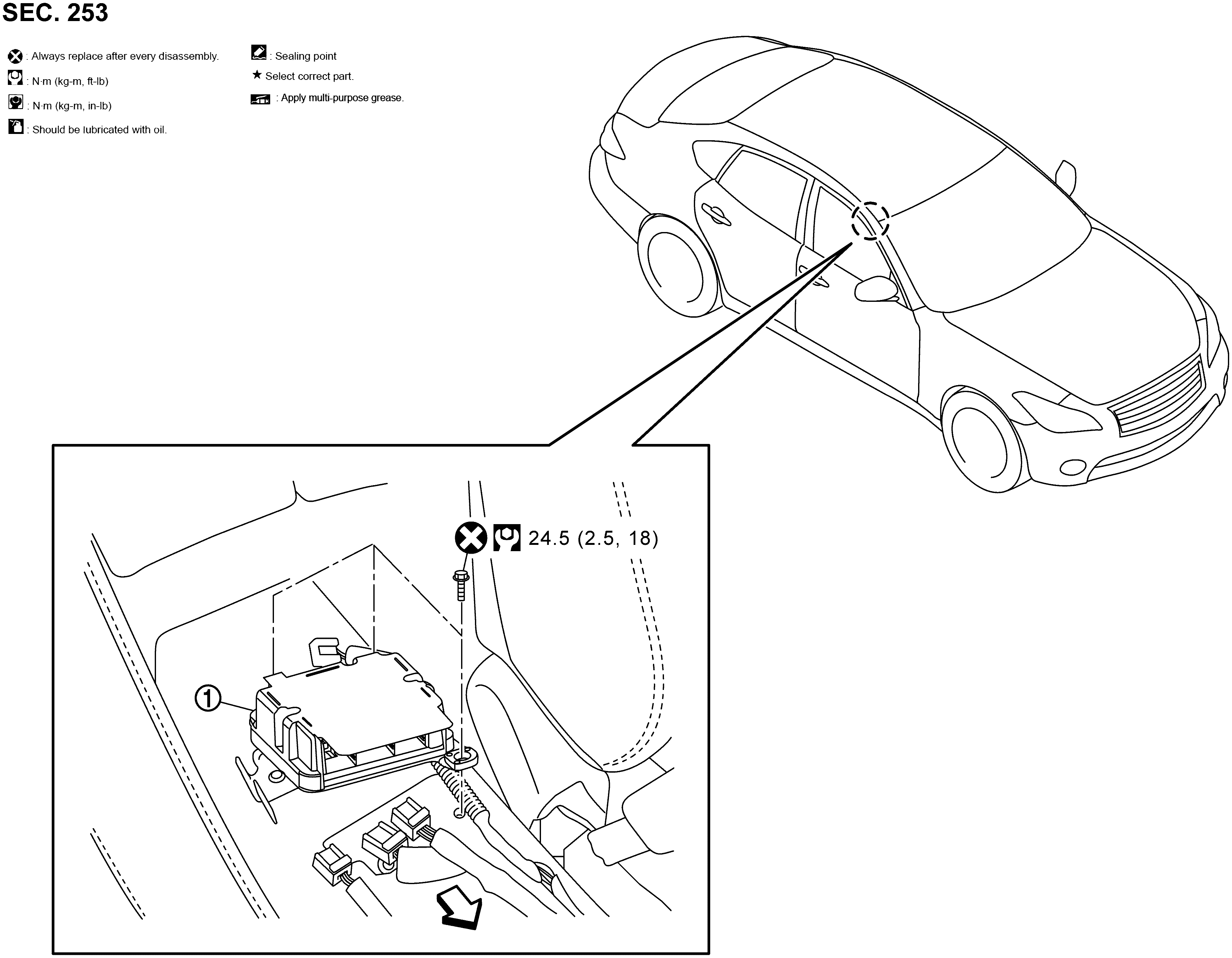

Fig 1: Diagnosis Sensor Unit With Torque Specifications
GNSJSHIA0174GB-174Courtesy of NISSAN NORTH AMERICA, INC.

1.

Diagnosis sensor unit

SYMBOL

: Vehicle front

SYMBOL

: Always replace after every disassembly.

SYMBOL

: N.m (kg-m, ft-lb)
