Exploded View

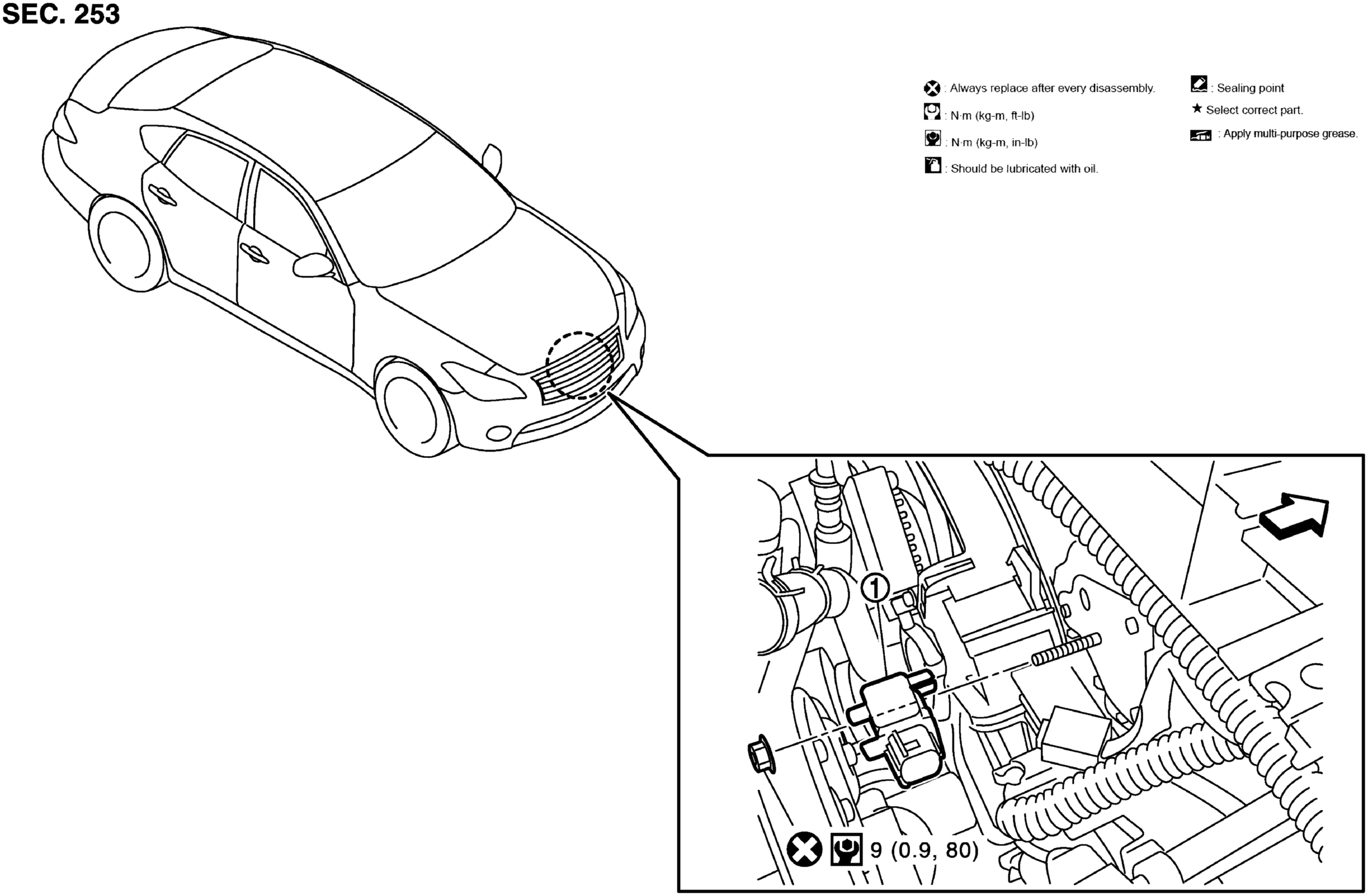

GNSJMHIA1519GB-519Courtesy of NISSAN NORTH AMERICA, INC.

1.

Crash zone sensor

SYMBOL

: Vehicle front

SYMBOL

: Always replace after every disassembly.

SYMBOL

: N.m (kg-m, in-lb)
