Exploded View

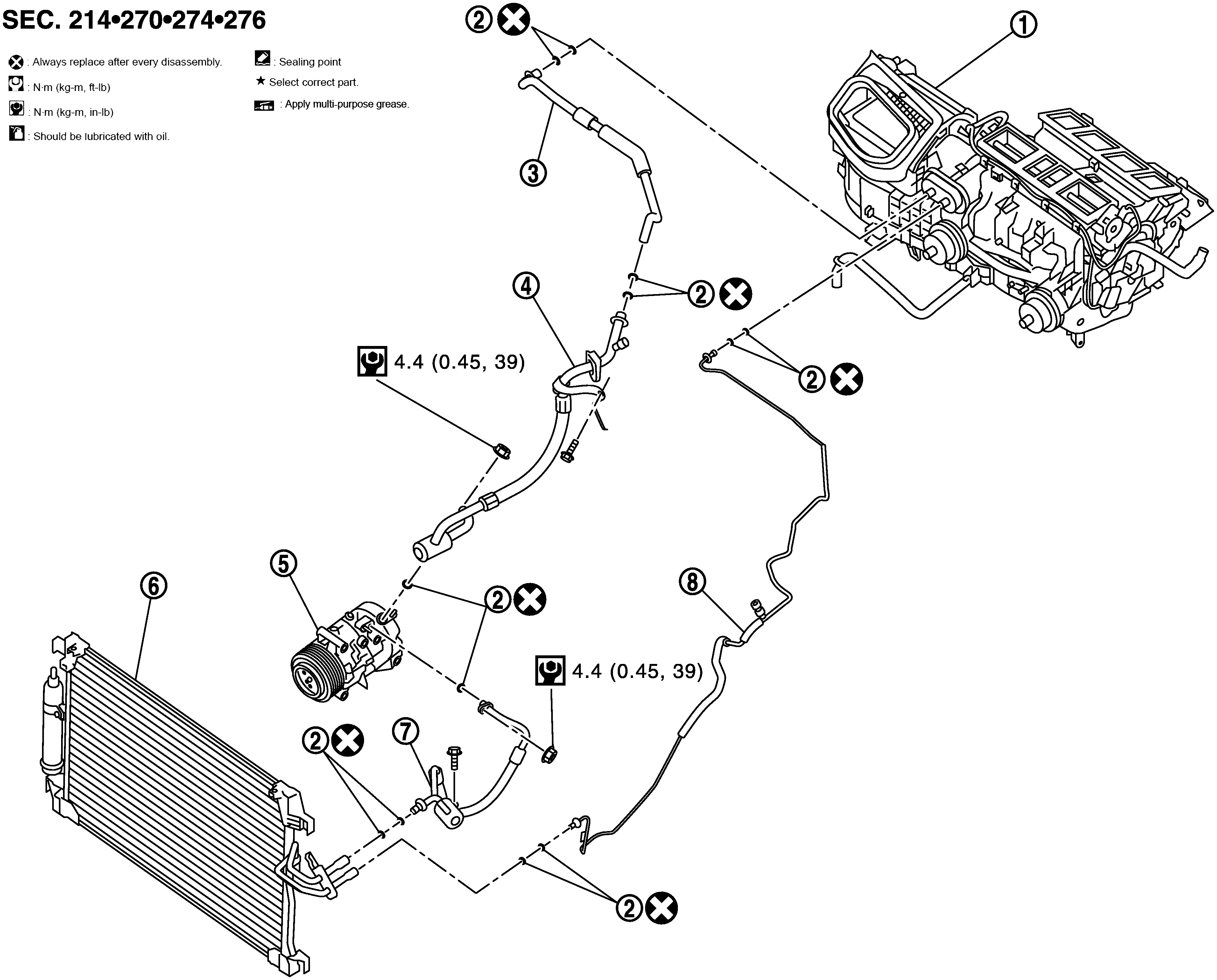

Fig 1: VQ37VHR

GNSJMIIA0678GB-678

Courtesy of NISSAN NORTH AMERICA, INC.

1.	A/C unit assembly	2.	O-ring	3.	Low-pressure pipe 1
4.	Low-pressure flexible hose	5.	Compressor	6.	Condenser assembly
7.	High-pressure flexible hose	8.	High-pressure pipe
	: Always replace after every disassembly.
	: N.m (kg-m, in-lb)

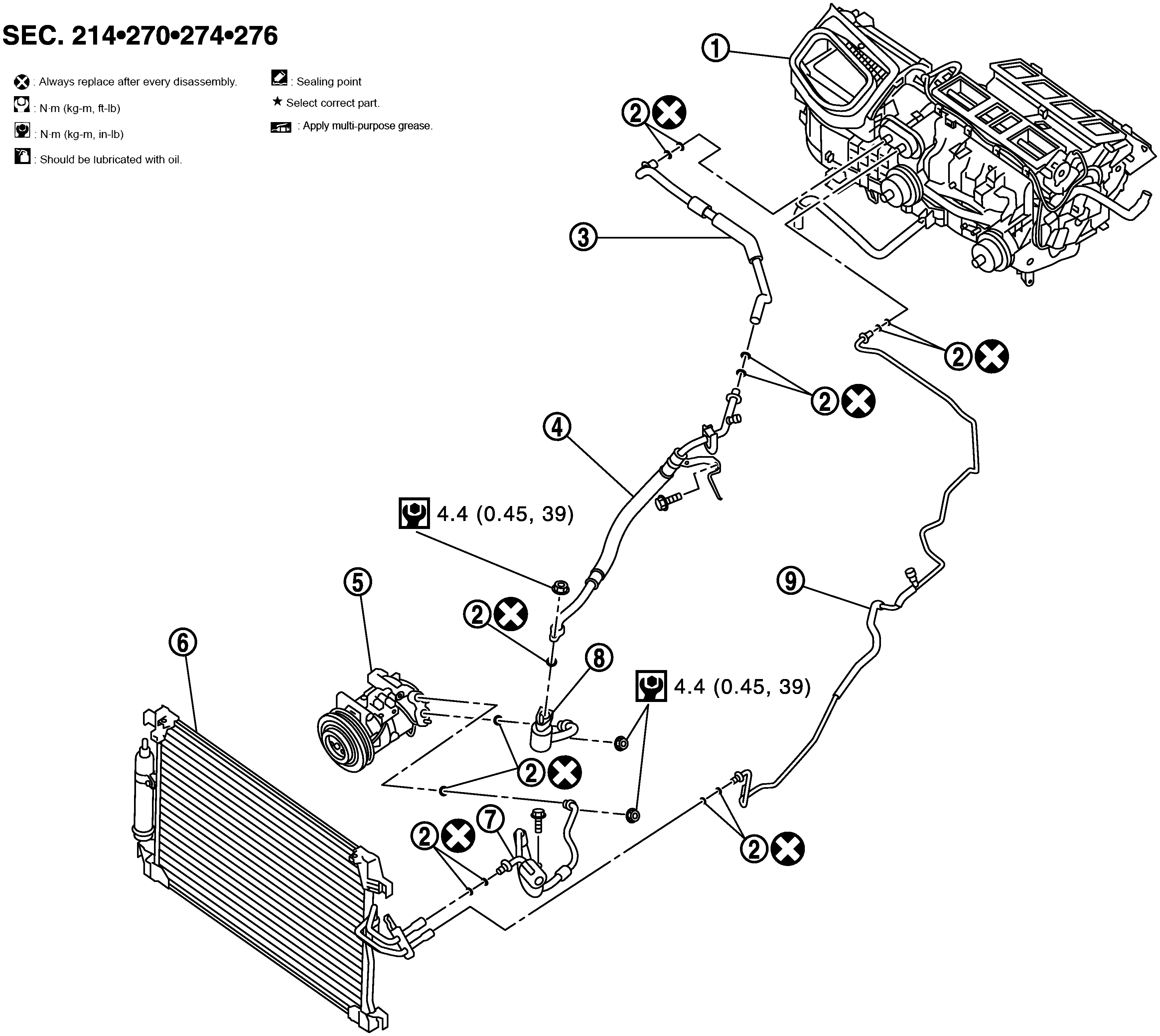

Fig 2: VK56VD

GNSJMIIA0679GB-679

Courtesy of NISSAN NORTH AMERICA, INC.

1.	A/C unit assembly	2.	O-ring	3.	Low-pressure pipe 1
4.	Low-pressure flexible hose	5.	Compressor	6.	Condenser assembly
7.	High-pressure flexible hose	8.	Low-pressure pipe 2	9.	High-pressure pipe
	: Always replace after every disassembly.
	: N.m (kg-m, in-lb)
