Exploded View

WARNING: This page is about a different variant/trim than selected.

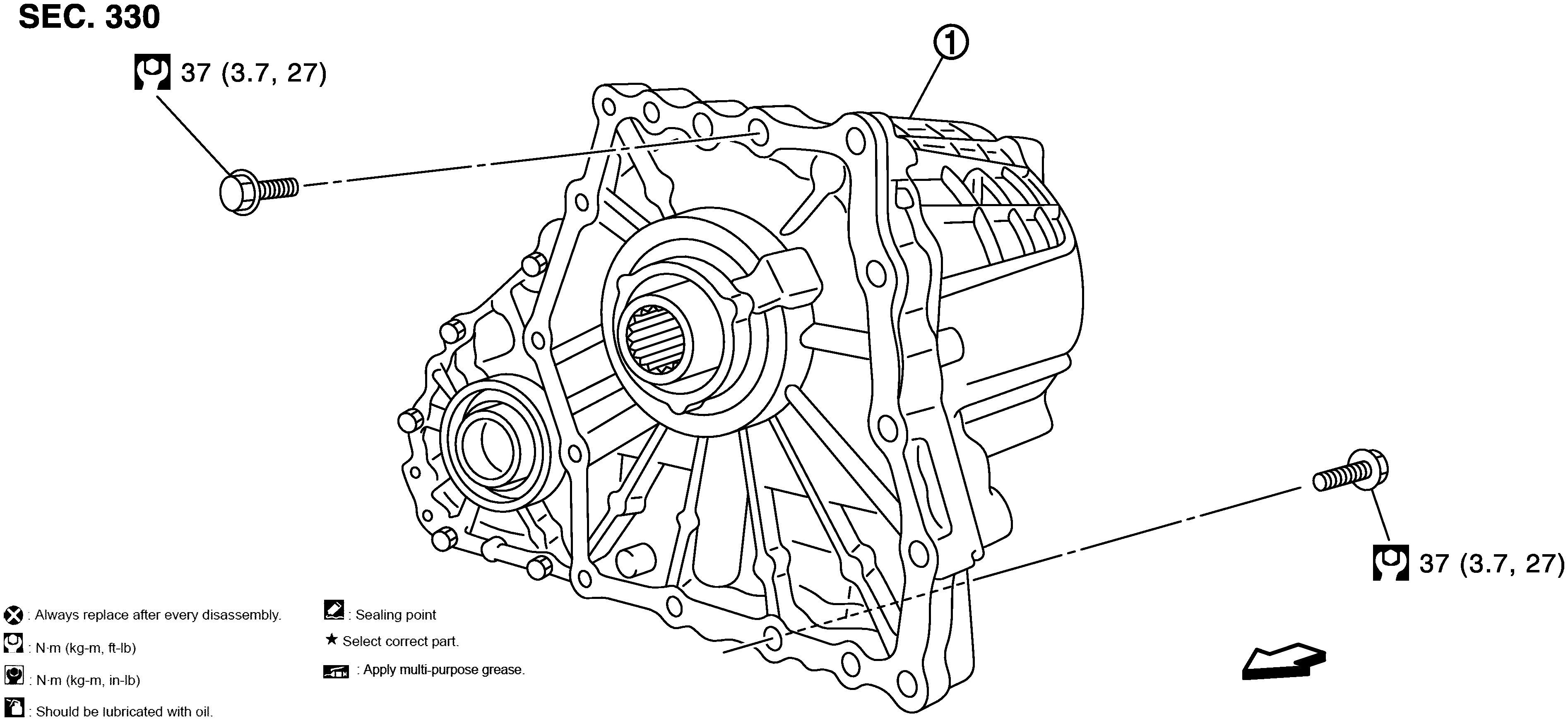

Fig 1: Transfer Assembly 5.6L With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Transfer assembly

: Vehicle front
Refer to Components for symbols in the figure.
