Main Shaft: Disassembly

WARNING: This page is about a different variant/trim than selected.
  1. Separate front case and rear case, then remove main shaft assembly. Refer to Disassembly .

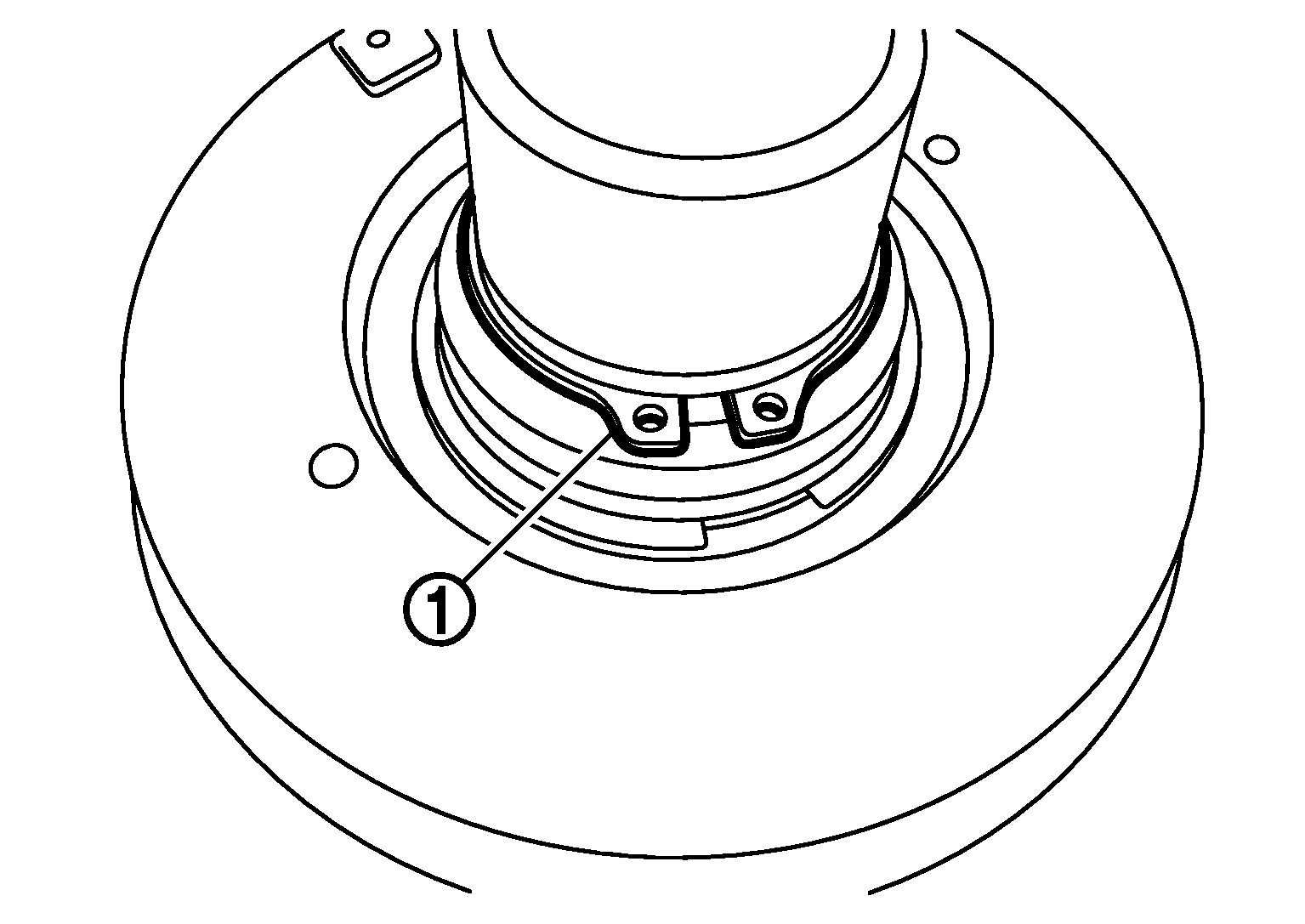

  2. Remove snap ring (1) from main shaft.
    GNSJPDIE0137Z-137Courtesy of NISSAN NORTH AMERICA, INC.

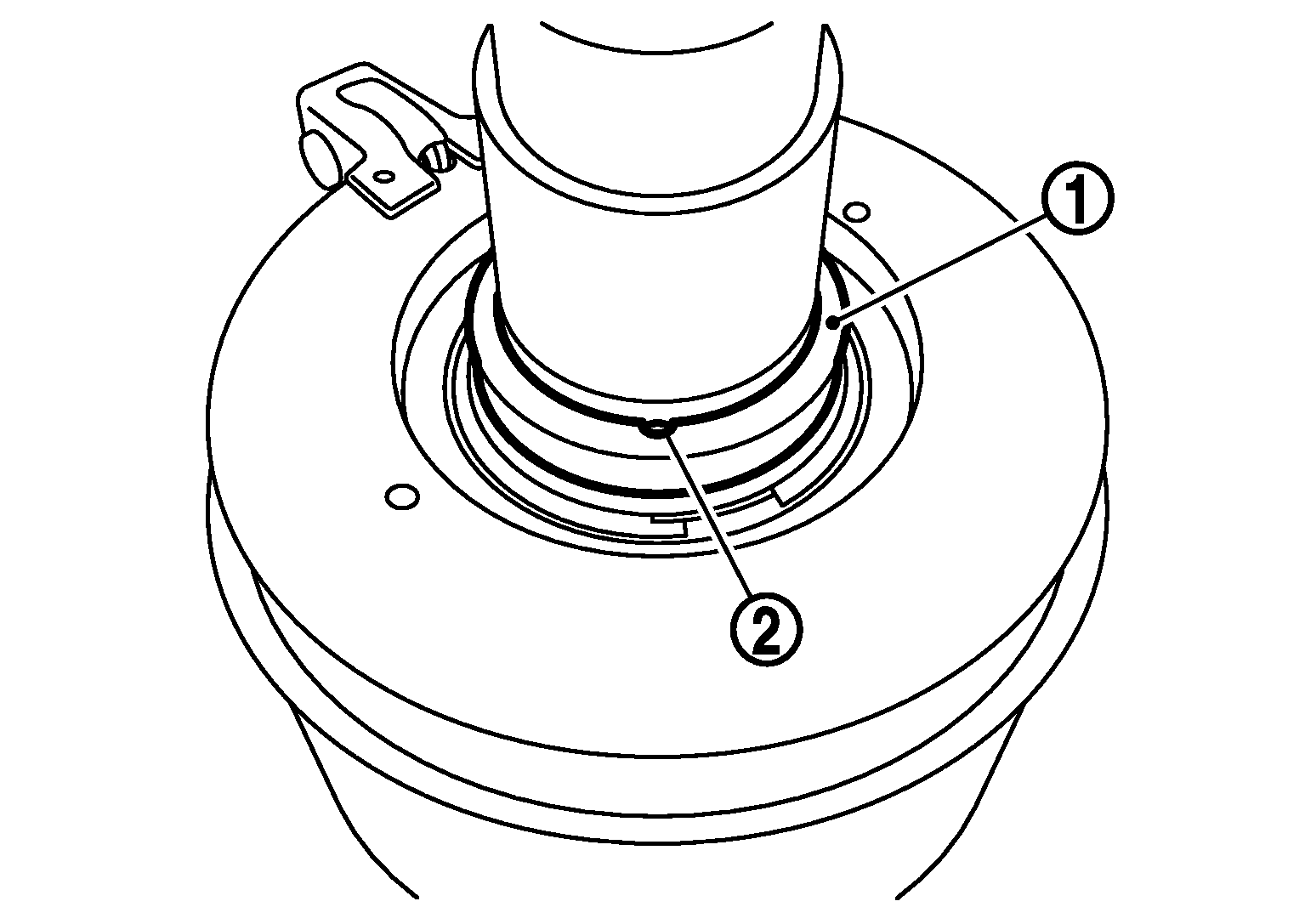

  3. Remove spacer (1) and steel ball (2) from main shaft.
    GNSJPDIE0124Z-124Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Be careful not to drop the steel ball.
  4. Using a press, remove electric controlled coupling from main shaft.
    GNSJSDIA0818Z-818Courtesy of NISSAN NORTH AMERICA, INC.
  5. Remove circlip (1) from notch (A) of electric controlled coupling.
    GNSJSDIA0858Z-858Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL : Front side
    CAUTION:
    • Never remove the circlip from the electric controlled coupling rear side.
    • Never damage electric control coupling spline, bush, etc.
  6. Remove snap ring from main shaft.

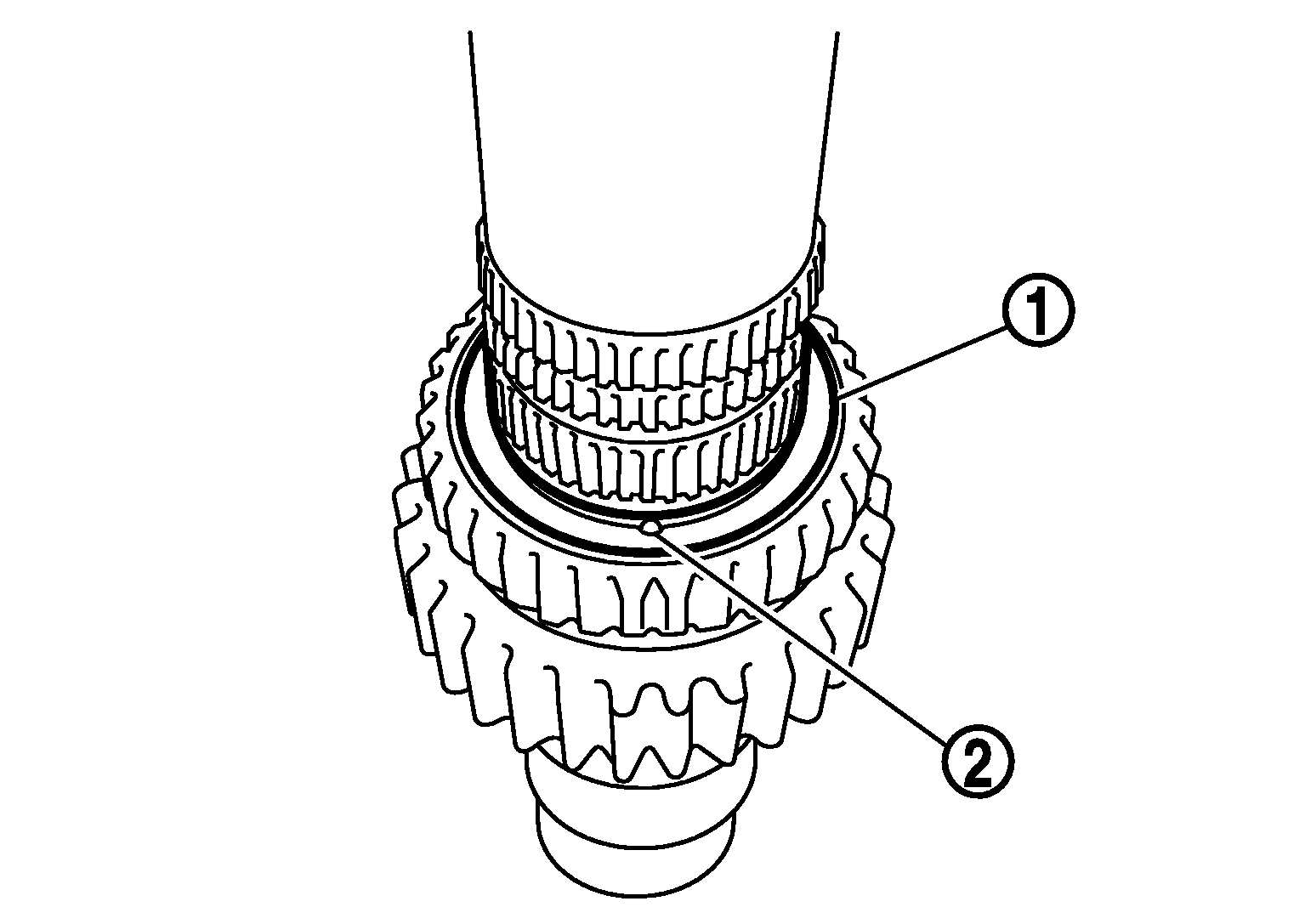

  7. Remove spacer (1) and steel ball (2) from main shaft.
    GNSJSDIA0796Z-796Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Be careful not to drop the steel ball.
  8. Remove sprocket from main shaft.
  9. Remove needle bearing from main shaft.
  10. Perform inspection after disassembly. Refer to Inspection .
