Exploded View

WARNING: This page is about a different variant/trim than selected.

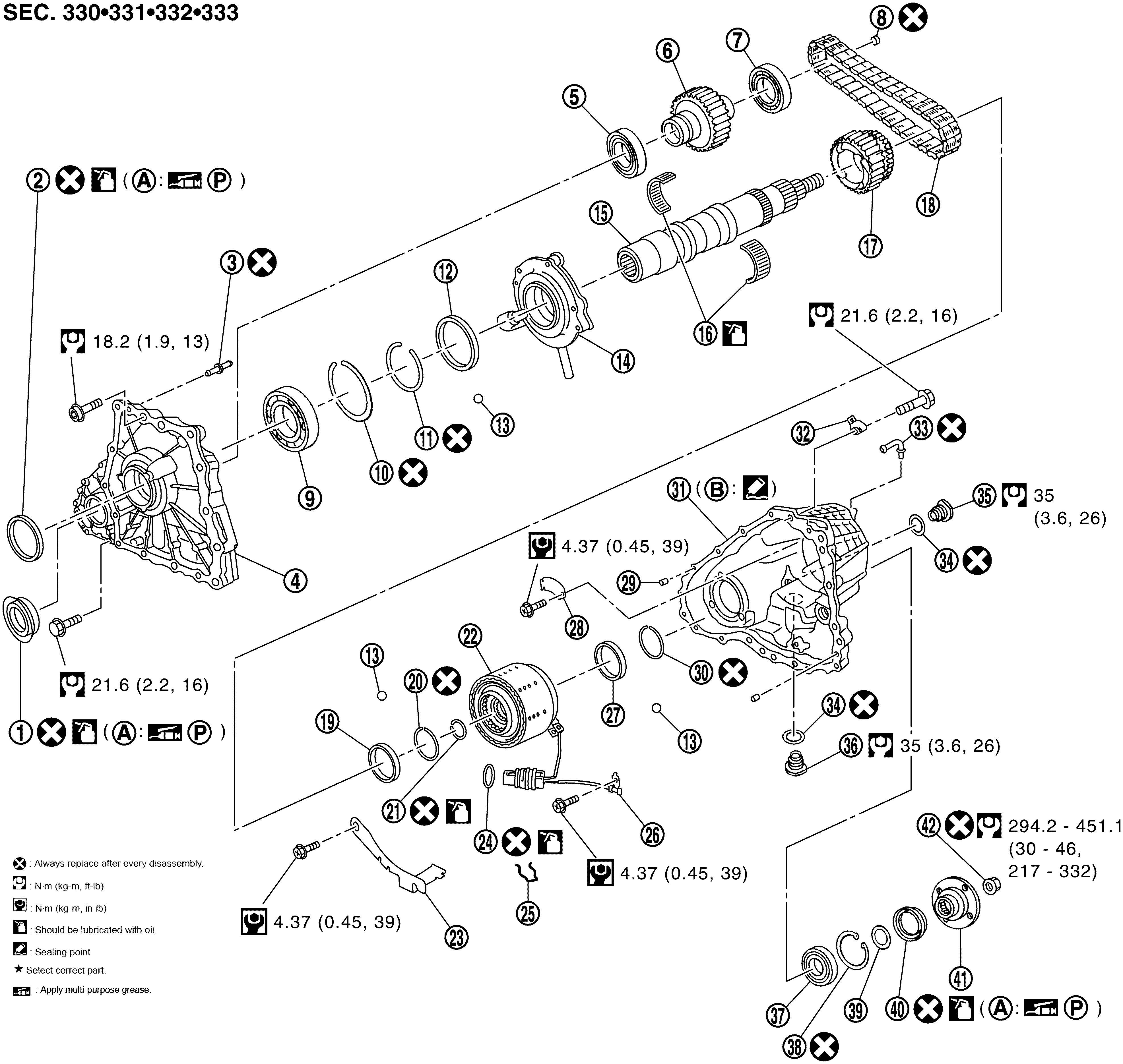

Fig 1: Front Drive Shaft And Drive Chain With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Front oil seal	2.	Main shaft oil seal	3.	Breather tube
4.	Front case	5.	Front drive shaft front bearing	6.	Front drive shaft
7.	Front drive shaft rear bearing	8.	Plug	9.	Main shaft bearing
10.	Snap ring	11.	Snap ring	12.	Spacer
13.	Steel ball	14.	Oil pump	15.	Main shaft
16.	Needle bearing	17.	Sprocket	18.	Drive chain
19.	Spacer	20.	Snap ring	21.	Circlip
22.	Electric controlled coupling	23.	Oil cover	24.	O-ring
25.	Retainer	26.	Transfer fluid temperature sensor	27.	Spacer
28.	Baffle plate	29.	Dowel pin	30.	Snap ring
31.	Rear case	32.	Harness bracket	33.	Breather tube
34.	Gasket	35.	Filler plug	36.	Drain plug
37.	Rear bearing	38.	Snap ring	39.	Spacer
40.	Rear oil seal	41.	Companion flange	42.	Self-lock nut
A.	Oil seal lip	B.	Matching surface
: Apply Genuine Anaerobic Liquid Gasket or equivalent. Refer to Recommended Chemical Products and Sealants .
: Apply petroleum jelly.
: Apply transfer fluid. Refer to Fluids and Lubricants .
Refer to Components for symbols not described above.
