Front Drive Shaft And Drive Chain: Disassembly

WARNING: This page is about a different variant/trim than selected.
  1. Separate front case and rear case. Refer to Disassembly .
  2. Remove drive chain and front drive shaft.
    CAUTION: Never use tools. Always remove by hand.

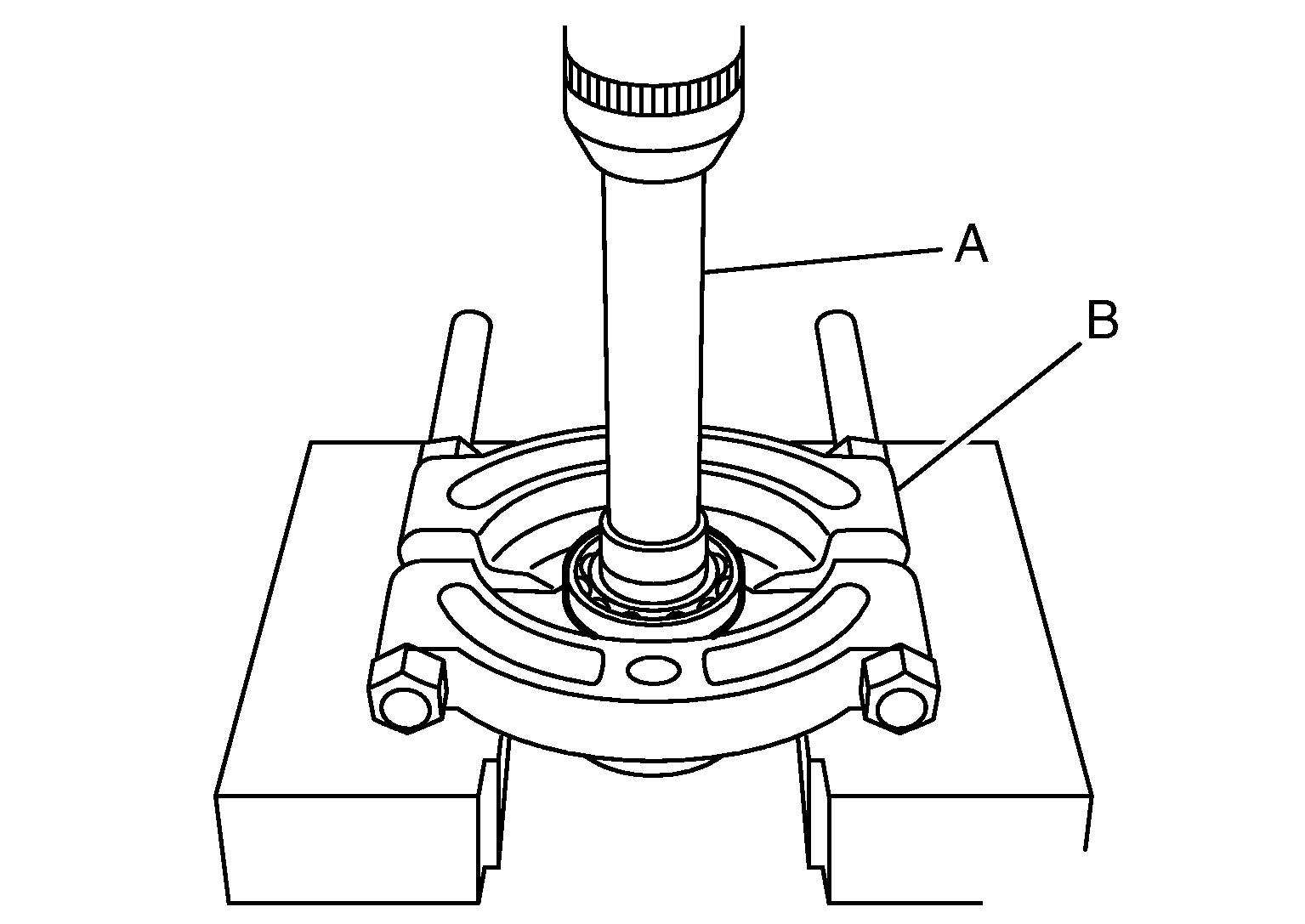

  3. Remove front drive shaft front bearing with the drift (A) and replacer (B).
    GNSJPDIE0084Z-084Courtesy of NISSAN NORTH AMERICA, INC.

    A:

    Drift [SST: ST31214000 (J-25269-B)]

    B:

    Replacer (commercial service tool)

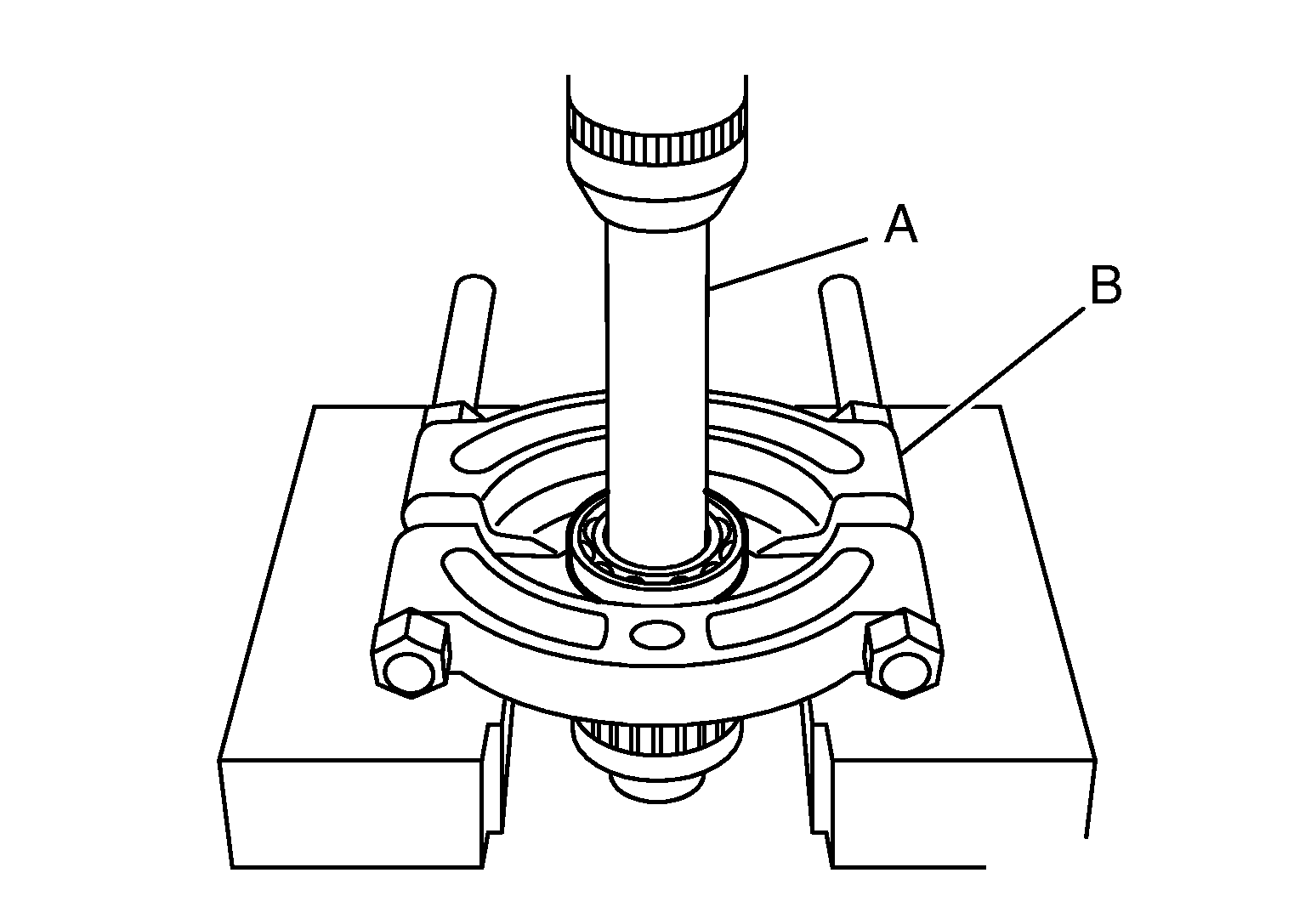

  4. Remove front drive shaft rear bearing with the drift (A) and replacer (B).
    GNSJPDIE0085Z-085Courtesy of NISSAN NORTH AMERICA, INC.

    A:

    Drift [SST: ST31214000 (J-25269-B)]

    B:

    Replacer (commercial service tool)
  5. Remove plug from front drive shaft.
  6. Perform inspection after disassembly. Refer to Inspection .
