Front Drive Shaft And Drive Chain: Assembly

WARNING: This page is about a different variant/trim than selected.
  1. Install plug to front drive shaft.
    CAUTION: Never reuse plug.
  2. Install front drive shaft front bearing with the drift (A) [SST: ST33200000 (J-26082)].
    GNSJPDIE0138Z-138Courtesy of NISSAN NORTH AMERICA, INC.
  3. Install front drive shaft rear bearing with the drift (A) [SST: KV38104010 (--)].
    GNSJPDIE0139Z-139Courtesy of NISSAN NORTH AMERICA, INC.
  4. Set drive chain to front drive shaft.

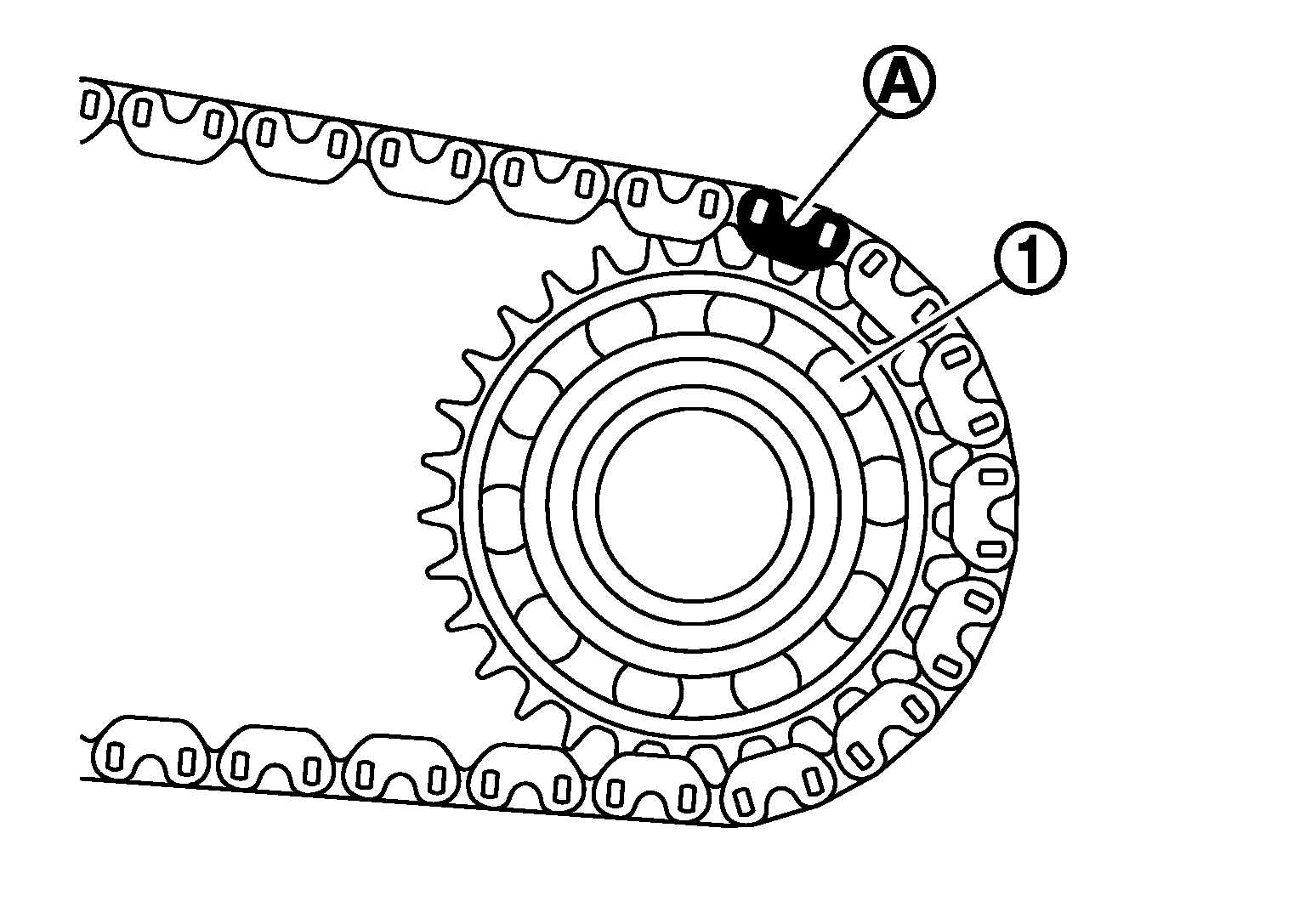

    CAUTION: Identification mark (A) of drive chain should be in the side of front bearing (1) of front drive shaft.
    GNSJPDIE0075Z-075Courtesy of NISSAN NORTH AMERICA, INC.
  5. Install drive chain to main shaft, and then install front drive shaft.
    CAUTION: Never use tools. Always install by hand.
  6. Install front case to rear case. Refer to Assembly .
