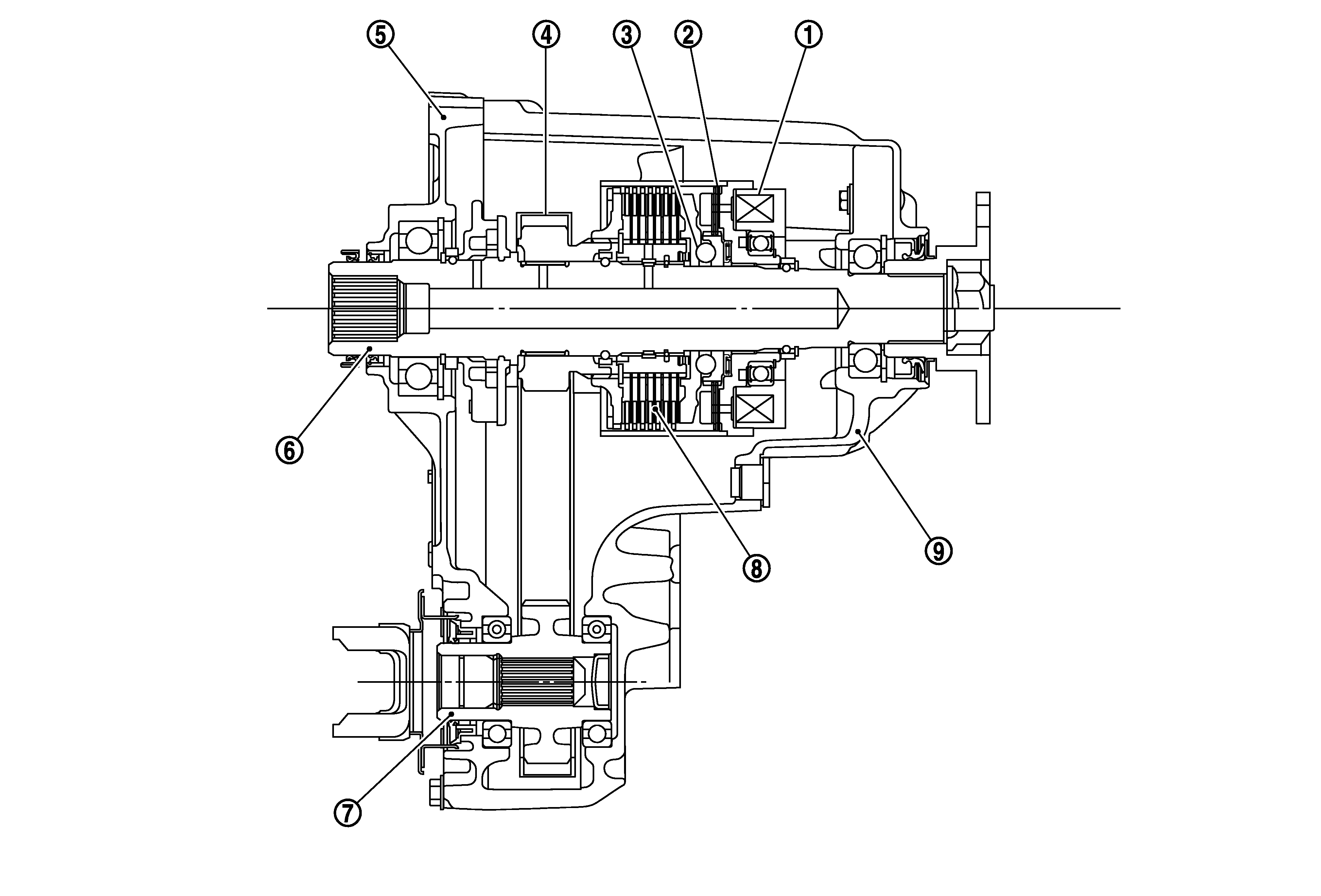

Sectional View
WARNING: This page is about a different variant/trim than selected.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
1.
|
Electromagnet
|
2.
|
Control clutch
|
3.
|
Cam
|
|
4.
|
Drive chain
|
5.
|
Front case
|
6.
|
Main shaft
|
|
7.
|
Front drive shaft
|
8.
|
Main clutch
|
9.
|
Rear case
|
