Removal and Installation: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the rear propeller shaft. Refer to Removal and Installation .
  2. Remove self-lock nut of companion flange with a flange wrench (commercial service tool).

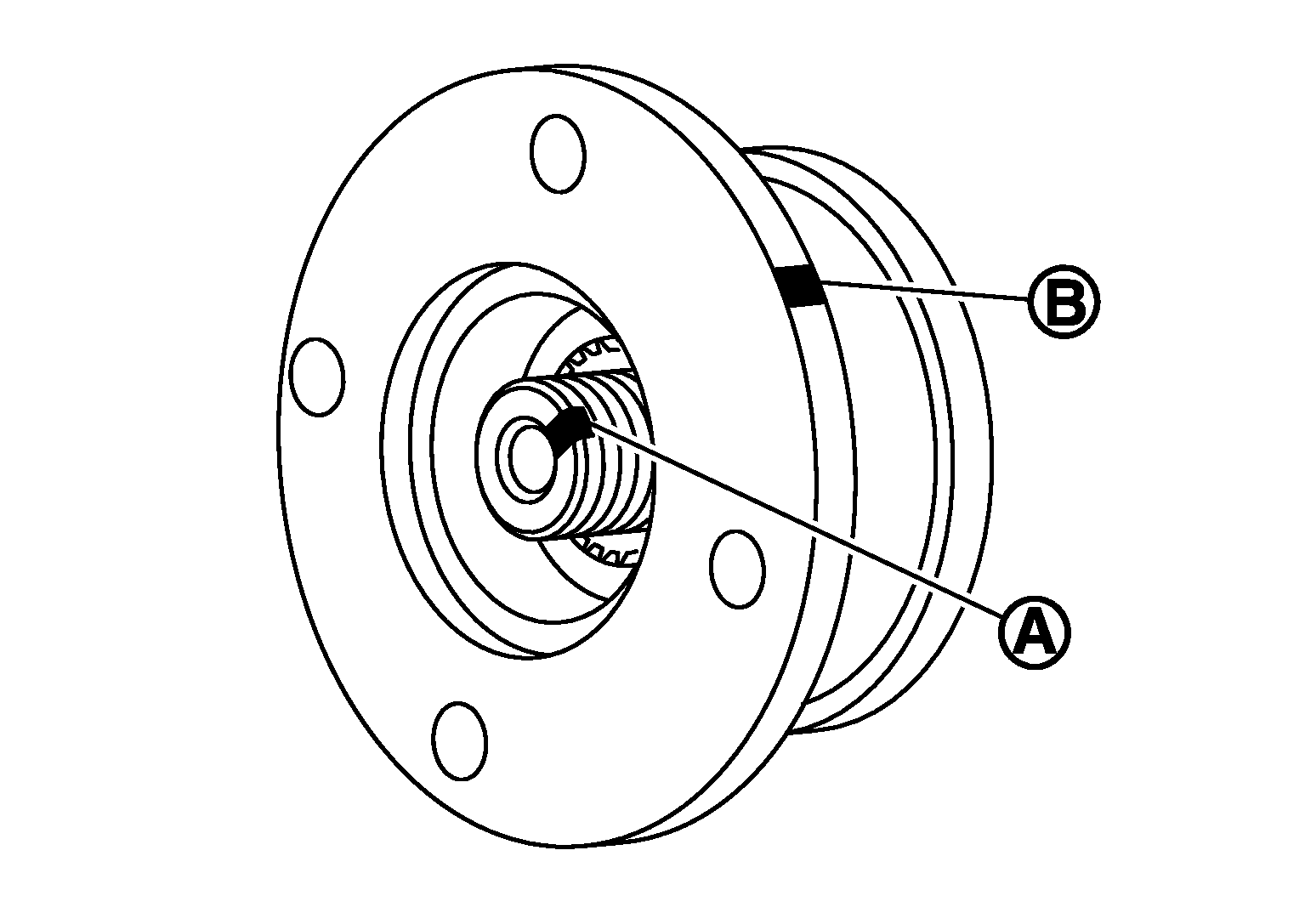

  3. Put matching mark (A) on the end of the main shaft. The mark should be in line with the mark (B) on the companion flange.
    GNSJPDIE0060Z-060Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: For matching mark, use paint. Never damage main shaft.

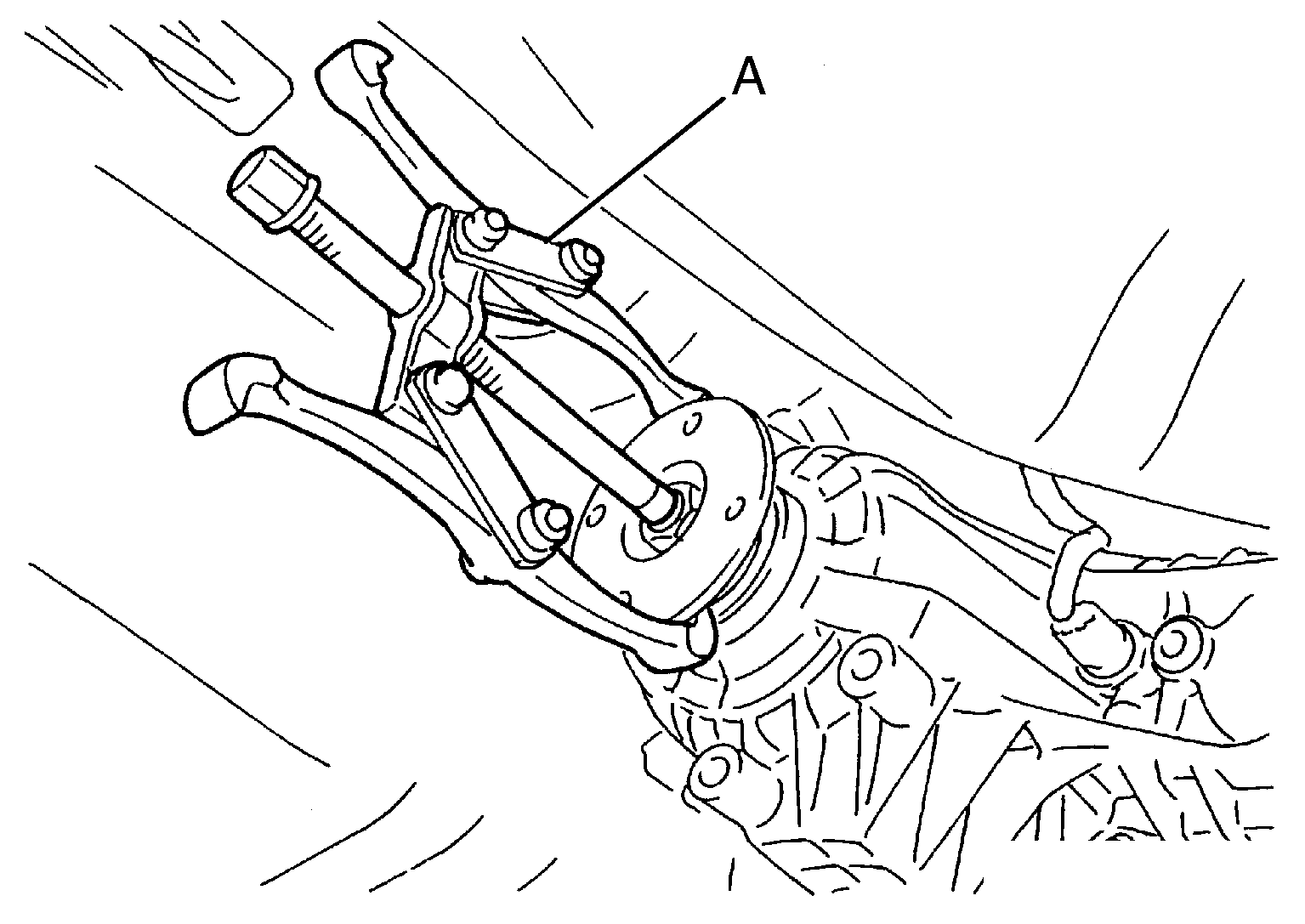

  4. Remove the companion flange with a puller (A) (commercial service tool).
    GNSJPDIE0061Z-061Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Never damage the companion flange.

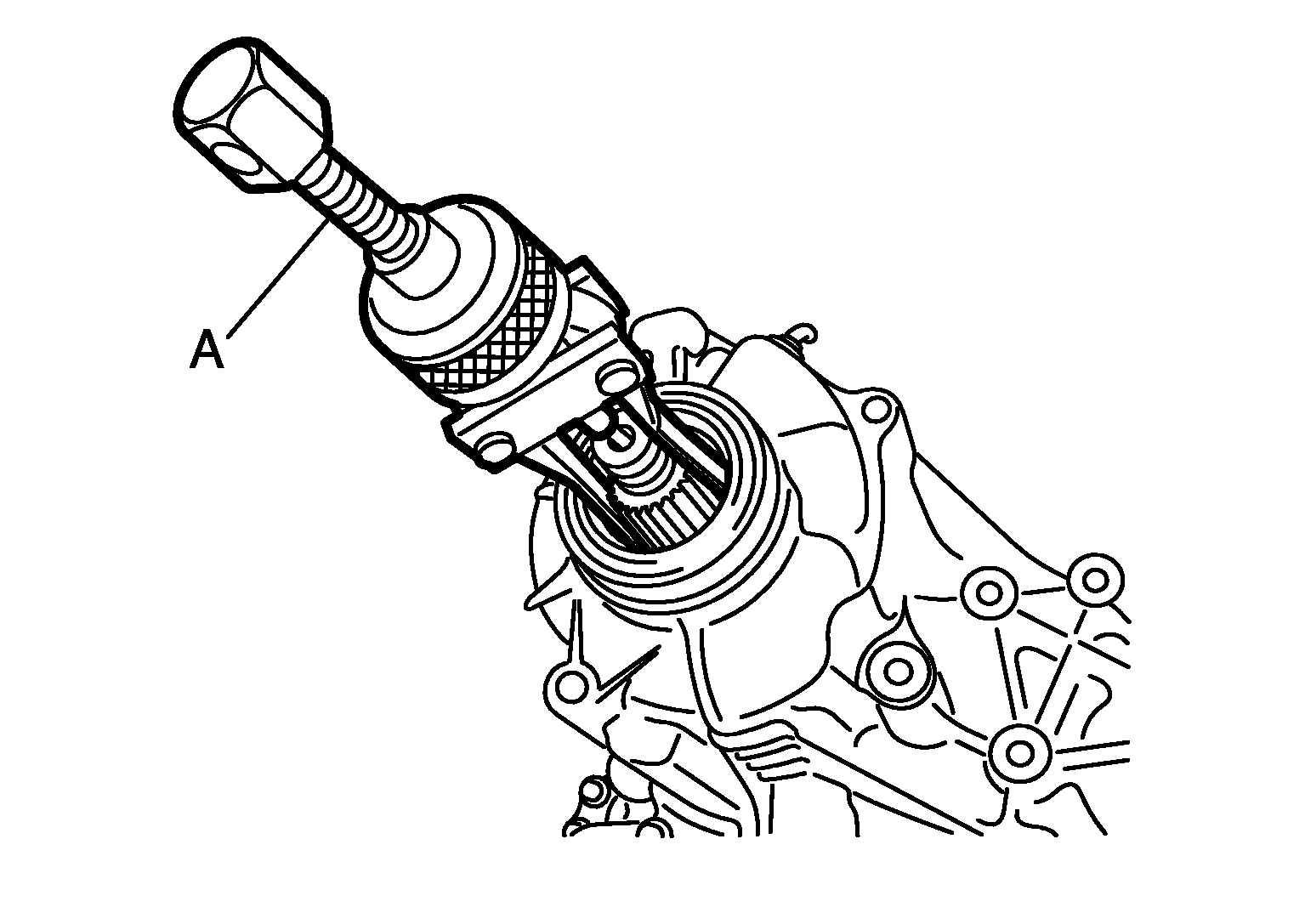

  5. Remove the rear oil seal with the puller (A) [SST: KV381054S0 (J-34286)].
    GNSJPDIE0132Z-132Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Never damage the rear case.
