Removal and Installation: Installation

WARNING: This page is about a different variant/trim than selected.

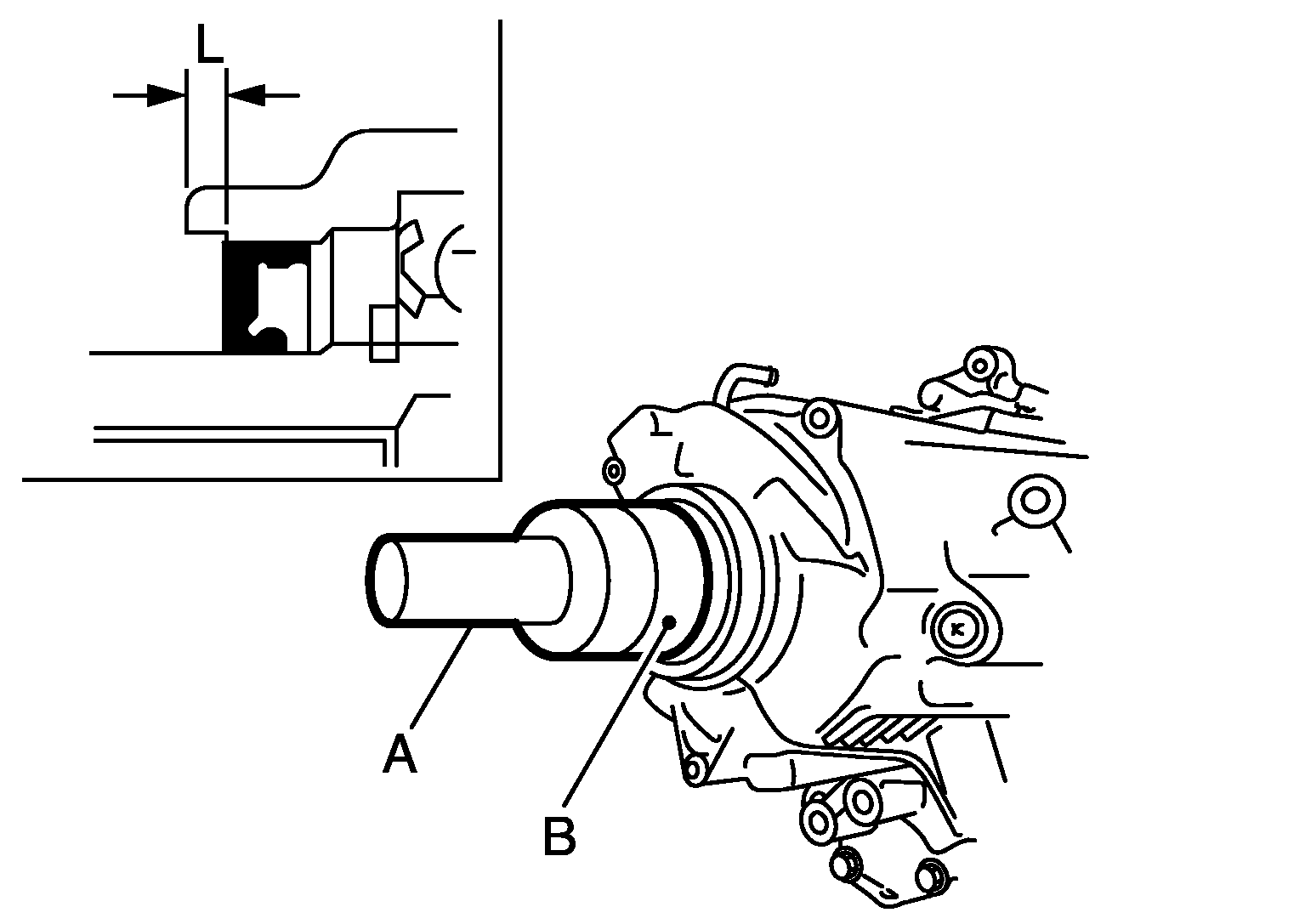

  1. Apply transfer fluid to rear oil seal, install it with the drifts (A and B) within the dimension (L) shown as follows.
    GNSJPDIE0133Z-133Courtesy of NISSAN NORTH AMERICA, INC.

    A

    : Drift [SST: ST30720000 (J-25405)]

    B

    : Drift [SST: KV40104830 (--)]

    L

    : 6.7 - 7.3 mm (0.264 - 0.287 in)
    CAUTION:
    • Never reuse rear oil seal.
    • Apply petroleum jelly to oil seal lip.
    • When installing, never incline rear oil seal.
  2. Align the matching mark (A) of main shaft with the mark (B) of companion flange, then install the companion flange.
    GNSJPDIE0060Z-060Courtesy of NISSAN NORTH AMERICA, INC.
  3. Using a flange wrench (A) (commercial service tool), install the self-lock nut of companion flange and tighten to the specified torque. Refer to Exploded View .
    GNSJPDIE0131Z-131Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Never reuse self-lock nut.
  4. Install the rear propeller shaft. Refer to Removal and Installation .
  5. Check fluid level. Refer to Inspection .
