Exploded View

WARNING: This page is about a different variant/trim than selected.

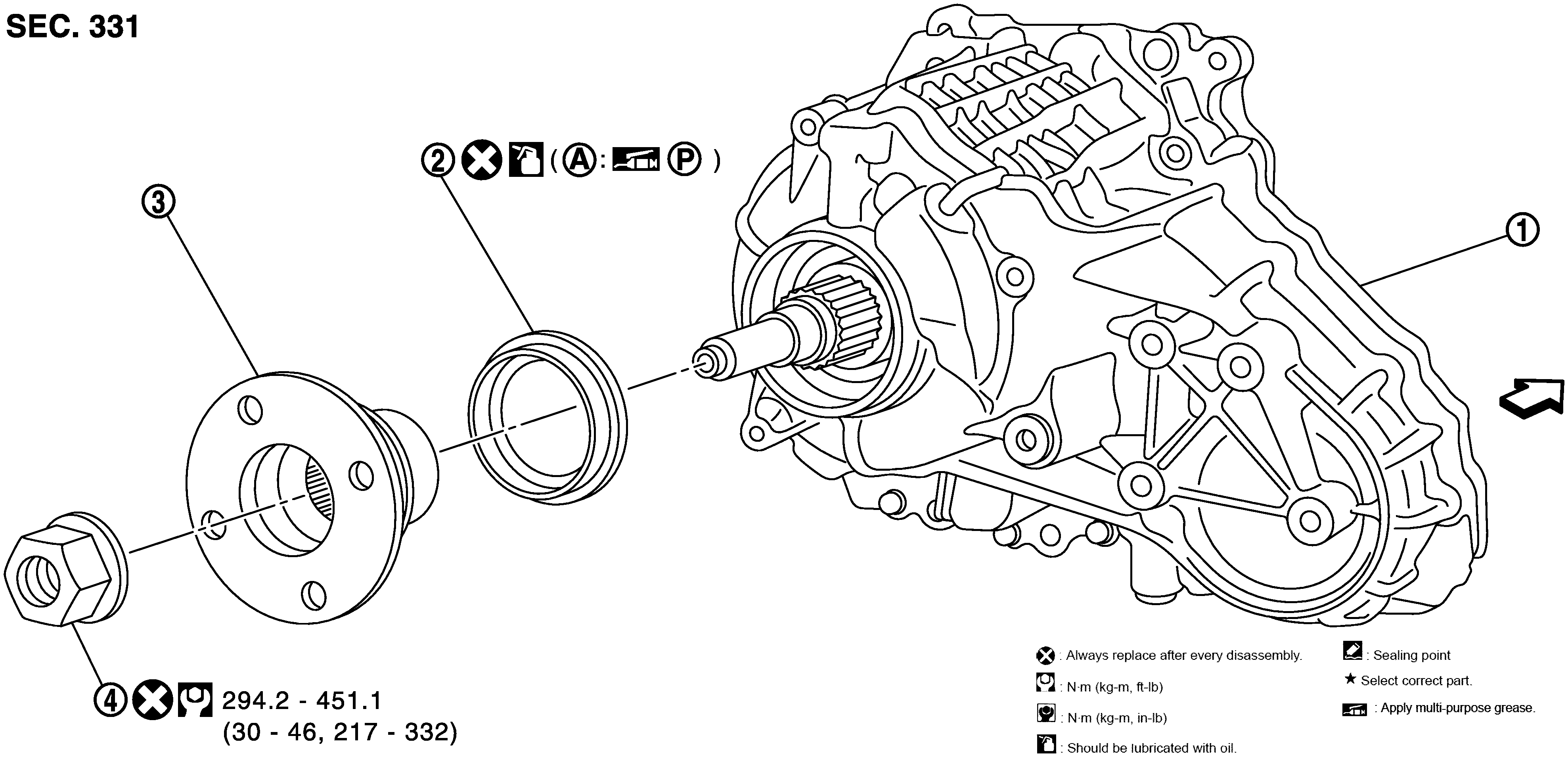

Fig 1: Rear Oil Seal With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Transfer assembly	2.	Rear oil seal	3.	Companion flange
4.	Self-lock nut
A.	Oil seal lip
: Vehicle front
: Apply transfer fluid. Refer to Fluids and Lubricants .
: Apply petroleum jelly.
Refer to Components for symbols not described above.
