Removal and Installation: Installation

WARNING: This page is about a different variant/trim than selected.

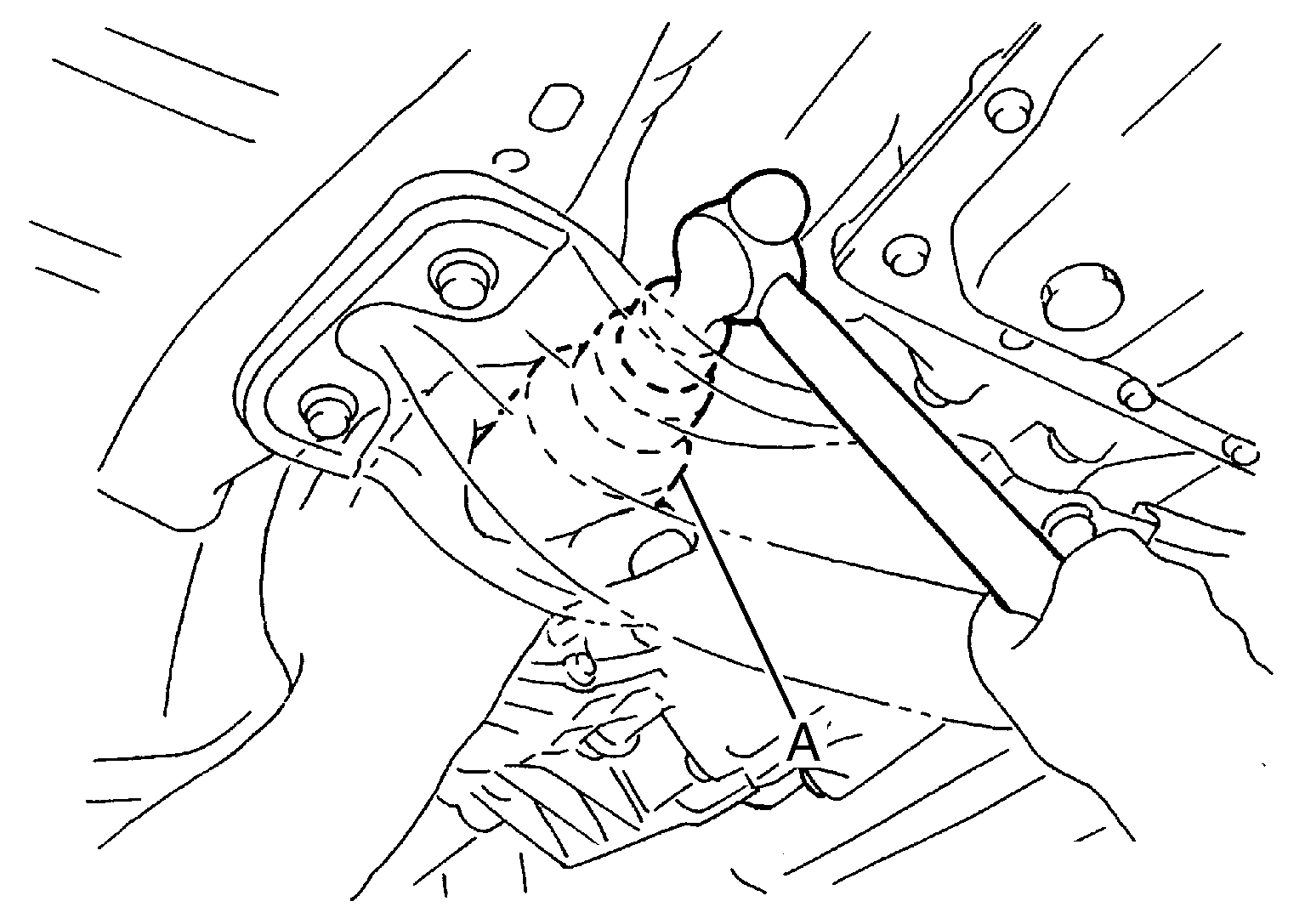

  1. Apply transfer fluid to outside of front oil seal, install it with a drift (A) [SST: ST27862000 (--)] until the end face of front case.
    GNSJPDIE0058Z-058Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION:
    • Never reuse front oil seal.
    • Apply petroleum jelly to oil seal lip.
    • When installing, never incline front oil seal.
  2. Install front propeller shaft. Refer to Removal and Installation (VQ37VHR), Removal and Installation (VK56VD).
  3. Fill with new transfer fluid, check fluid level and for fluid leakage. Refer to Inspection .
