Transfer Fluid: Draining

WARNING: This page is about a different variant/trim than selected.
  1. Run the vehicle to warm up the transfer unit sufficiently.
  2. Stop the engine, and remove the drain plug (1) to drain the transfer fluid.

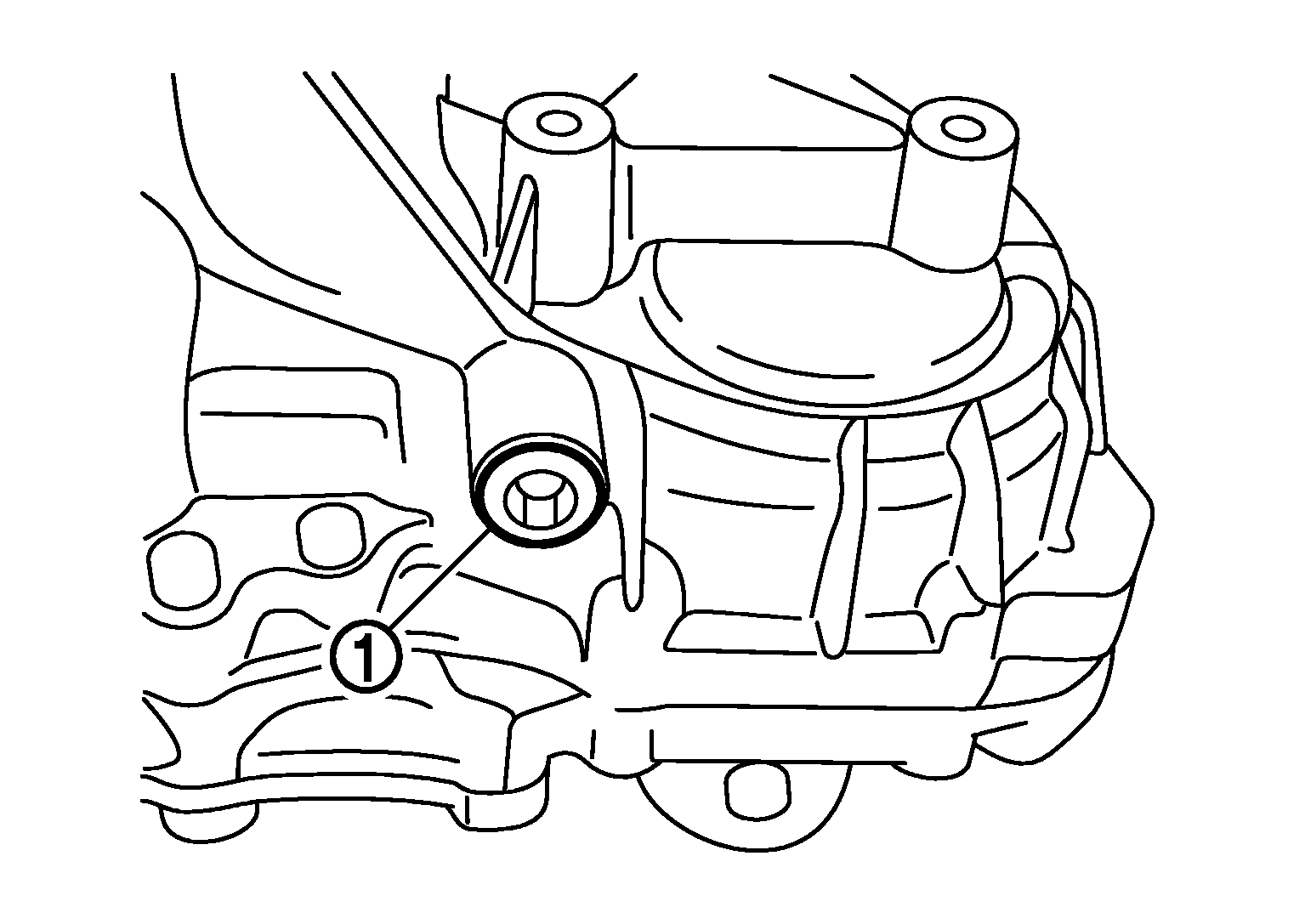

    GNSJPDIE0130Z-130Courtesy of NISSAN NORTH AMERICA, INC.
  3. Set a new gasket onto the drain plug, and install it on the transfer and tighten to the specified torque. Refer to Exploded View .
    CAUTION: Never reuse gasket.
