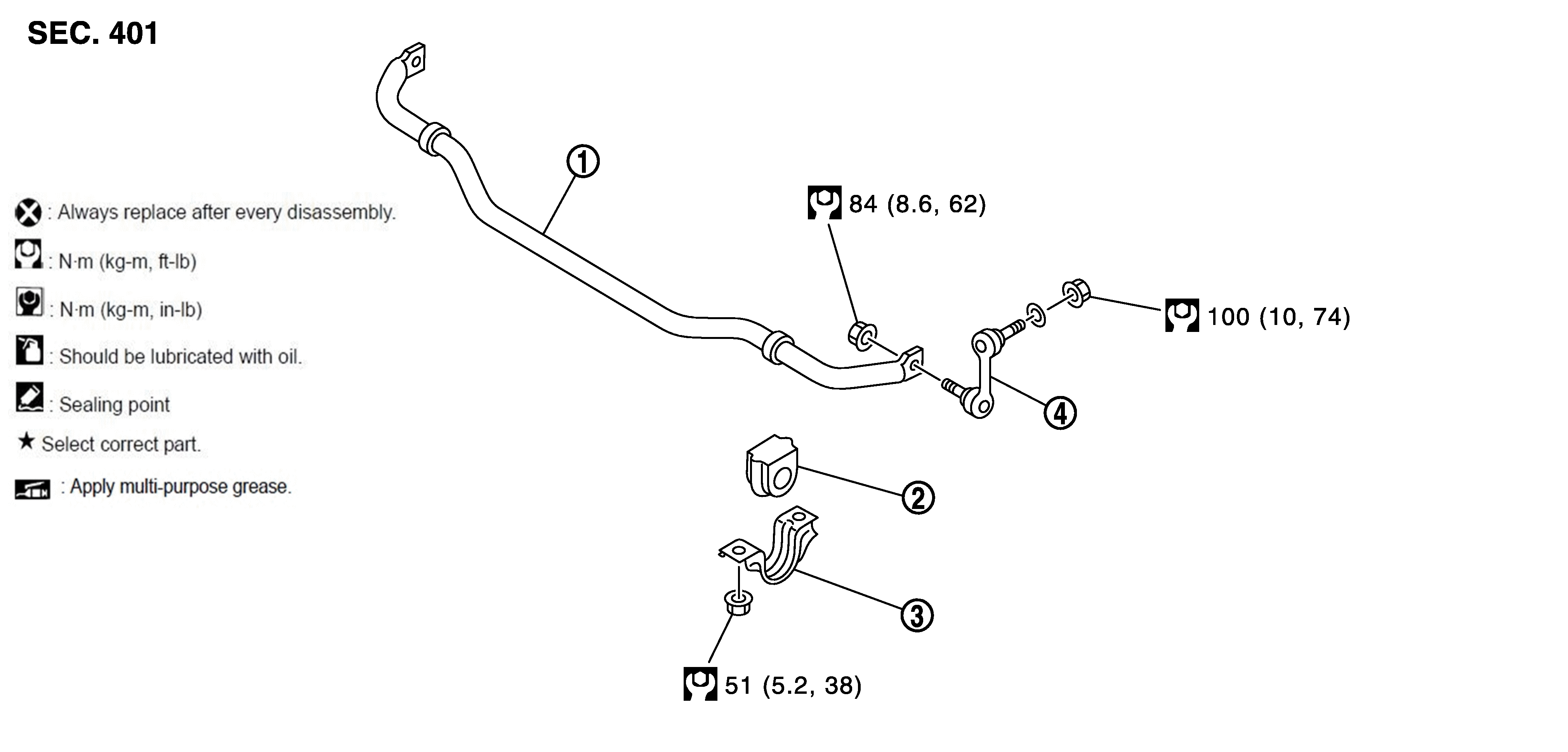

Exploded View
WARNING: This page is about a different variant/trim than selected.
|
1. |
Stabilizer bar |
2. |
Stabilizer bushing |
3. |
Stabilizer clamp |
|
4. |
Stabilizer connecting rod |
||||
|
Refer to Components for symbols in the figure. |
|||||
