Left Side

WARNING: This page is about a different variant/trim than selected.

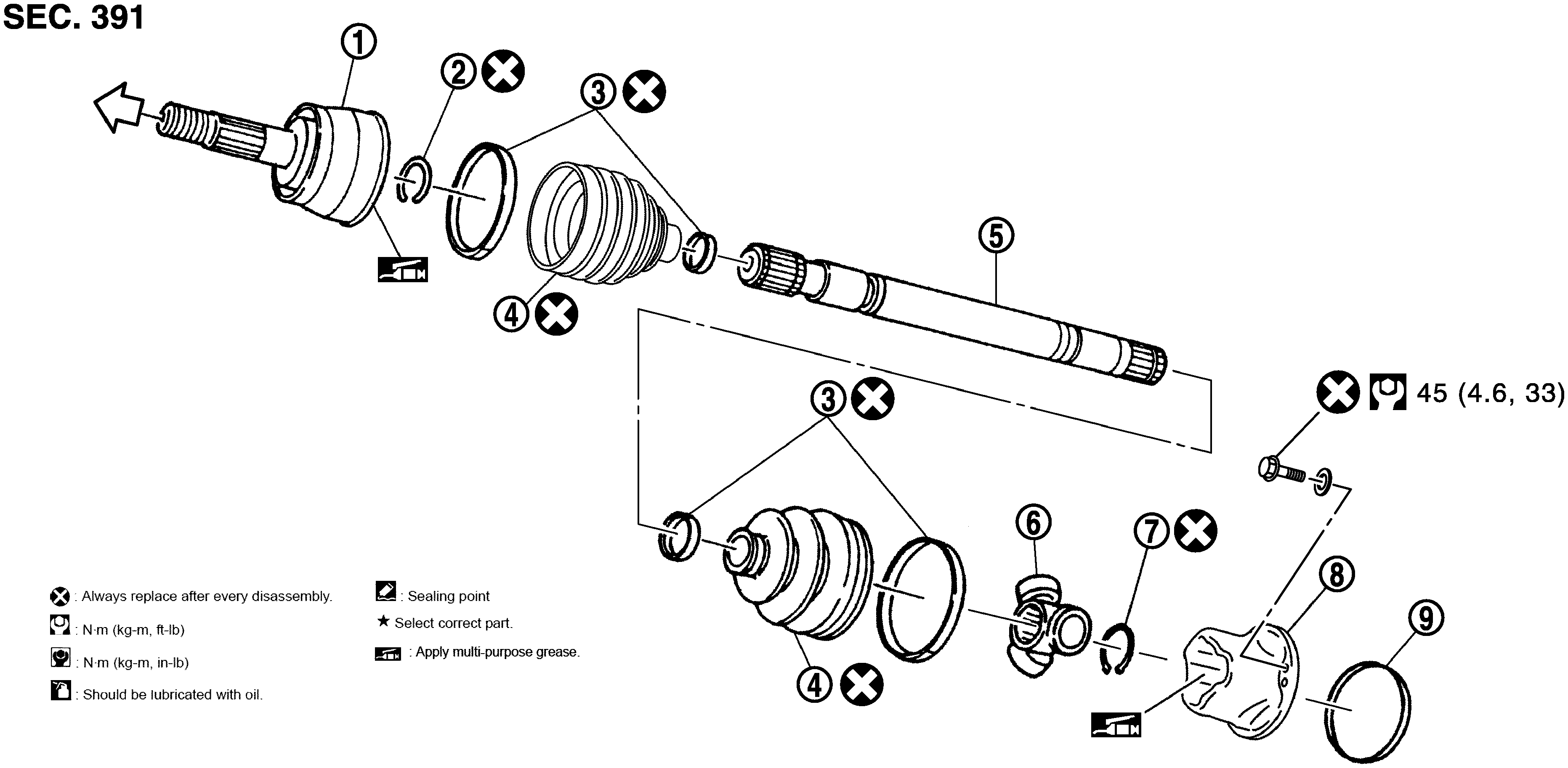

Fig 1: Front Drive Shaft Boot LH 3.7L With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

Joint sub-assembly	Circular clip	Boot band
Boot	Shaft	Spider assembly
Snap ring	Housing	Plug
: Wheel side
: Always replace after every disassembly.
: N.m (kg-m, ft-lb)
: NISSAN genuine grease or an equivalent.

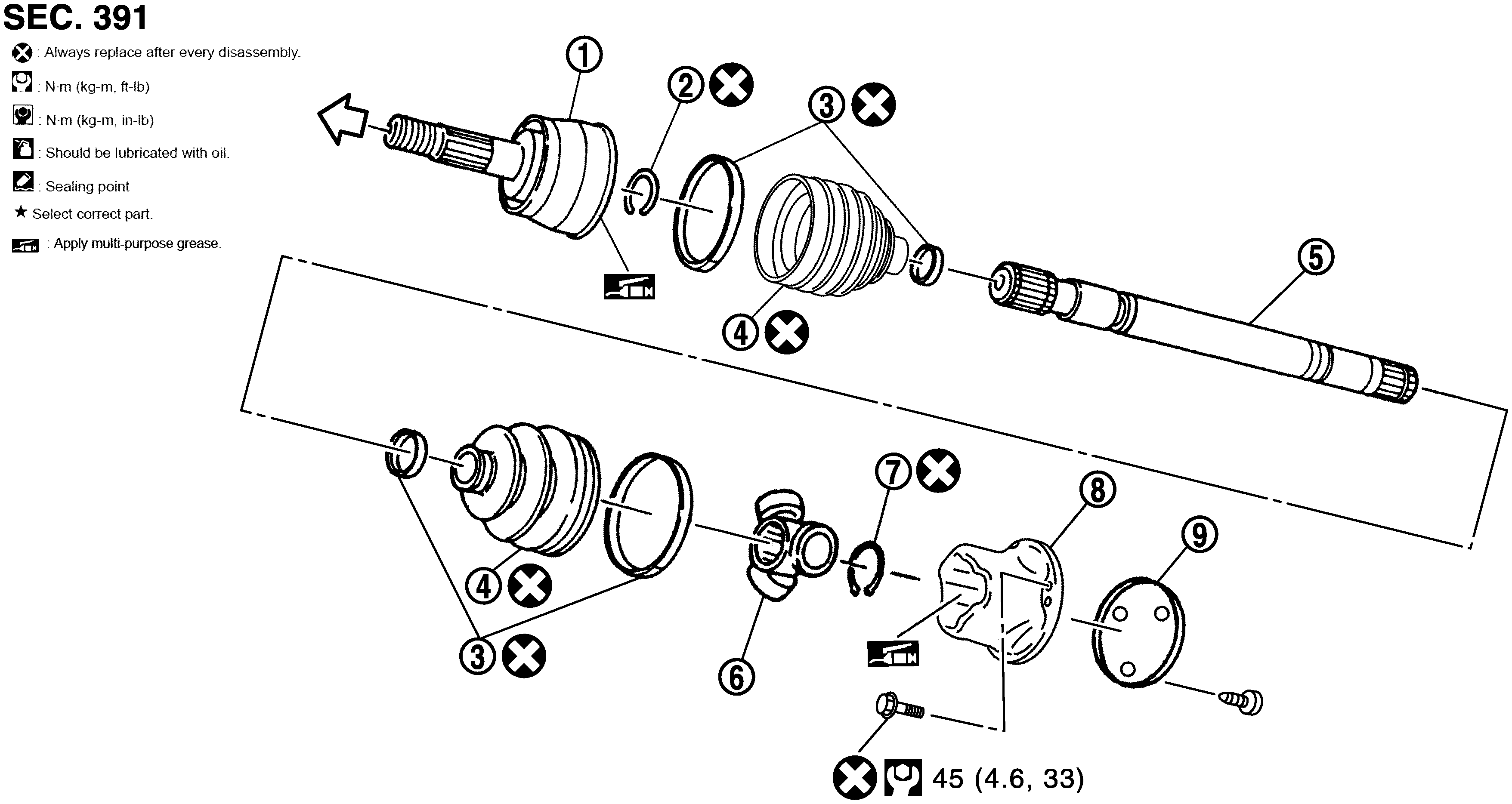

Fig 2: Front Drive Shaft Boot LH 5.6L With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

Joint sub-assembly	Circular clip	Boot band
Boot	Shaft	Spider assembly
Snap ring	Housing	Plug
: Wheel side
: Always replace after every disassembly.
: N.m (kg-m, ft-lb)
: NISSAN genuine grease or an equivalent.
