Exploded View

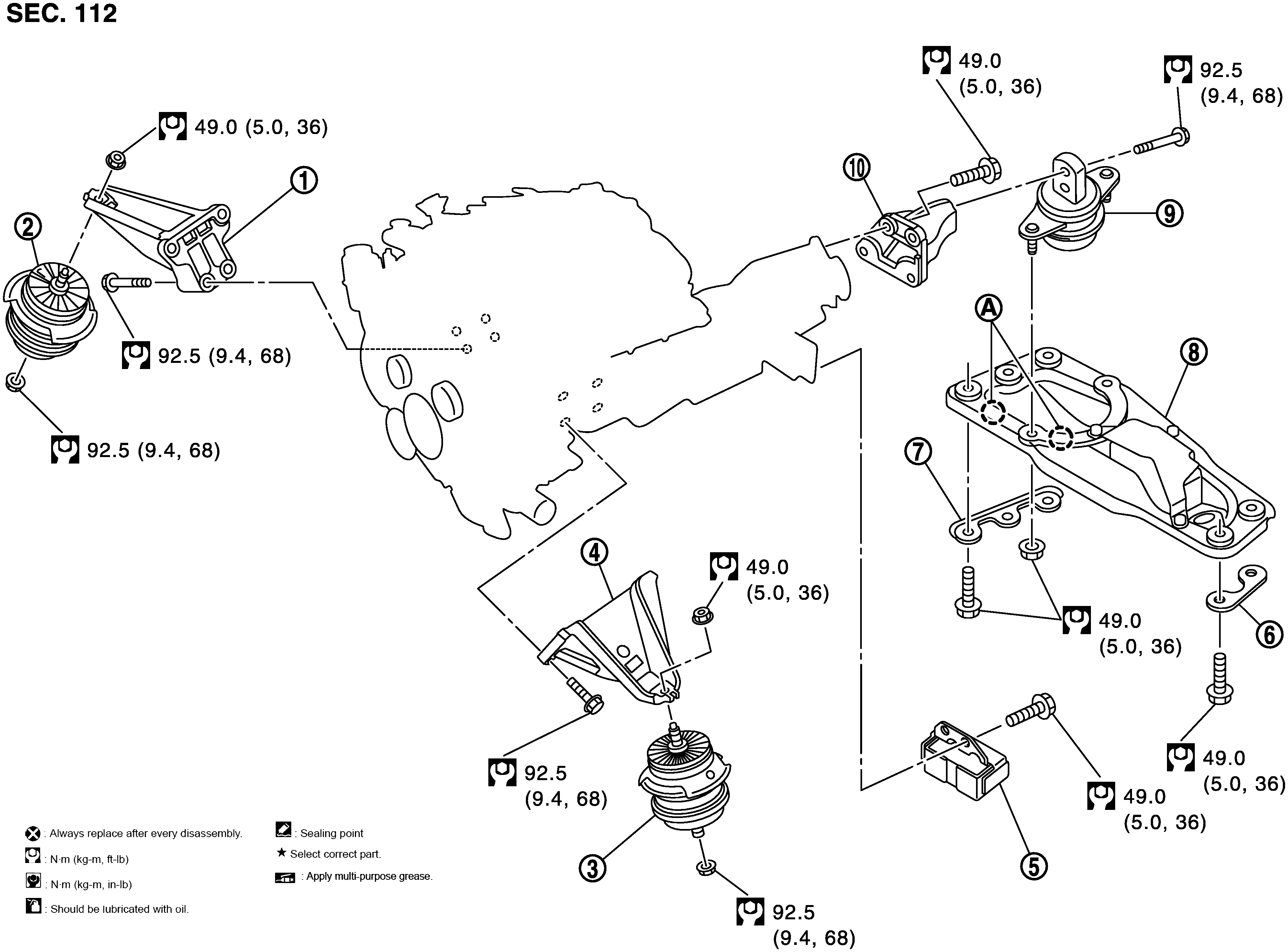

Fig 1: Engine Assembly AWD With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Engine mounting bracket (RH)	2.	Engine mounting insulator (RH)	3.	Engine mounting insulator (LH)
4.	Engine mounting bracket (LH)	5.	Dynamic damper	6.	Heat shield (LH)
7.	Heat shield (RH)	8.	Rear engine mounting member	9.	Engine mounting insulator (rear)
10.	Engine mounting bracket (rear)
A.	Front mark
Refer to Components for symbols in the figure.
