Inspection After Disassembly

Surface Distortion

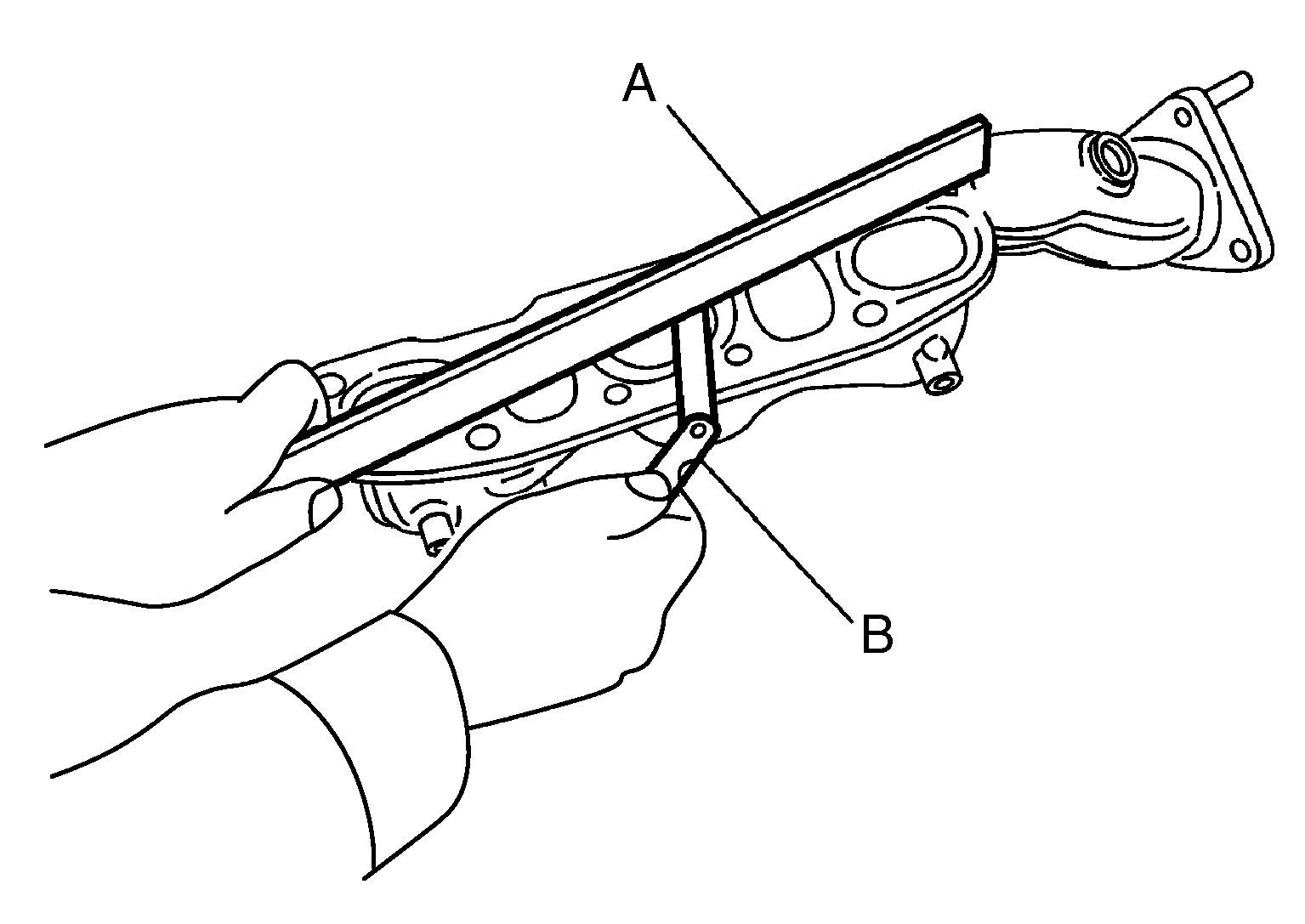

• Check the surface distortion of the exhaust manifold mating surface with a straightedge (A) and a feeler gauge (B).

  Courtesy of NISSAN NORTH AMERICA, INC.

  Limit

  : Refer to Exhaust Manifold .

• If it exceeds the limit, replace exhaust manifold.
