Disassembly and Assembly: Assembly
Note the following item, and install in the reverse order of removal.
Exhaust Manifold Gasket
- Install exhaust manifold gasket in directional shown in the figure, below.
|
A |
: Triangle press |
|
|
: Above |
Exhaust Manifold

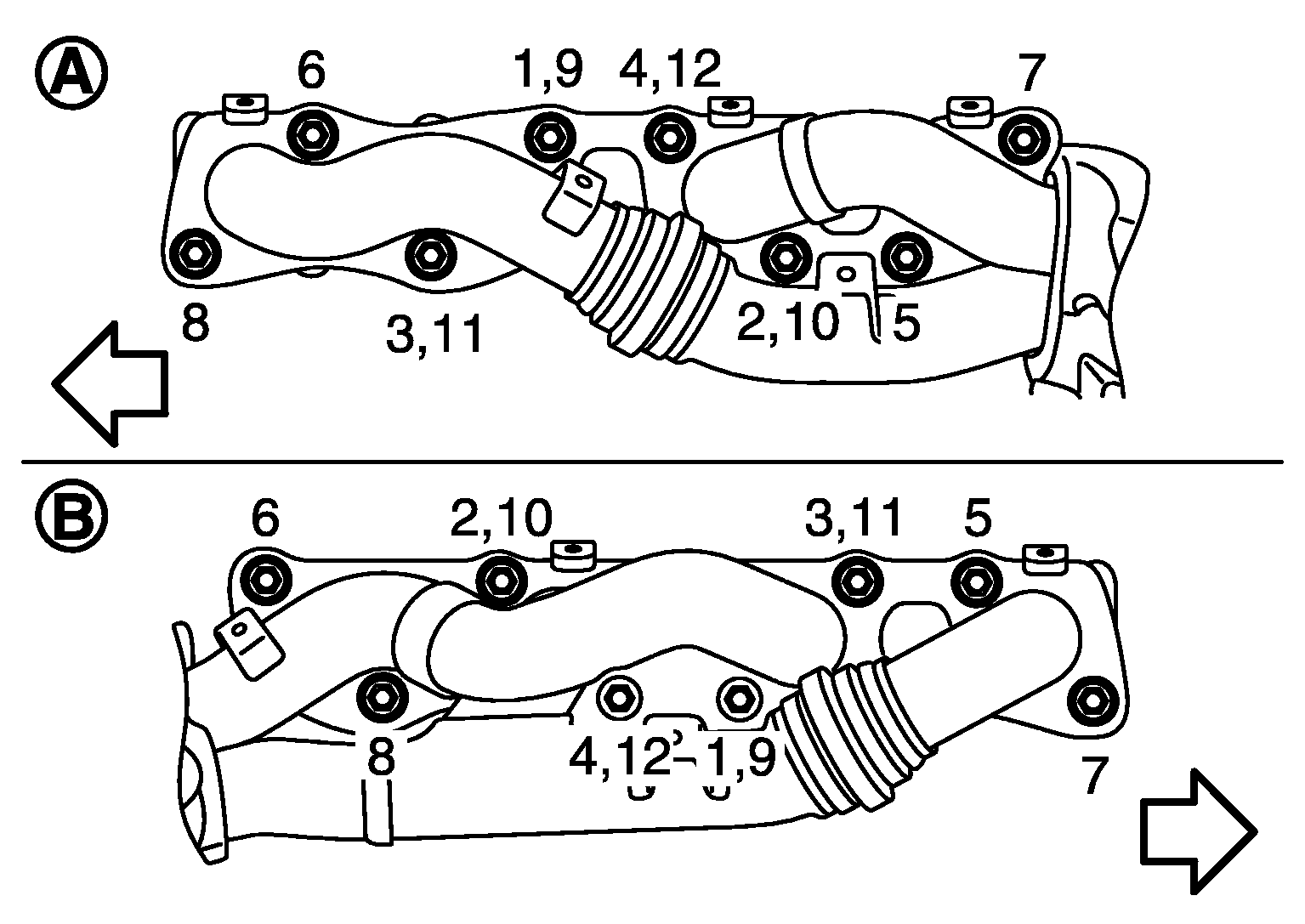

- Tighten mounting nuts in numerical order as shown in the figure, below.
A
: Bank 1
B
: Bank 2
: Engine front
NOTE: Tighten mounting nuts No. 1 to 4 in two steps. The numerical order No. 9 to 12 shown are second steps.
Air Fuel Ratio Sensor 1, Heated Oxygen Sensor 2
CAUTION:
- Before installing a new sensors, clean exhaust system threads using oxygen sensor thread cleaner (commercial service tool: J-43897-18 or J-43897-12), and apply anti-seize lubricant (commercial service tool).
- Sensors are not reusable. Replace them with a new one after removal. When replacing them, handle with care not to impact on them.

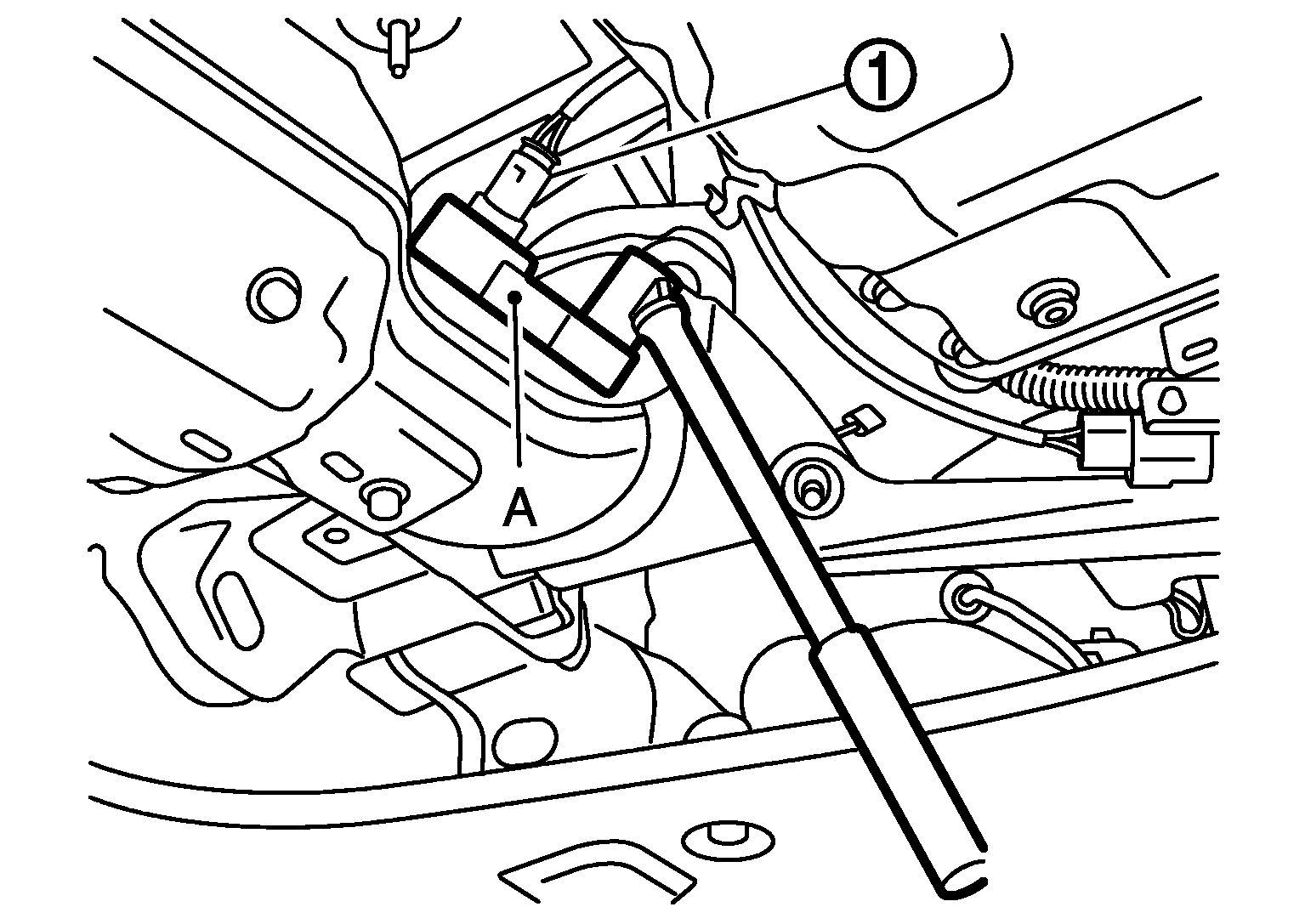

- When installing the new sensors, set the heated oxygen sensor wrench [SST: KV10114400 (J-38365)] (A) in the hexagonal part to tighten the them.
1
: Heated oxygen sensor 2 (bank 1)
- Never over torque sensors. Doing so may cause damage to the sensors, resulting in "MIL" coming on.
- Prevent rust preventatives from clinging to the sensor body.
