Exploded View

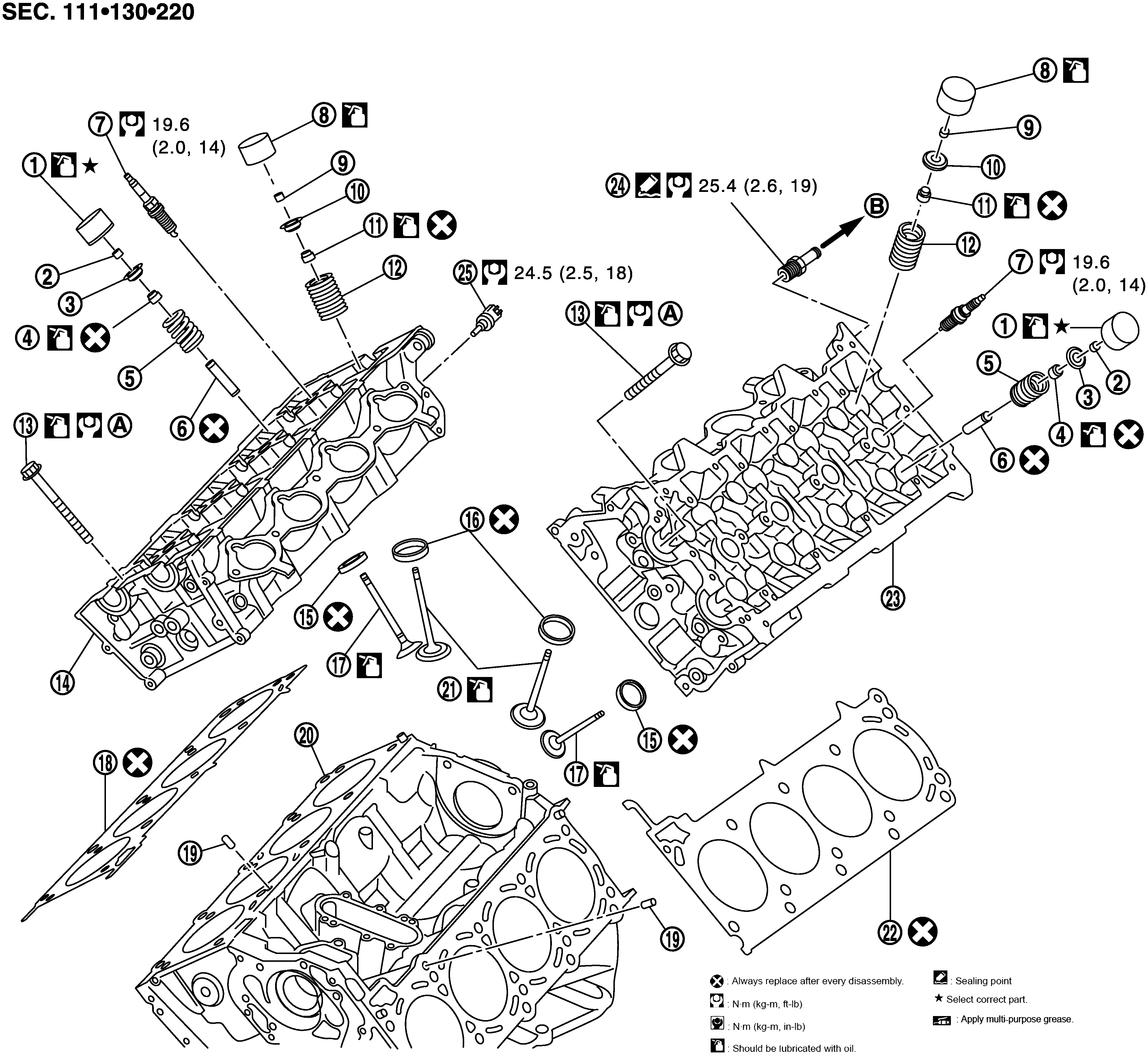

Fig 1: Cylinder Head With Torque Specifications

GNSJPBIA3863GB-863

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Valve lifter (EXH)	2.	Valve collet (EXH)	3.	Valve spring retainer (EXH)
4.	Valve oil seal (EXH)	5.	Valve spring (with valve spring seat) (EXH)	6.	Valve guide (EXH)
7.	Spark plug	8.	Valve lifter (INT)	9.	Valve collet (INT)
10.	Valve spring retainer (INT)	11.	Valve oil seal (INT)	12.	Valve spring (with valve spring seat) (INT)
13.	Cylinder head bolt	14.	Cylinder head (bank 2)	15.	Valve seat (EXT)
16.	Valve seat (INT)	17.	Valve (EXH)	18.	Cylinder head gasket (bank 2)
19.	Oil filter (for VVEL ladder assembly)	20.	Cylinder block	21.	Valve (INT)
22.	Cylinder head gasket (bank 1)	23.	Cylinder head (bank 1)	24.	Water connector
25.	Engine coolant temperature sensor
A.	Comply with assembly procedure when tightening. Refer to Disassembly and Assembly .	B.	To Electric throttle control actuator (bank 1)
Refer to Components for symbol marks in the figure.

CAUTION: A high degree of precision is required for a valve on the intake side. Never remove the valve related parts unless necessary.

NOTE:

As for replacement of parts on the intake side as shown in the exploded view, replace VVEL ladder assembly & cylinder head assembly. (Only valve oil seals are replaceable as a single part.)
VVEL ladder assembly cannot be replaced as a single part, because it is machined together with cylinder head assembly.
