Piston Ring Side Clearance

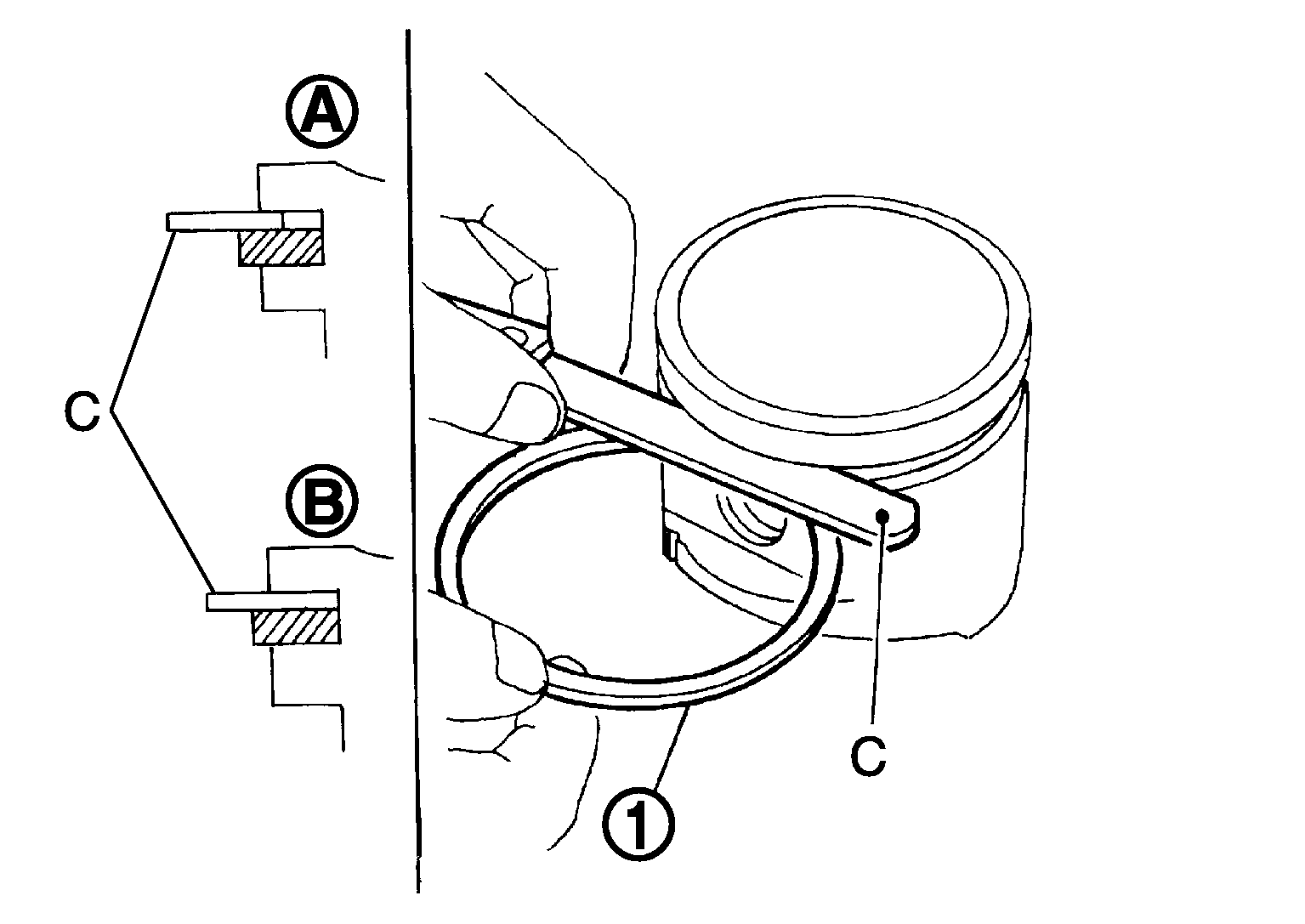

- Measure the side clearance of piston ring (1) and piston ring groove with a feeler gauge (C).
A
: OK
B
: NG
Standard and limit
: Refer to Cylinder Block .
- If the measured value exceeds the limit, replace piston ring, and measure again. If it still exceeds the limit, replace piston also.
