Drive Plate

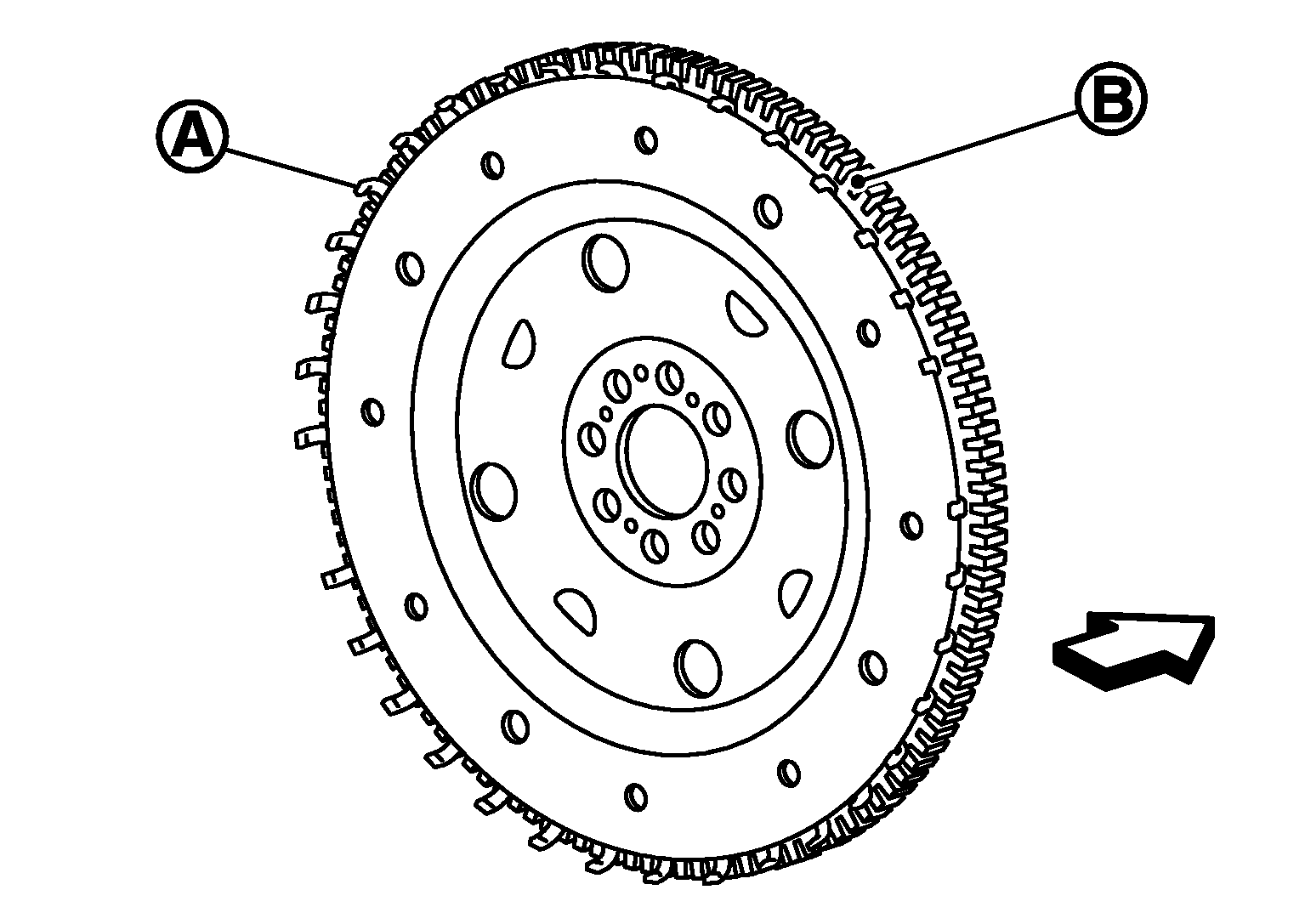

Check drive plate and signal plate (A) for deformation or damage.

GNSJPBIA2282Z-282

Courtesy of NISSAN NORTH AMERICA, INC.

B	: Ring gear
	: Engine front

CAUTION:

Never disassemble drive plate.
Never place drive plate with signal plate facing down.
When handling signal plate, take care not to damage or scratch it.
Handle signal plate in a manner that prevents it from becoming magnetized.

If damage is found, replace drive plate.
