Crankshaft RUNOUT

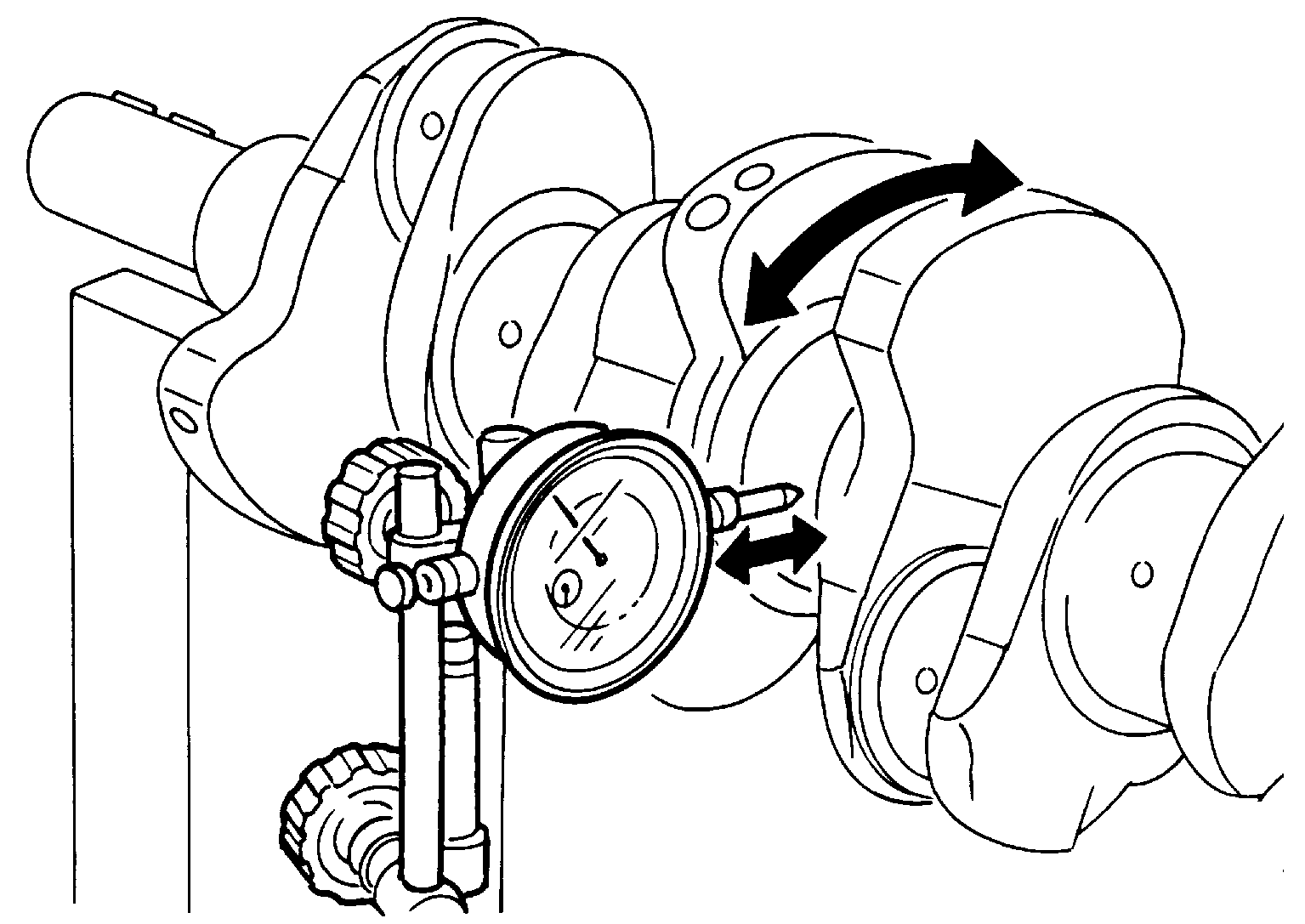

- Place V-block on precise flat table, and support the journals on both ends of crankshaft.
- Place a dial indicator straight up on the No. 3 journal.
- While rotating crankshaft, read the movement of the pointer on a dial indicator. (Total indicator reading)
Standard and limit
: Refer to Cylinder Block .
- If it exceeds the limit, replace crankshaft.
