Connecting Rod Side Clearance

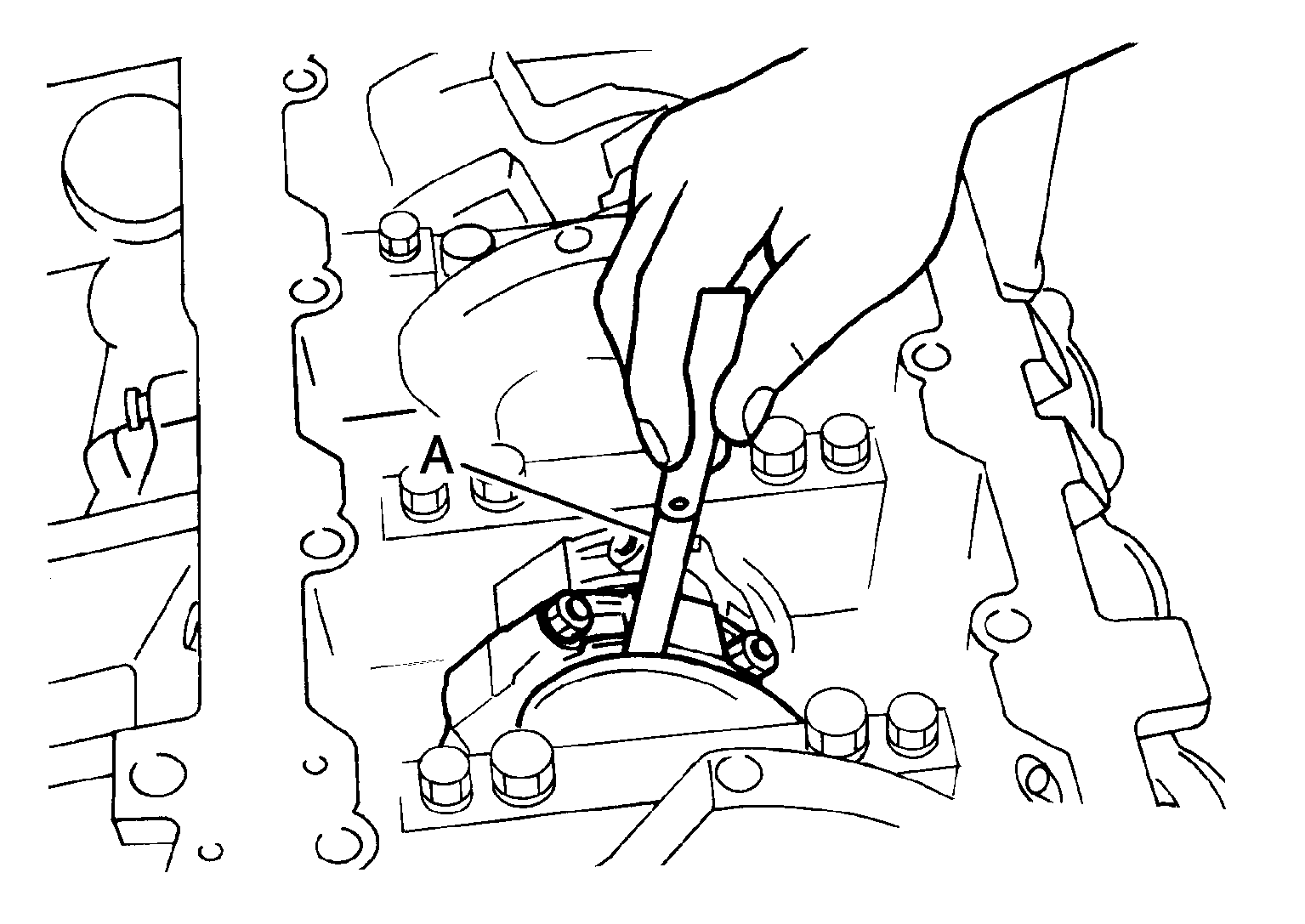

- Measure the side clearance between connecting rod and crankshaft arm with a feeler gauge (A).
Standard and limit
: Refer to Cylinder Block .
- If the measured value exceeds the limit, replace connecting rod, and measure again. If it still exceeds the limit, replace crankshaft also.
