Connecting Rod Bushing Oil Clearance

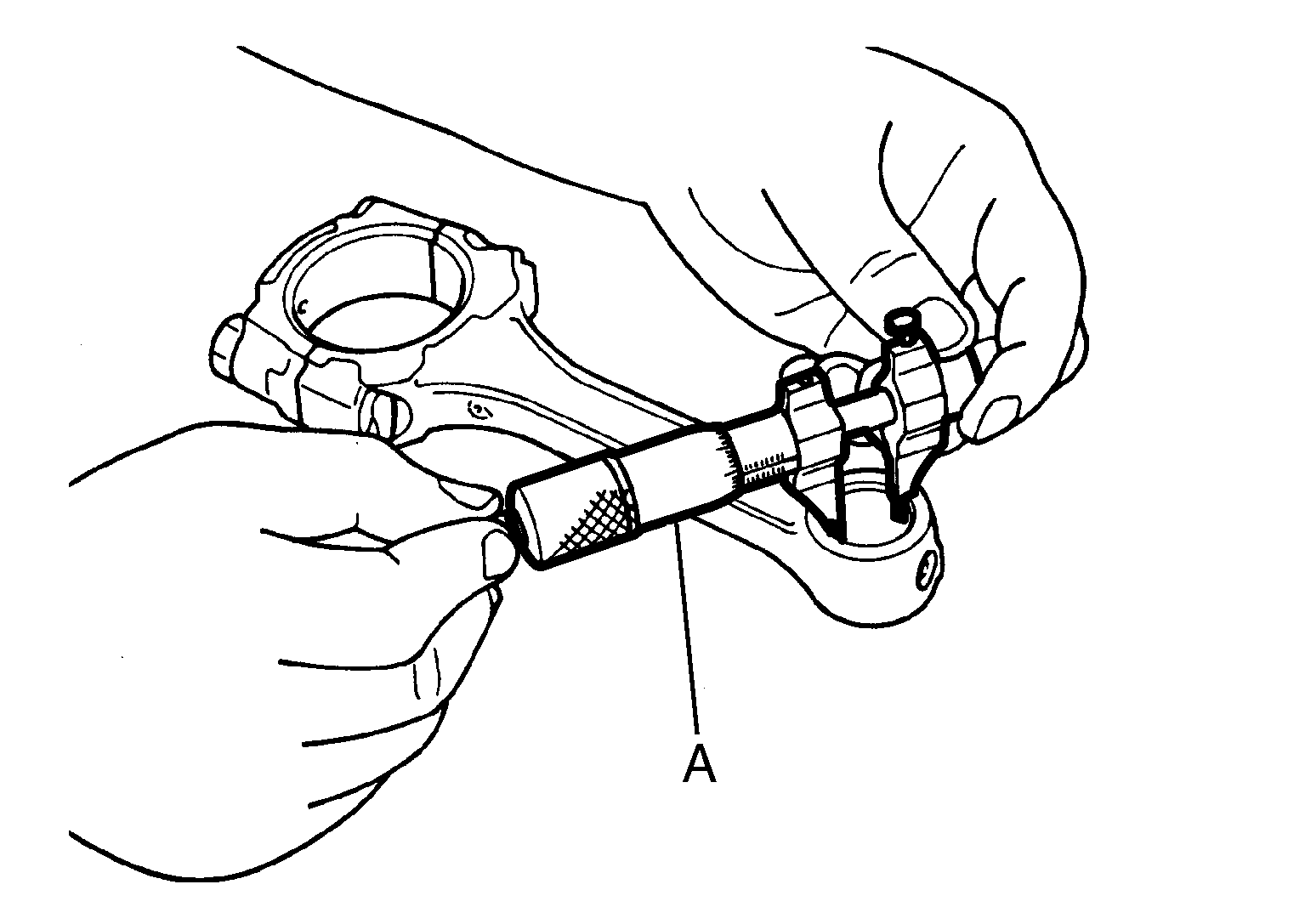

Connecting Rod Bushing Inner Diameter

Measure the inner diameter of connecting rod bushing with an inside micrometer (A).

Courtesy of NISSAN NORTH AMERICA, INC.

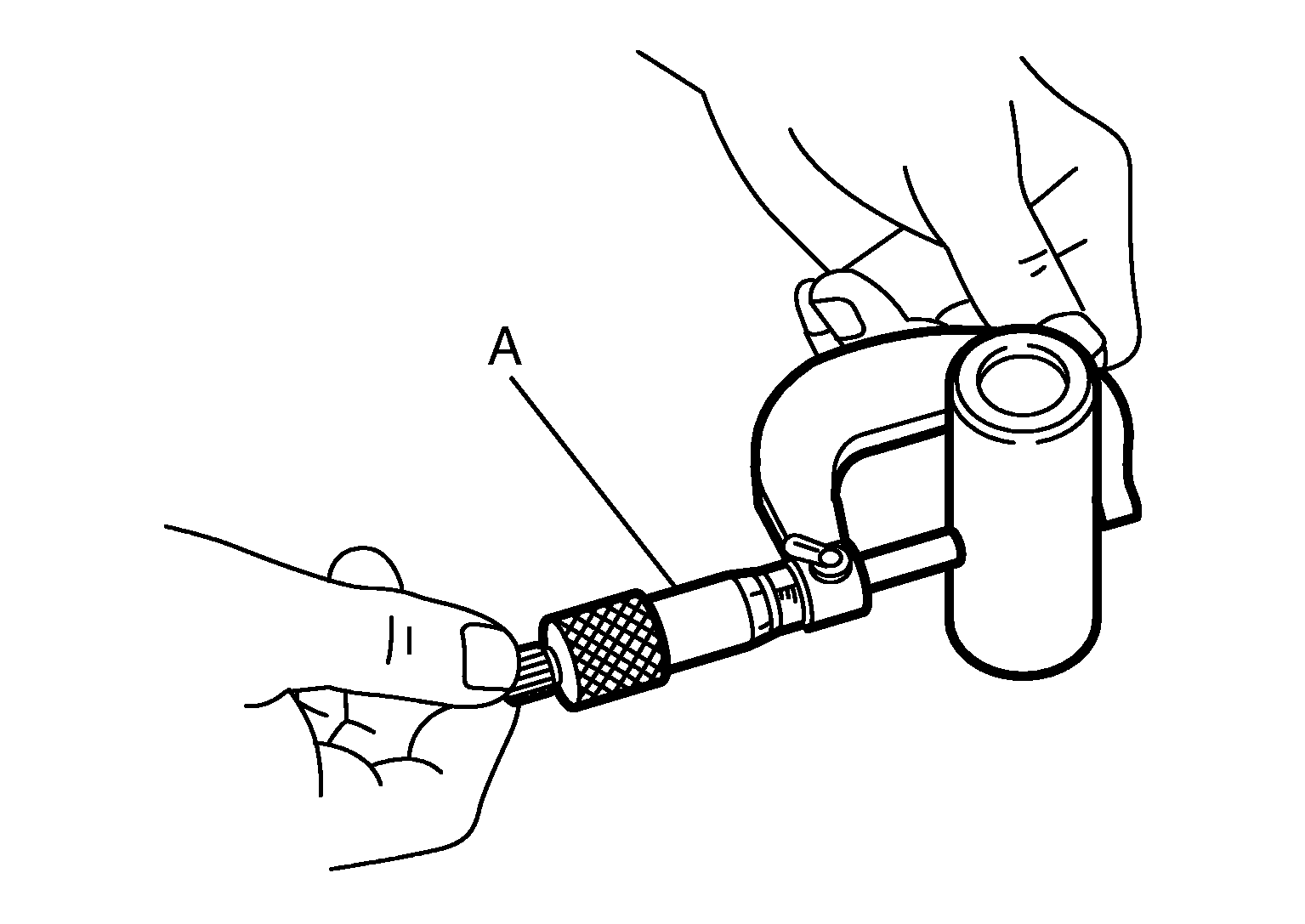

Piston Pin Outer Diameter

Measure the outer diameter of piston pin with a micrometer (A).

Courtesy of NISSAN NORTH AMERICA, INC.

Connecting Rod Bushing Oil Clearance

(Connecting rod bushing oil clearance) = (Connecting rod bushing inner diameter) - (Piston pin outer diameter)

• If the calculated value exceeds the limit, replace connecting rod assembly and/or piston and piston pin assembly.
• If replacing piston and piston pin assembly, refer to Description .
• If replacing connecting rod assembly, refer to Connecting Rod Bearing  to select the connecting rod bearing.
