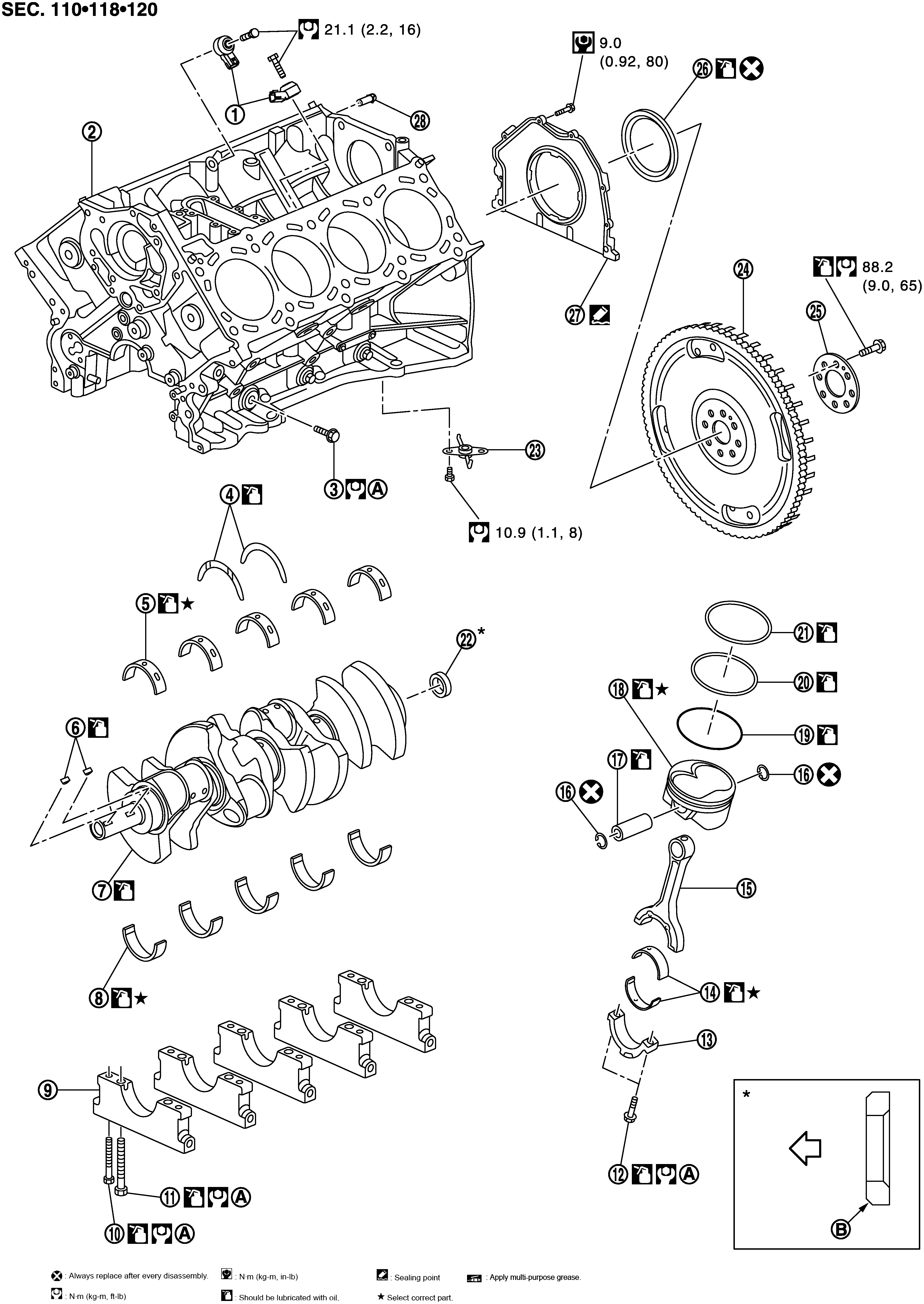

Exploded View
|
1. |
Knock sensor |
2. |
Cylinder block |
3. |
Side bolt |
|
4. |
Thrust bearing |
5. |
Main bearing (upper) |
6. |
Crankshaft key |
|
7. |
Crankshaft |
8. |
Main bearing (lower) |
9. |
Main bearing cap |
|
10. |
Main bearing cap sub bolt |
11. |
Main bearing cap bolt |
12. |
Connecting rod cap bolt |
|
13. |
Connecting rod cap |
14. |
Connecting rod bearing |
15. |
Connecting rod |
|
16. |
Snap ring |
17. |
Piston pin |
18. |
Piston |
|
19. |
Oil ring |
20. |
Second ring |
21. |
Top ring |
|
22. |
Pilot converter |
23. |
Piston oil jet |
24. |
Drive plate |
|
25. |
Reinforcement plate |
26. |
Rear oil seal |
27. |
Rear oil seal retainer |
|
28. |
Cylinder block heater (for Canada) |
||||
|
A. |
Refer to Disassembly and Assembly . |
B. |
Chamfered |
||
|
|
: Crankshaft side |
||||
|
Refer to Components for symbol marks in the figure. |
|||||
