Disassembly and Assembly: Assembly

Courtesy of NISSAN NORTH AMERICA, INC.

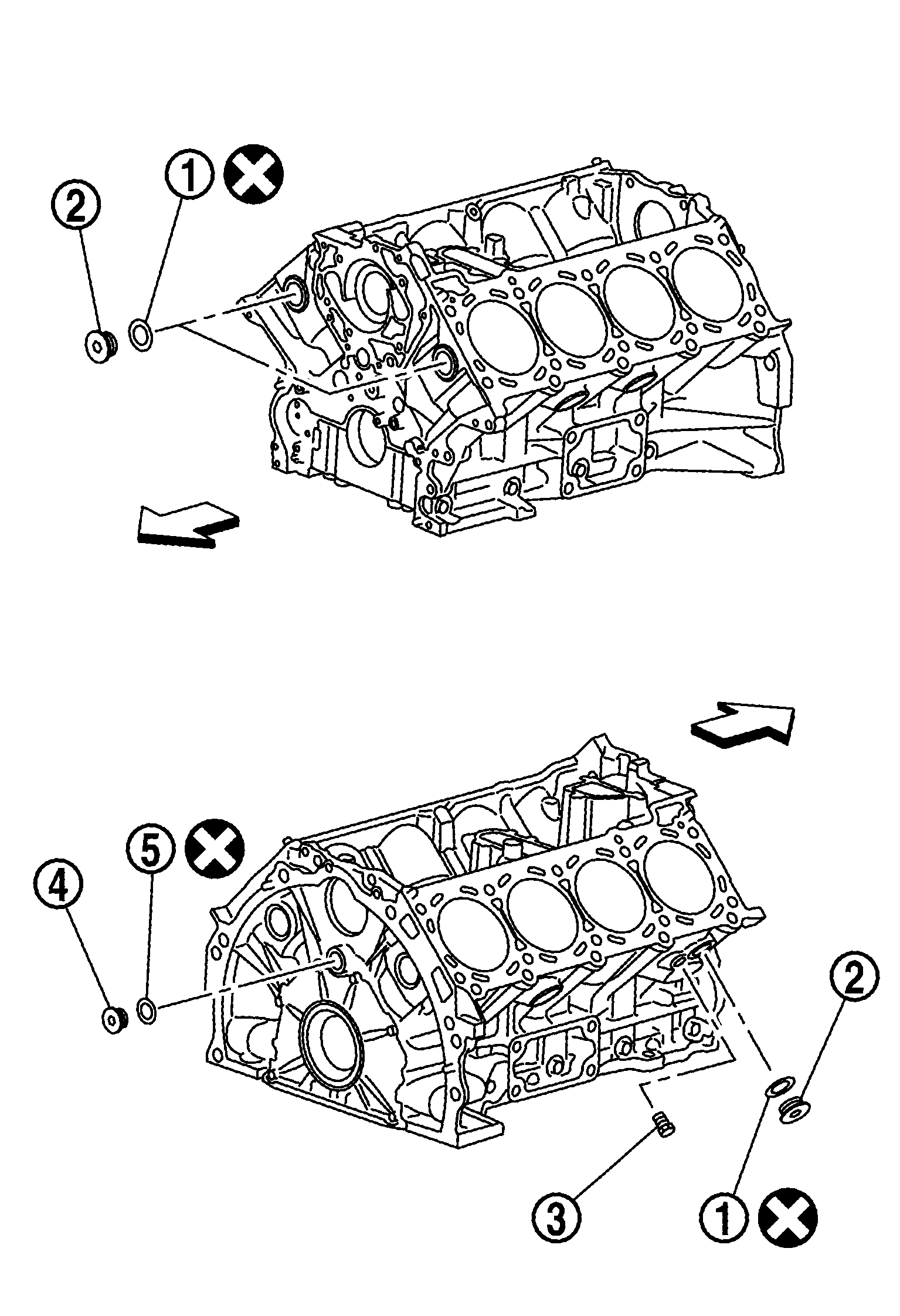

• Tighten each plug as specified below.

  Part	Tightening torque
  Plug (2)	78.0 N.m (8.0 kg-m, 58 ft-lb)
  Water drain plug (3)	19.6 N.m (2.0 kg-m, 14 ft-lb)
  Plug (4)	65 N.m (6.5 kg-m, 48 ft-lb)

• Replace washers (1), (5) with new ones.
  CAUTION: Do not reuse washers.
• Apply sealant to the thread of water drain plug (3).

  Use Genuine Liquid Gasket or equivalent.

• Apply sealant to the thread of plug (4).

  Use high strength thread locking sealant or equivalent.

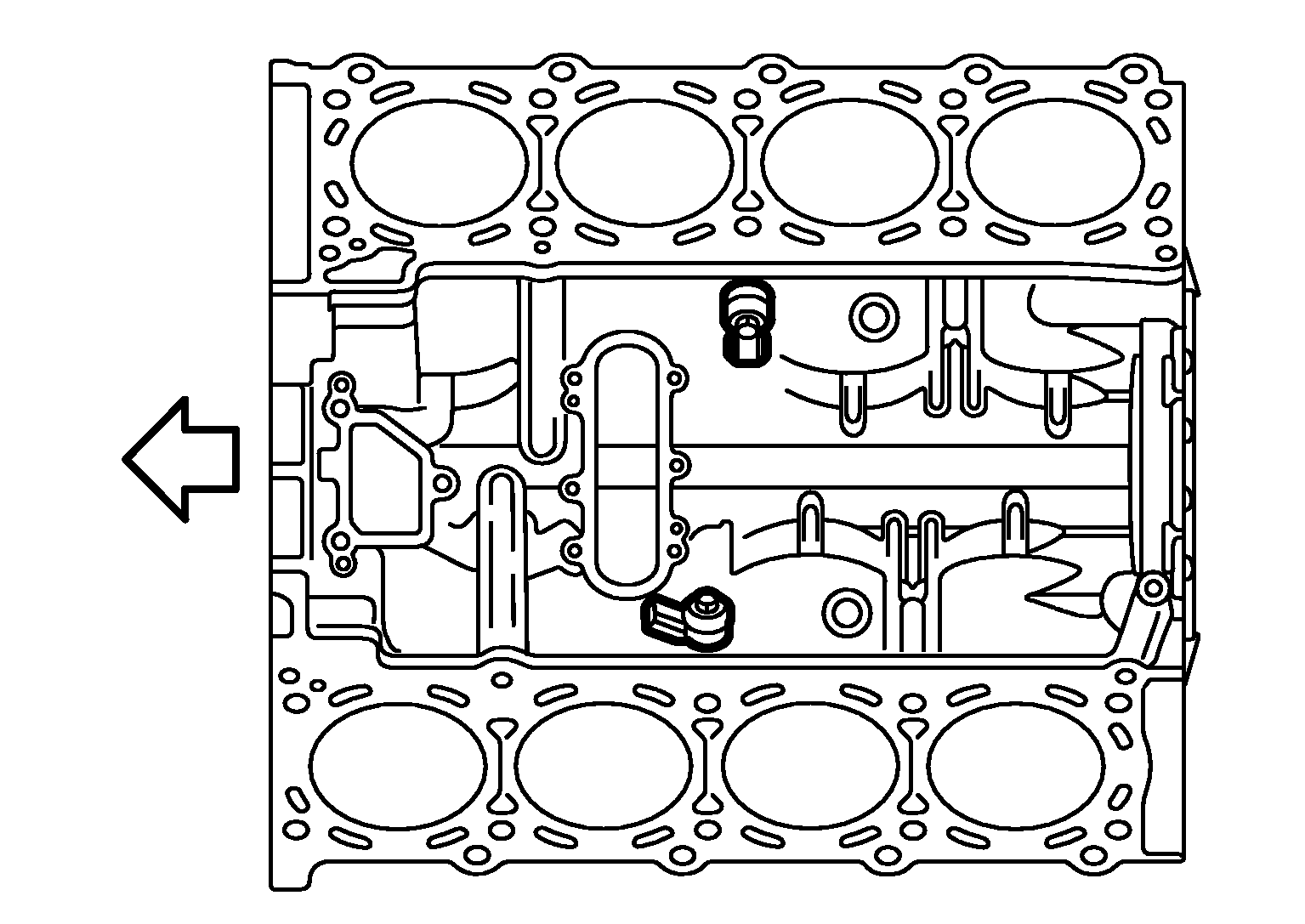

• Insert oil jet into cylinder block hole, and tighten the mounting bolt on the corner side (A) first.

  Courtesy of NISSAN NORTH AMERICA, INC.

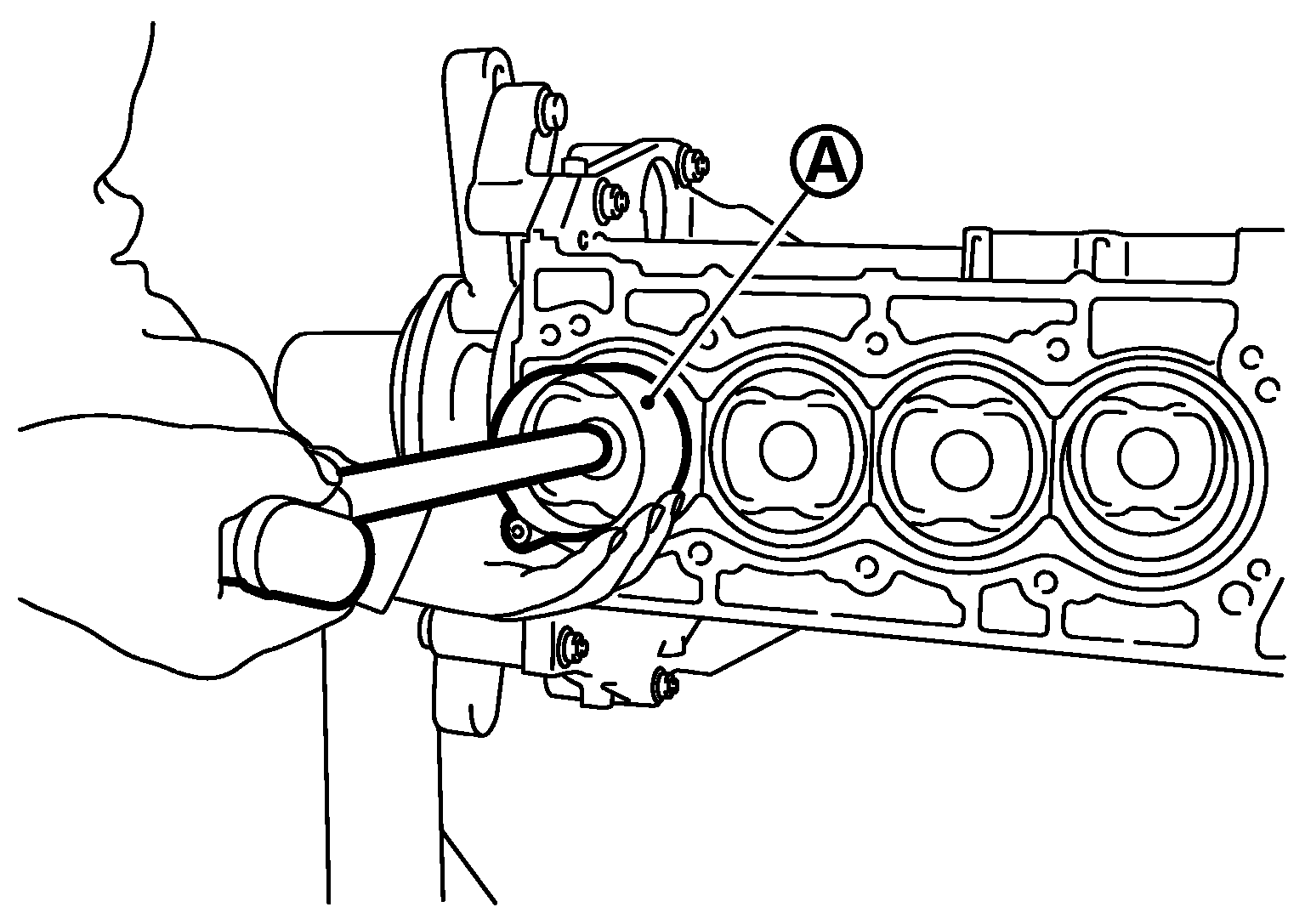

• With drift [outer diameter: approx. 35 mm (1.38 in)], press-fit as far as it will go.

  Courtesy of NISSAN NORTH AMERICA, INC.

• Press-fit pilot converter with its chamfering side facing crankshaft as shown in the figure, below.

  Courtesy of NISSAN NORTH AMERICA, INC.

  : Crankshaft side

1. Remove dust, dirt, and engine oil on bearing mating surfaces of cylinder block and main bearing caps.

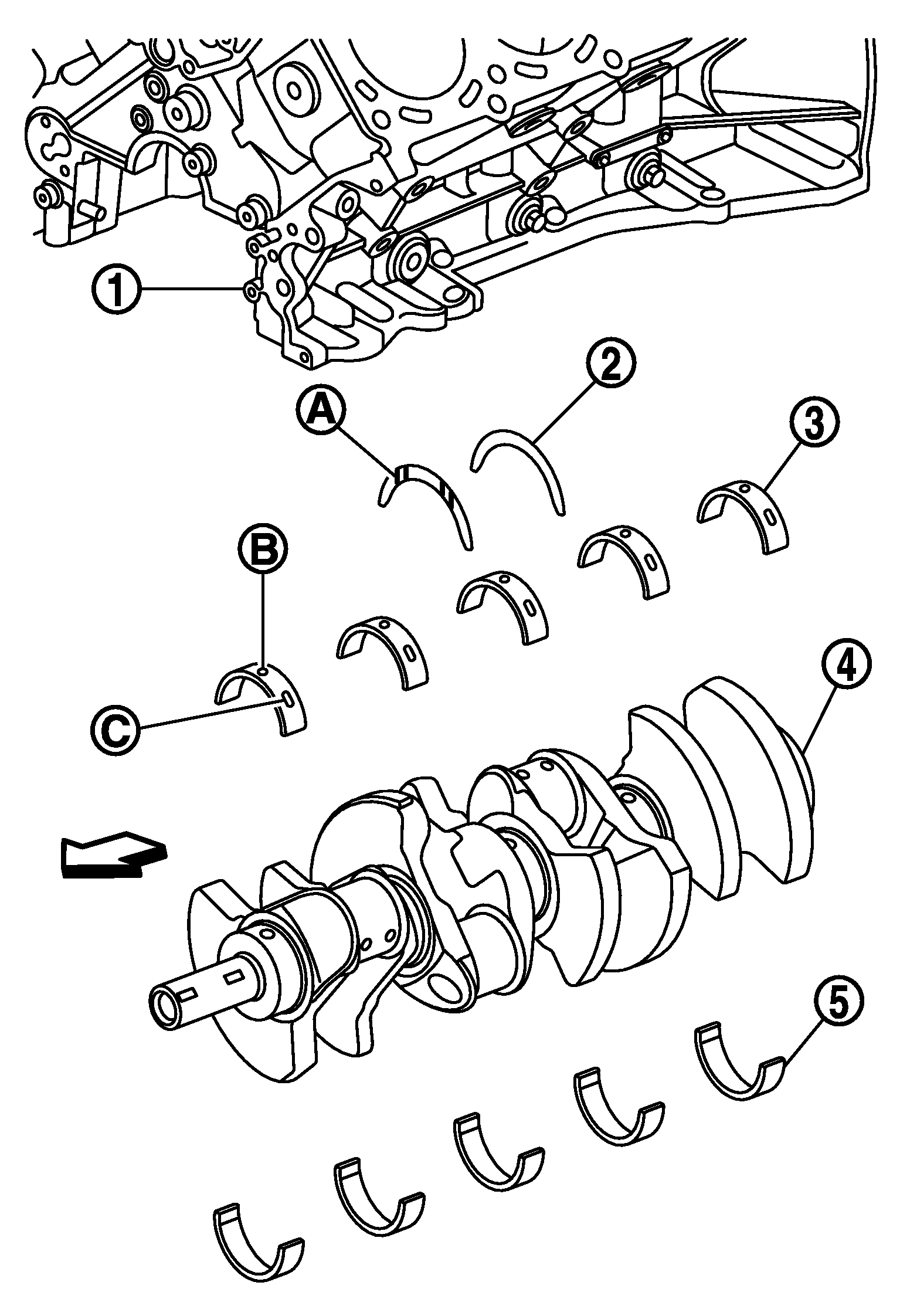

2. Install thrust bearings (2) to both sides of the No. 3 journal housing on cylinder block (1).

   Courtesy of NISSAN NORTH AMERICA, INC.

   3	: Main bearing (upper) (cylinder block side)
   4	: Crankshaft
   5	: Main bearing (lower) (main bearing cap side)
   	: Engine front

   • Install thrust bearings with the oil groove (A) facing crankshaft arm (outside).
3. Install main bearings paying attention to the direction.
   • Main bearing with oil hole (B) and groove (C) goes on cylinder block. The one without them goes on main bearing cap.
   • Before installing main bearings, apply engine oil to the bearing surface (inside). Do not apply engine oil to the back surface, but thoroughly clean it.
   • When installing, align main bearing stopper protrusion to cutout of cylinder block and main bearing.
   • Ensure the oil holes on cylinder block and those on the corresponding bearing are aligned.

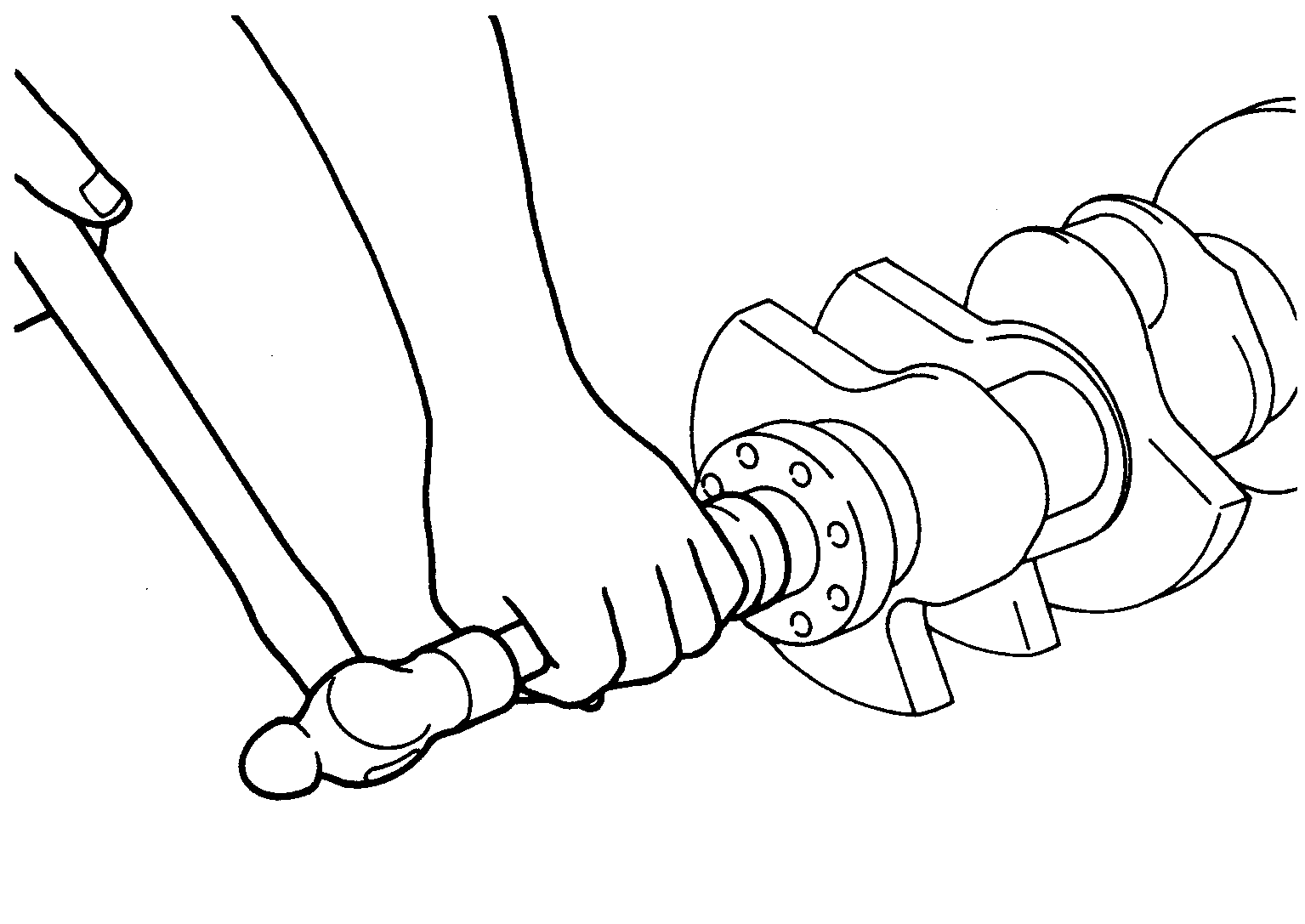

• While turning crankshaft by hand, check that it turns smoothly.

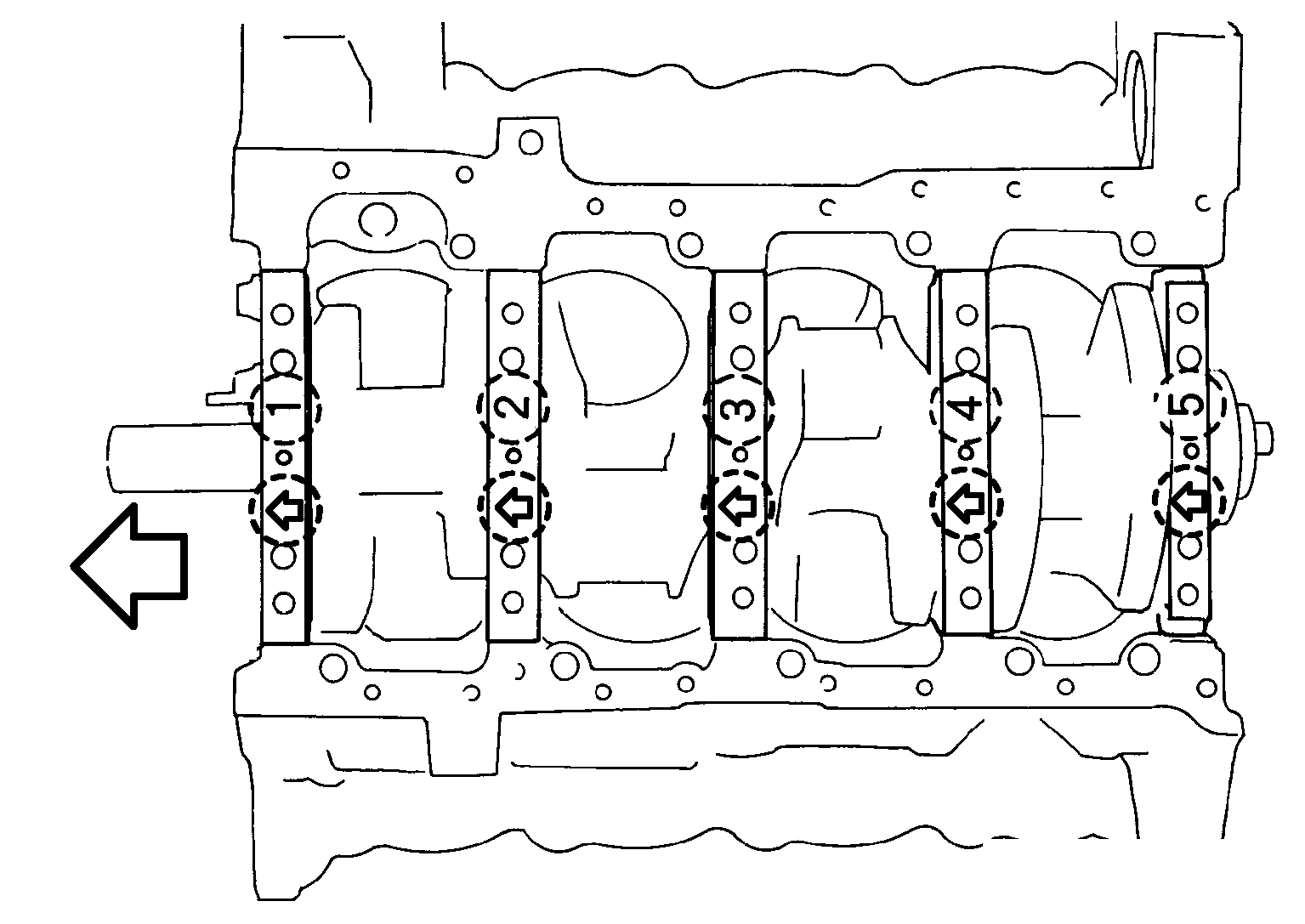

• Align the identification number to the journal position to install.

  Courtesy of NISSAN NORTH AMERICA, INC.

  : Engine front

• Install it with the front mark (indicated by stamping) facing the front of engine.
• Using plastic hammer or similar tool, tap them lightly to seat them on the installation position.
  NOTE: Main bearing cap cannot be replaced as a single parts, because it is machined together with cylinder block.

1. Apply new engine oil to threads and seat surfaces of main bearing cap bolts and sub bolts.

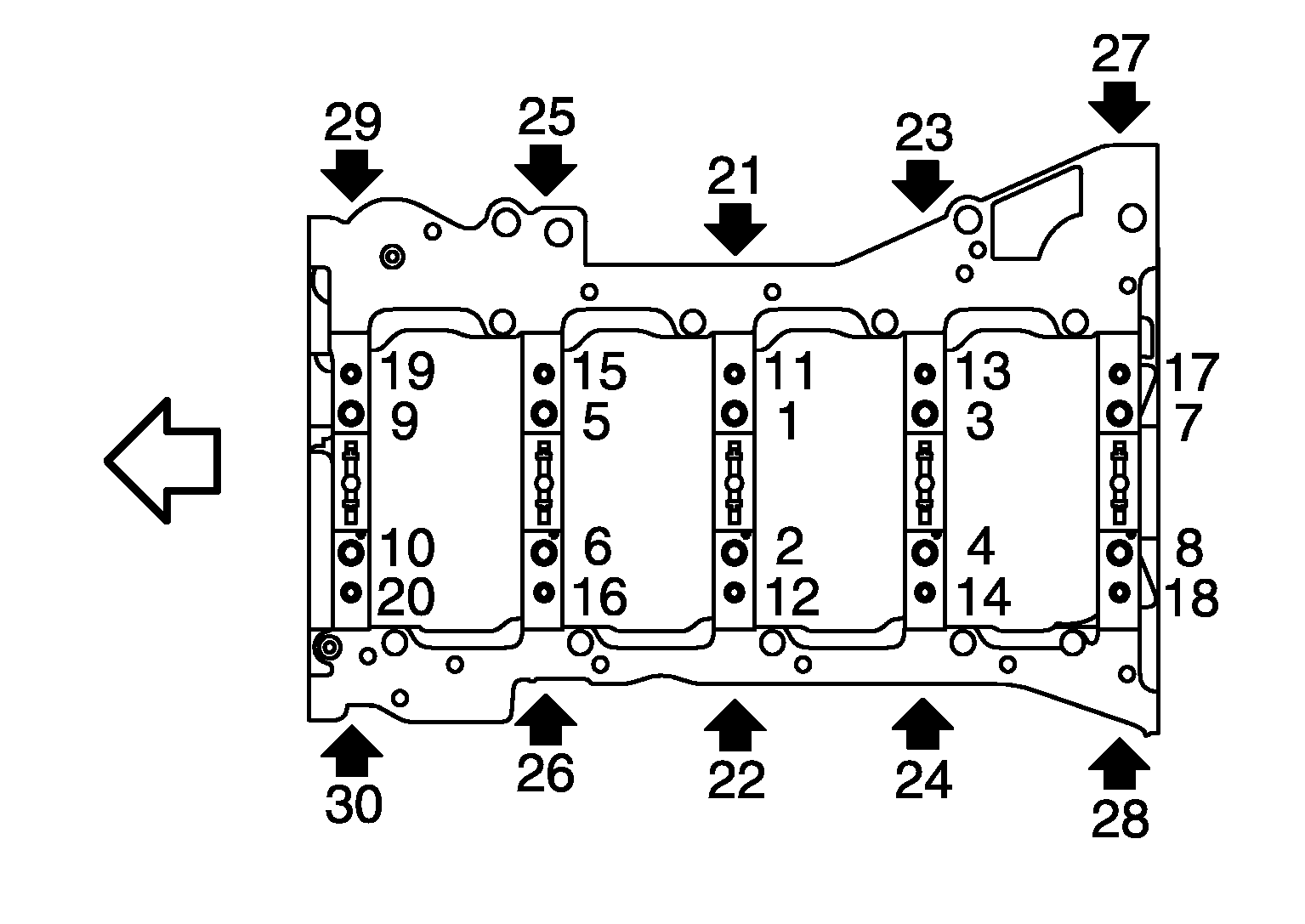

2. Tighten all bolts in order of (No. 1 - 30) temporarily.

   Courtesy of NISSAN NORTH AMERICA, INC.

   : Engine front

3. Tighten main bearing cap bolts (M12) in order of No. 1 - 10.

   : 53.9 N.m (5.5 kg-m, 40 ft-lb)

4. Tighten main bearing cap sub bolts (M9) in order of No. 11 - 20.

   : 19.6 N.m (2.0 kg-m, 14 ft-lb)

5. Tighten main bearing cap bolts (M12) in order of No. 1 - 10 (clockwise).

   Courtesy of NISSAN NORTH AMERICA, INC.

   Angle tightening: 90 degrees

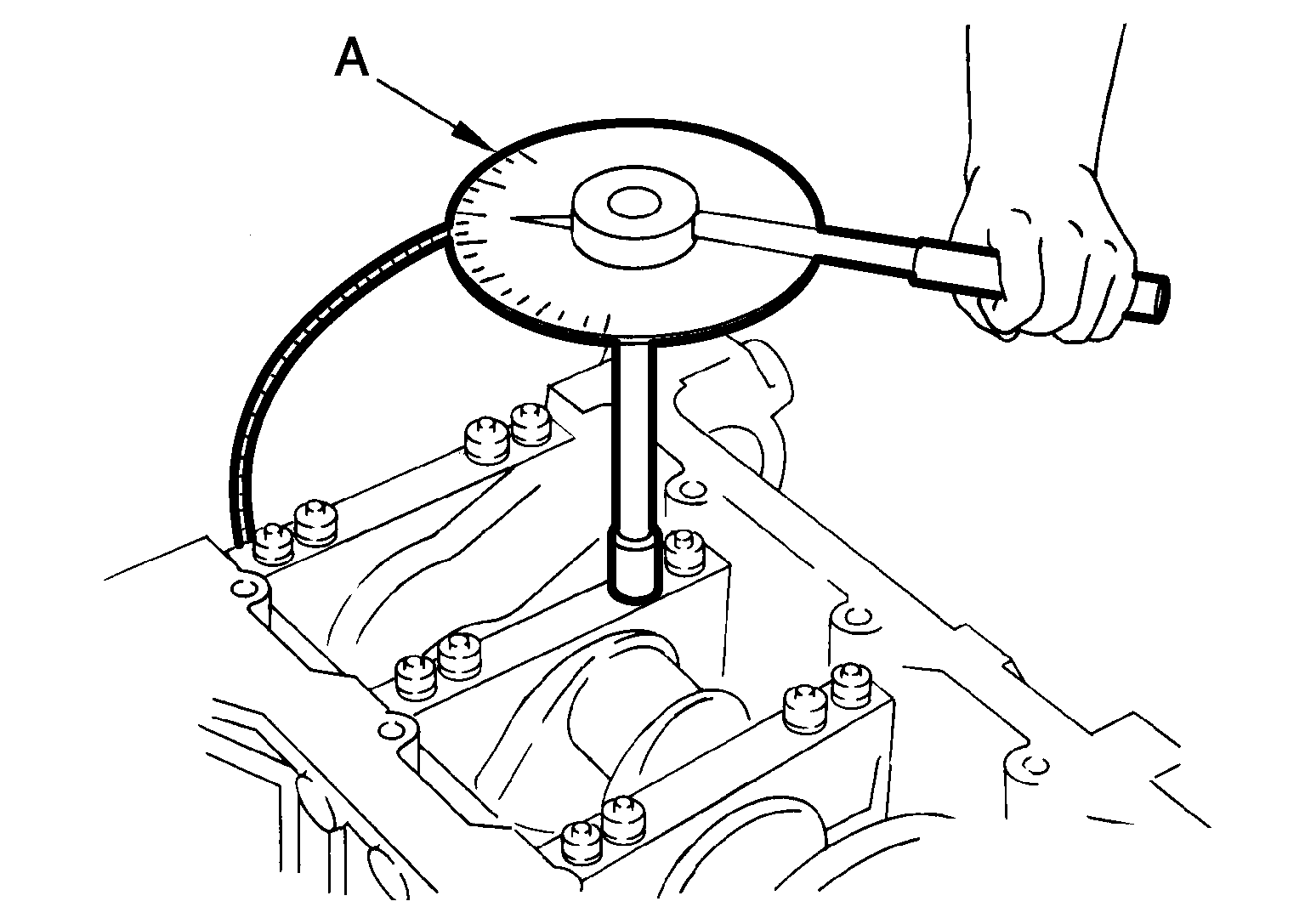

   CAUTION: Use the angle wrench [SST: KV10112100 (BT8653-A)] (A) to check tightening angle. Never make judgment by visual inspection.
6. Tighten main bearing cap sub bolts (M9) in order of No. 11 - 20. (clockwise)

   Angle tightening: 90 degrees

7. Tighten side bolts (M10) in order of No. 21 - 30.

   : 49.0 N.m (5.0 kg-m, 36 ft-lb)

   • After installing bolts, check that crankshaft can be rotated smoothly by hand.
   • Check the crankshaft end play. Refer to Cylinder Block .

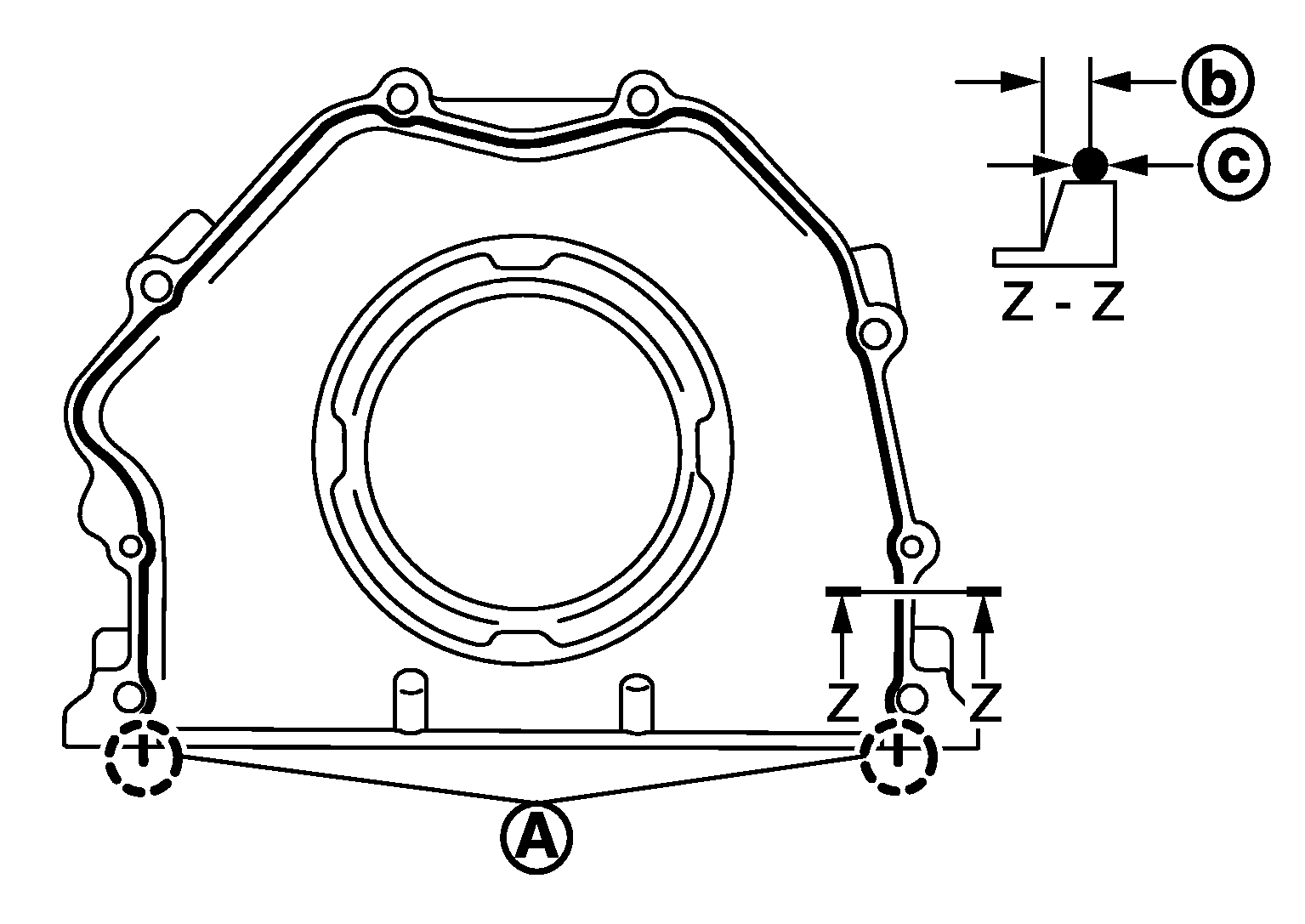

• Apply a continuous bead of liquid gasket with tube presser (commercial service tool) to rear oil seal retainer as shown in the figure, below.

  Courtesy of NISSAN NORTH AMERICA, INC.

  A	: Protrusion
  b	: 4.0 - 5.6 mm (0.157 - 0.220 in)
  c	: 3.4 - 4.4 mm (0.134 - 0.173 in)

Use Genuine RTV Silicone Sealant or an equivalent. Refer to Recommended Chemical Products and Sealants .

Courtesy of NISSAN NORTH AMERICA, INC.

• Apply new engine oil to both oil seal lip (A) and dust seal lip (B).
• Install it so that each seal lip is oriented as shown in the figure, above.
  CAUTION: Be careful not to scratch or make burrs on circumference of oil seal.
• Press in rear oil seal (1) to the position as shown in the figure, below.

  Courtesy of NISSAN NORTH AMERICA, INC.

  B	: Rear oil seal retainer rear end face
  a	: 0 - 0.5 mm (0 - 0.020 in)

• Using a suitable drift [outer diameter: 101 mm (3.98 in)].
• Check the garter spring is in position and seal lips are not inverted.

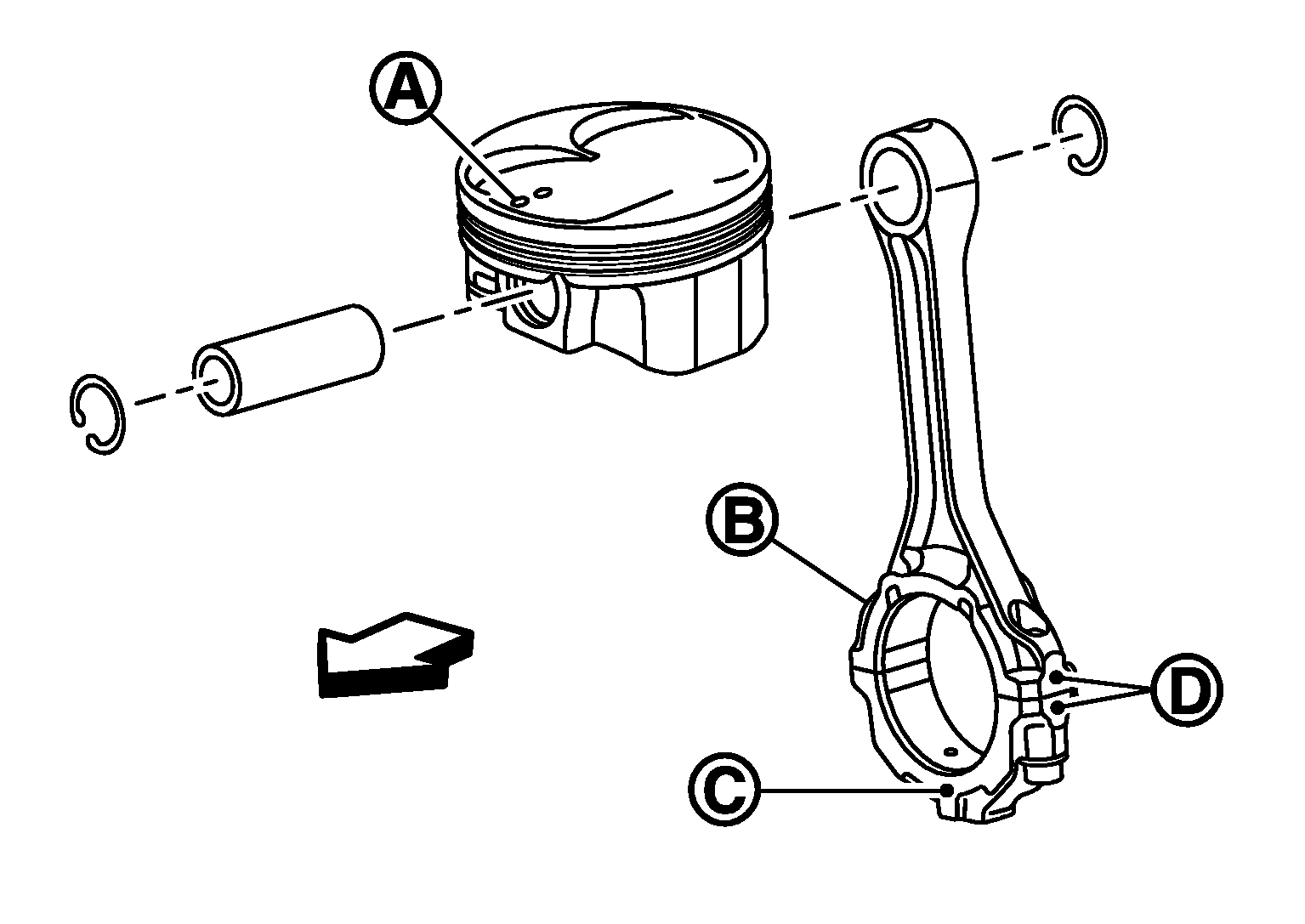

• Assemble so that the front mark (A) on the piston head and the cylinder number (D) on connecting rod are positioned as shown in the figure, below.

  Courtesy of NISSAN NORTH AMERICA, INC.

  B	: Oil hole
  C	: Front mark
  	: Engine front

1. Using snap ring pliers, install new snap ring to the groove of piston rear side.
   • Insert it fully into groove to install.
2. Install piston to connecting rod.
   • Using an industrial use dryer or similar tool, heat piston until piston pin can be pushed in by hand without excess force [approximately 60 to 70 deg. C (140 to 158 deg. F)]. From the front to the rear, insert piston pin into piston and connecting rod.
3. Install new snap ring to the groove of the piston front side.
   • Insert it fully into groove to install.
   • After installing, check that connecting rod moves smoothly.

Courtesy of NISSAN NORTH AMERICA, INC.

• If there is stamped mark on ring, mount it with marked side up.

  Courtesy of NISSAN NORTH AMERICA, INC.

  Stamped mark:
  Top ring (A)	: 1 K
  Second ring (B)	: 2 K

• Position each ring with the gap as shown in the above figure, referring to the piston front mark (D).

  Courtesy of NISSAN NORTH AMERICA, INC.

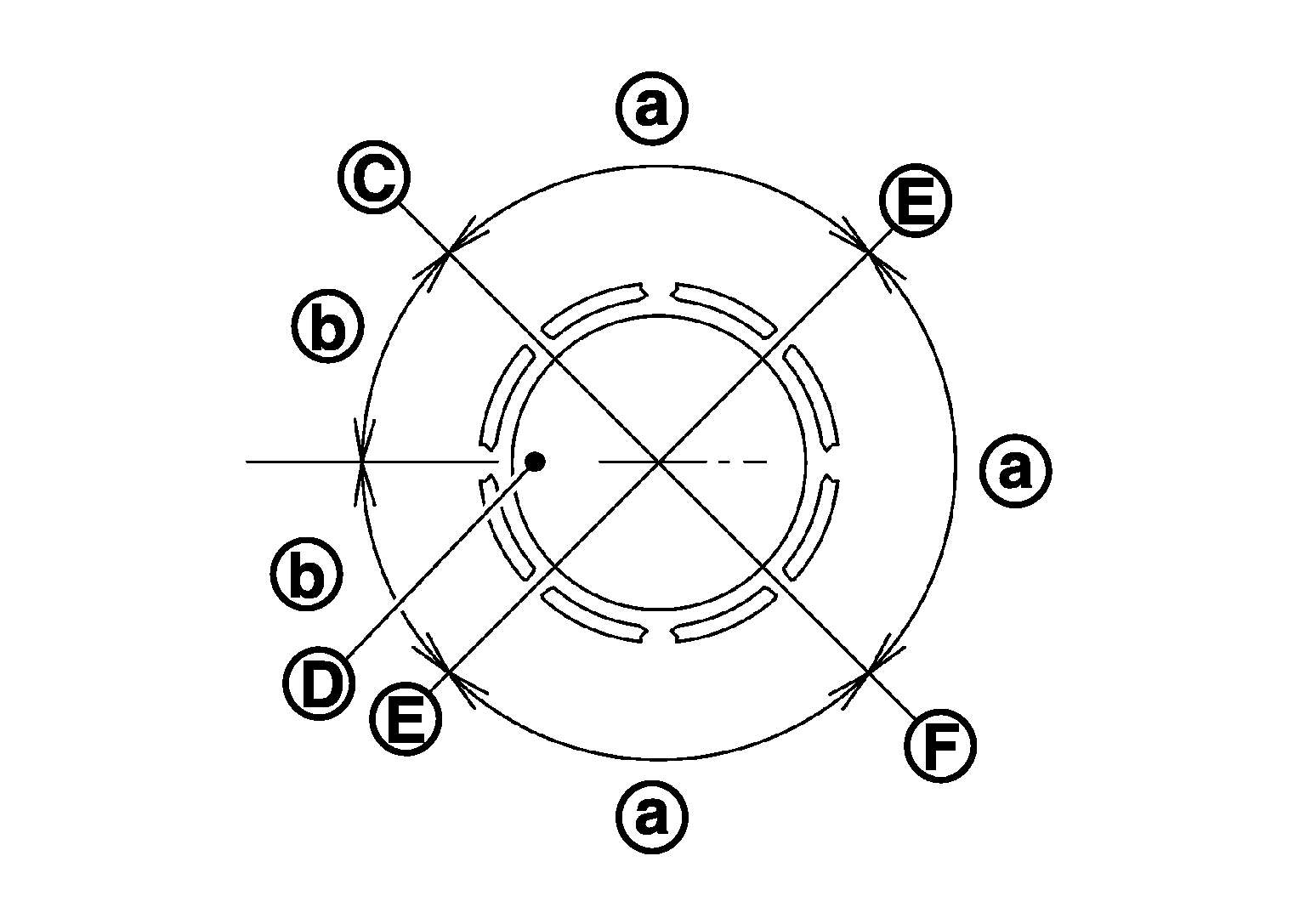

  C	: Top ring gap
  E	: Oil ring upper or lower rail gap (either of them)
  F	: Second ring and oil ring spacer gap
  a	: 90 degrees
  b	: 45 degrees

• Check the piston ring side clearance. Refer to Inspection .

• Before installing connecting rod bearings, apply engine oil to the bearing surface (inside). Do not apply engine oil to the back surface, but thoroughly clean it.

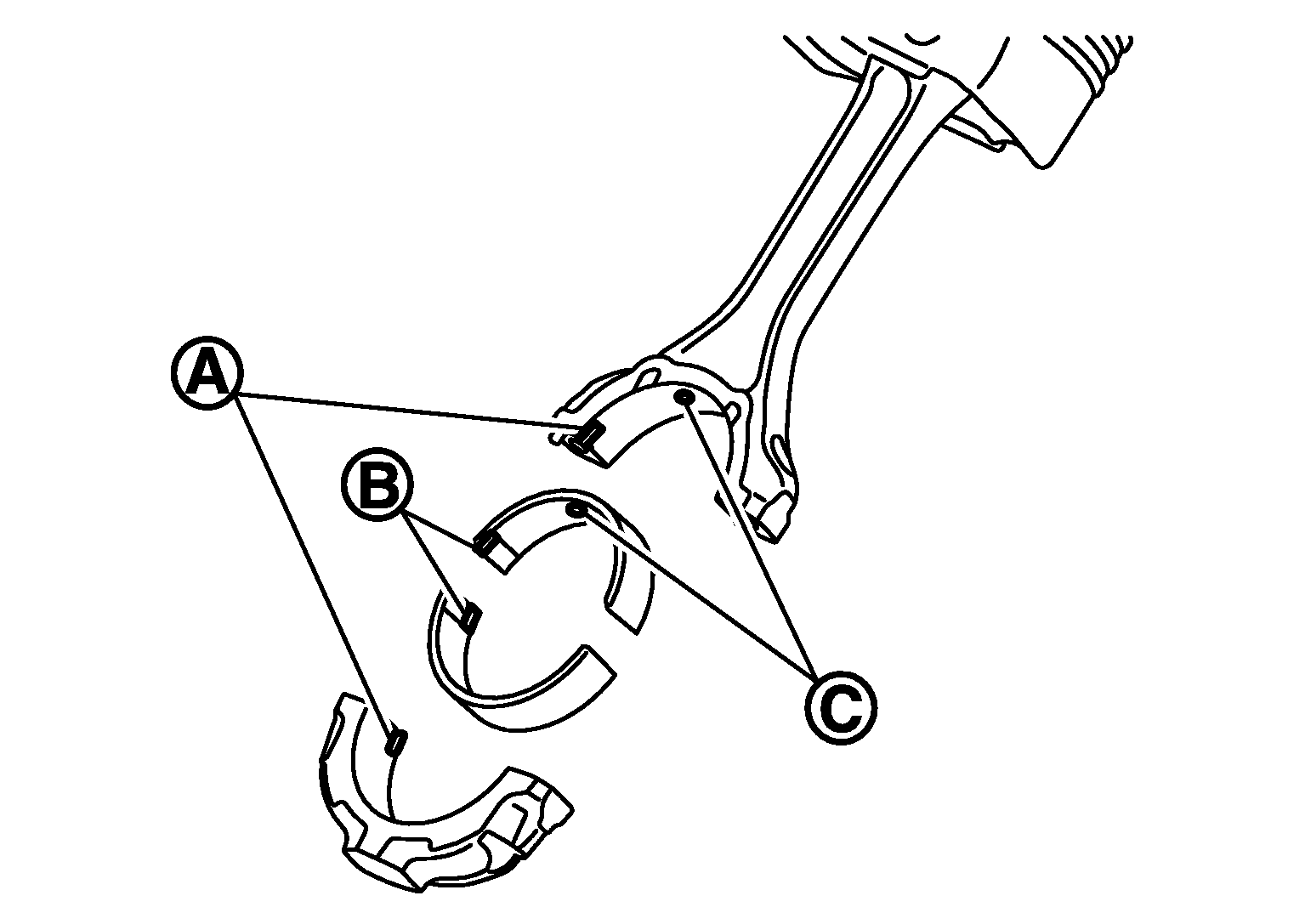

• When installing, align connecting rod bearing stopper protrusion (B) with cutout (A) of connecting rods and connecting rod bearing caps to install.

  Courtesy of NISSAN NORTH AMERICA, INC.

• Ensure the oil hole (C) on connecting rod and that on the corresponding bearing are aligned.

• Position crankshaft pin corresponding to connecting rod to be installed onto the bottom dead center.
• Apply engine oil sufficiently to the cylinder bore, piston and crankshaft pin journal.
• Match the cylinder position with the cylinder number on connecting rod to install.
• Be sure that front mark on piston crown is facing the front of the engine.

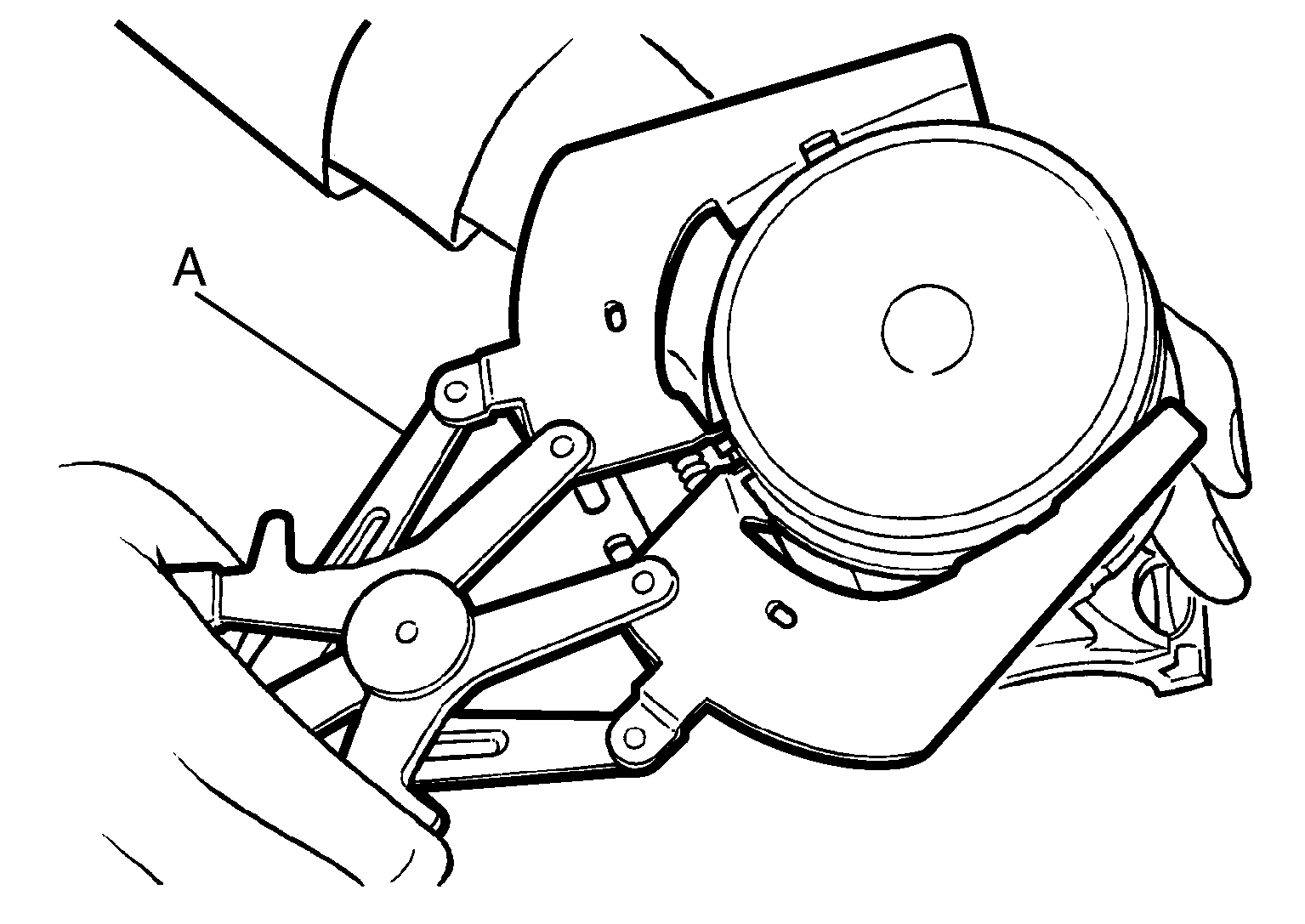

• Using a piston ring compressor [SST: EM03470000 (J-8037)] (A) or suitable tool, install piston with the front mark on the piston crown facing the front of the engine.

  Courtesy of NISSAN NORTH AMERICA, INC.

• Match the stamped cylinder number marks on connecting rod with those on connecting rod bearing cap to install.

  Courtesy of NISSAN NORTH AMERICA, INC.

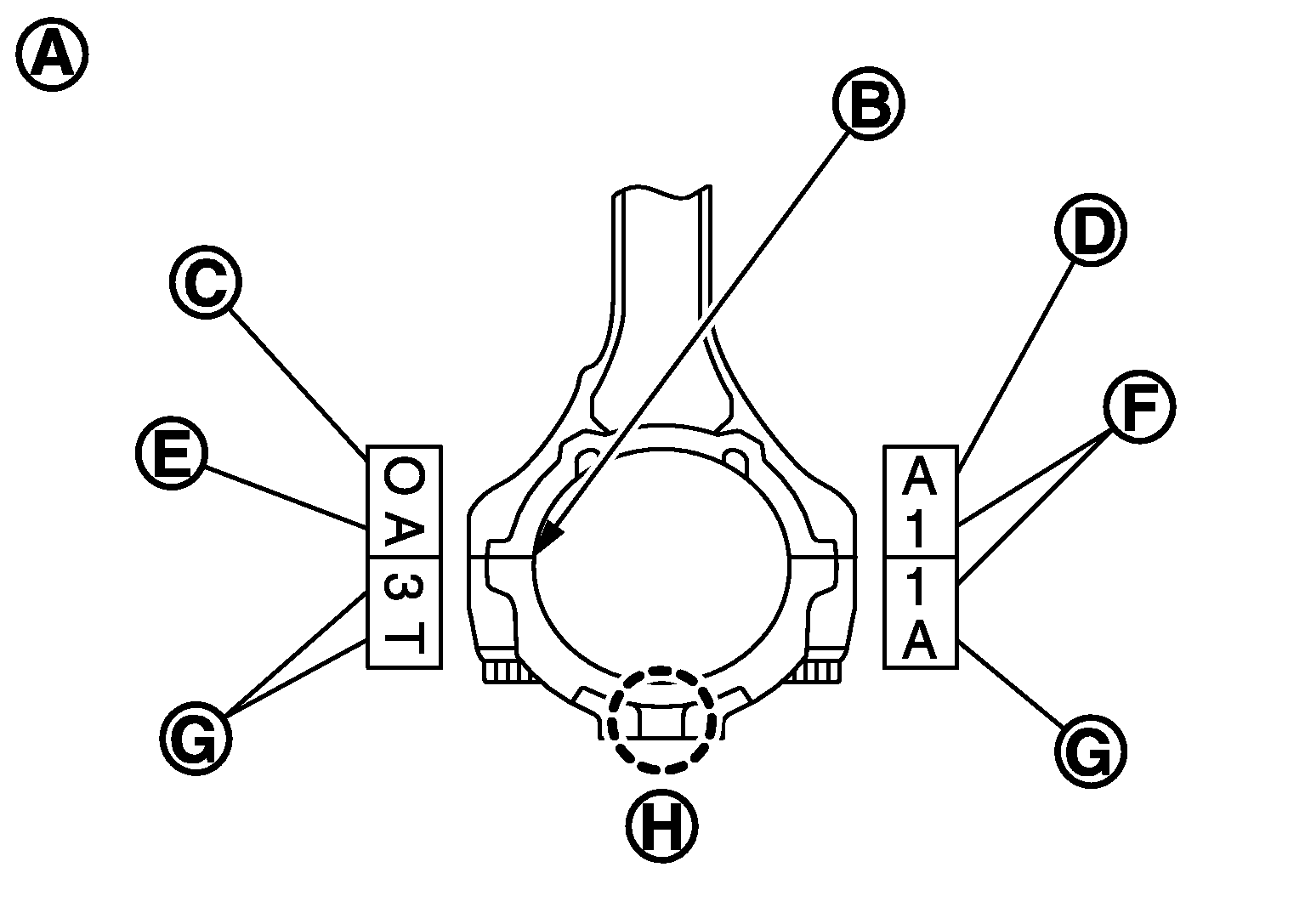

  A	: Sample codes
  B	: Bearing stopper groove
  C	: Small-end diameter grade
  D	: Big-end diameter grade
  E	: Weight grade
  F	: Cylinder No.
  G	: Management code

• Be sure that front mark (H) on connecting rod bearing cap is facing the front of the engine.

1. Inspect the outer diameter of connecting rod bolt. Refer to Inspection .
2. Apply engine oil to the threads and seats of connecting rod bolts.
3. Tighten connecting rod bolts.

   : 28.4 N.m (2.9 kg-m, 21.0 ft-lb)

4. Completely loosen connecting rod bolts.

   : 0 N.m (0 kg-m, 0 ft-lb)

5. Tighten connecting rod bolts.

   : 24.5 N.m (2.5 kg-m, 18.0 ft-lb)

6. Tighten connecting rod bolts. (clockwise)

   Angle tightening: 90 degrees

   CAUTION: Always use the angle wrench [SST: KV10112100 (BT8653-A)]. Never make judgment by visual inspection.
   • After tightening connecting rod bolts, check that crankshaft rotates smoothly.
   • Check the connecting rod side clearance. Refer to Inspection .

• Install knock sensors in the direction shown in the figure, below.

  Courtesy of NISSAN NORTH AMERICA, INC.

  : Engine front

• After installing knock sensor, connect harness connector, and lay it out to front of the engine.

• Install drive plate (4) and reinforcement plate (3) as shown in the figure, below.

  Courtesy of NISSAN NORTH AMERICA, INC.

  2	: Pilot converter
  A	: Rounded
  	: Engine front

• When installing drive plate to crankshaft (1), be sure to correctly align crankshaft side dowel pin and drive plate side dowel pin hole.
  CAUTION: If these are not aligned correctly, engine runs roughly and "MI" illuminates.
• Holding ring gear with the ring gear stopper [SST: KV10119200 (J-49277)].
• Tighten the mounting bolts crosswise over several times.
