Removal and Installation: Installation

Note the following item, and install in the reverse order of removal.

Intake Manifold

Tighten in numerical order as shown in the figure, below.

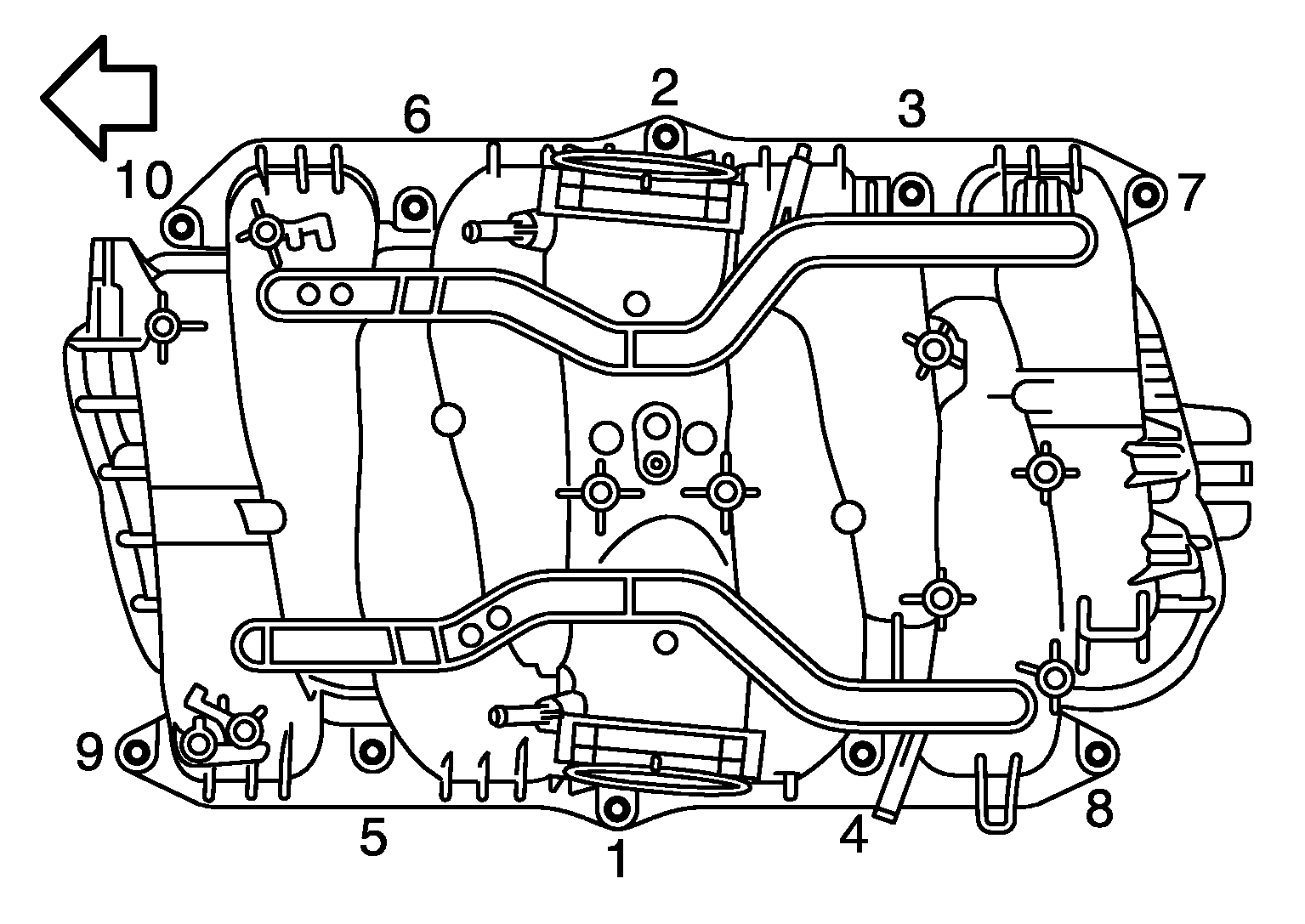

Fig 1: Intake Manifold Mounting Bolt Tightening Sequence

Courtesy of NISSAN NORTH AMERICA, INC.

Electric Throttle Control Actuator

• Tighten in numerical order as shown in the figure, below.

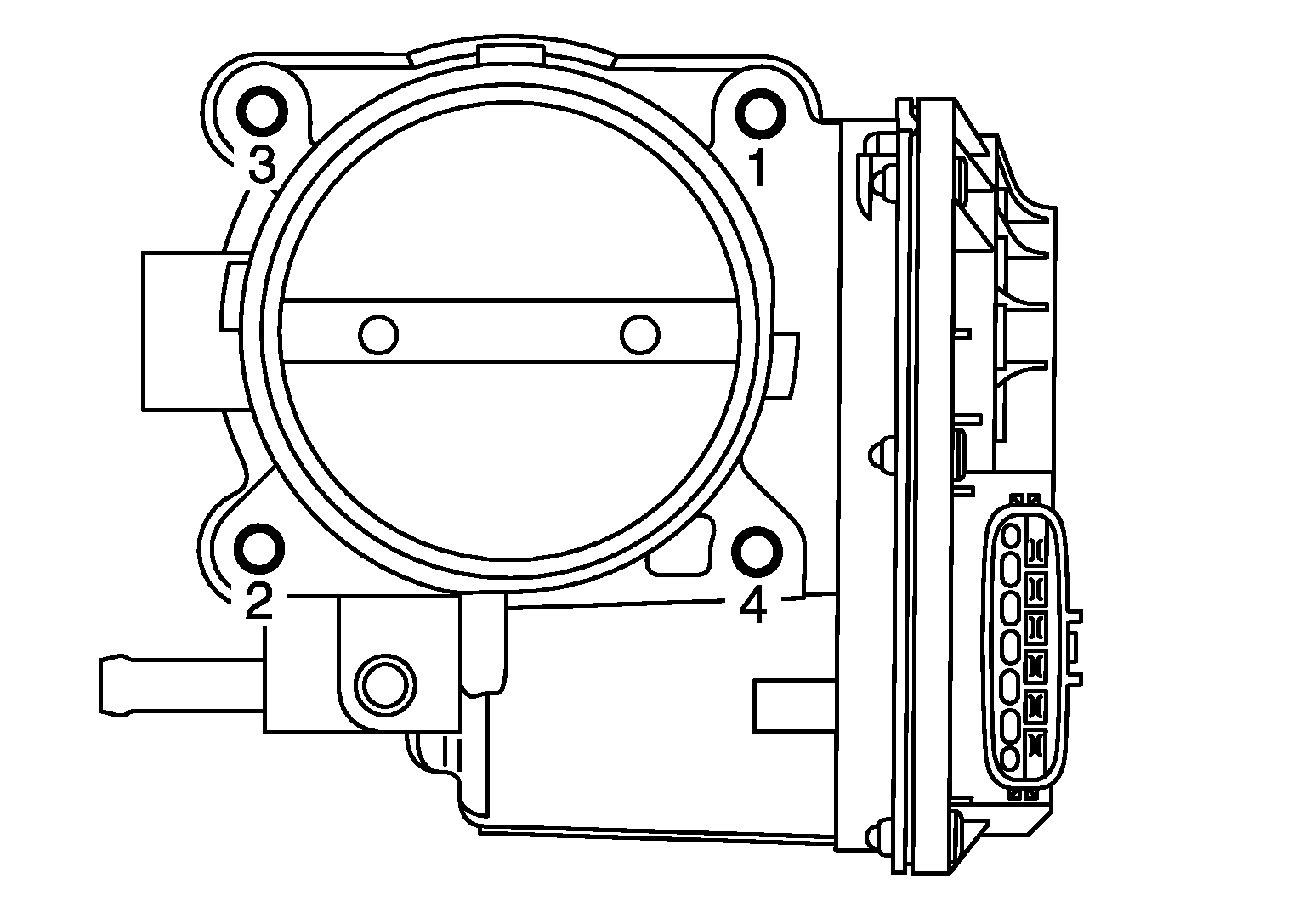

  Fig 2: Electric Throttle Control Actuator Bolts Tightening Sequence

  Courtesy of NISSAN NORTH AMERICA, INC.
  NOTE:

  • The figure shows the electric throttle control actuator (bank 1) viewed from the air duct side.
  • Viewed from the air duct side, the order of tightening mounting bolts of electric throttle control actuator (bank 1) is the same as that of the electric throttle control actuator (bank 2).
• Perform the "Throttle Valve Closed Position Learning" when harness connector of electric throttle control actuator is disconnected. Refer to Description .
• Perform the "Idle Air Volume Learning" and "Throttle Valve Closed Position Learning" when electric throttle control actuator is replaced. Refer to Description and Description .

Water Hose

Insert hose by 27 to 32 mm (1.06 to 1.26 in) from connector end.

Vacuum Hose

Refer to Inspection .
