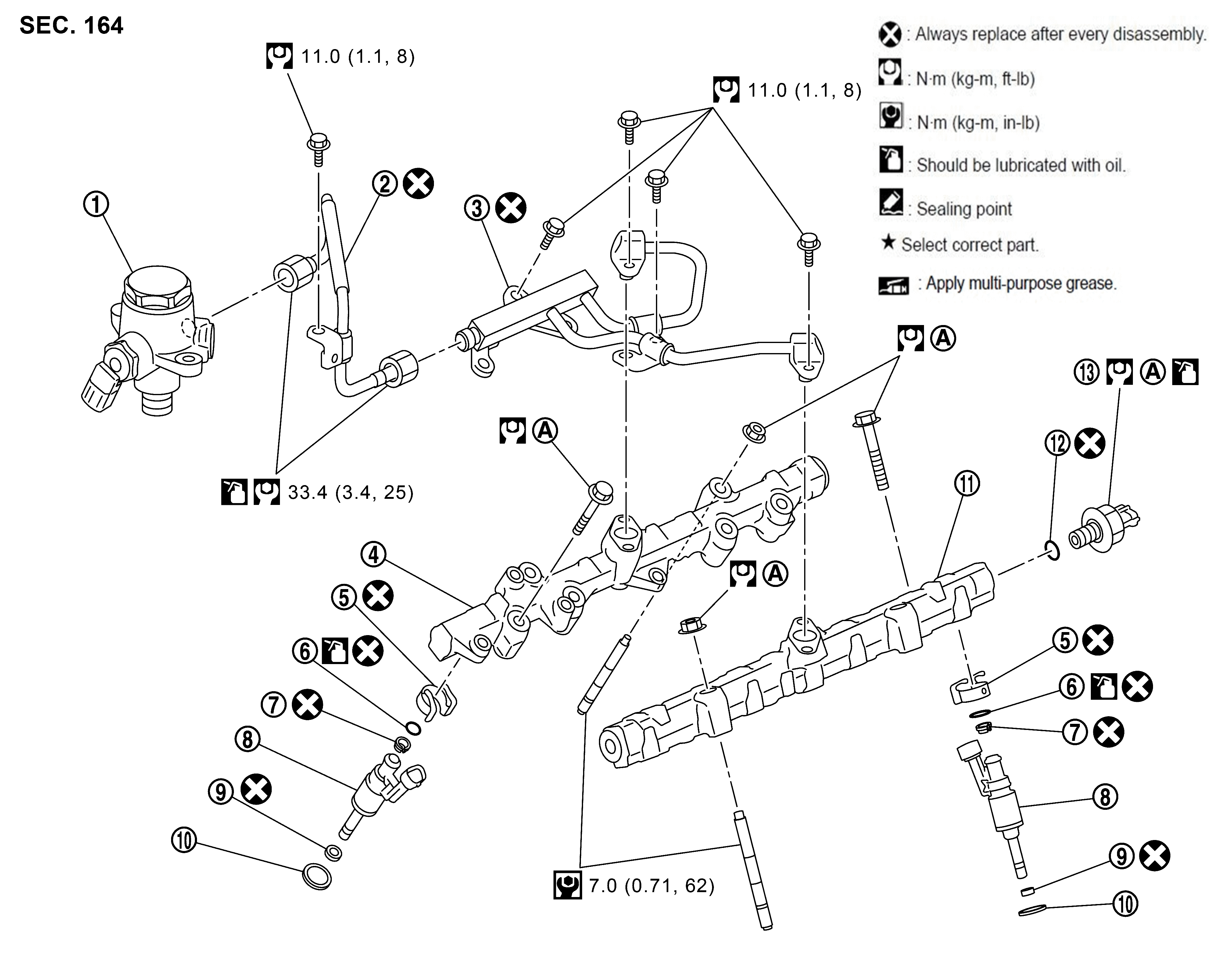

Exploded View
|
1. |
High pressure fuel pump |
2. |
Fuel feed tube (pump side) |
3. |
Fuel feed tube (bank side) |
|
4. |
Fuel rail (bank 2) |
5. |
Injector holder |
6. |
O-ring (blue) |
|
7. |
Back up ring |
8. |
Fuel injector |
9. |
Seal ring |
|
10. |
Insulator |
11. |
Fuel rail (bank 1) |
12. |
Gasket |
|
13. |
Fuel rail pressure sensor |
||||
|
A. |
Comply with the installation procedure when tightening. Refer to Removal and Installation . |
||||
|
Refer to Components for symbols in the figure. |
|||||
CAUTION:
- Never remove or disassemble parts unless instructed as shown in the figure, above.
- Be sure to follow the tightening instruction to avoid fuel leakage.
