Removal and Installation: Installation

Note the following, and install in the reverse order of removal.

CAUTION:

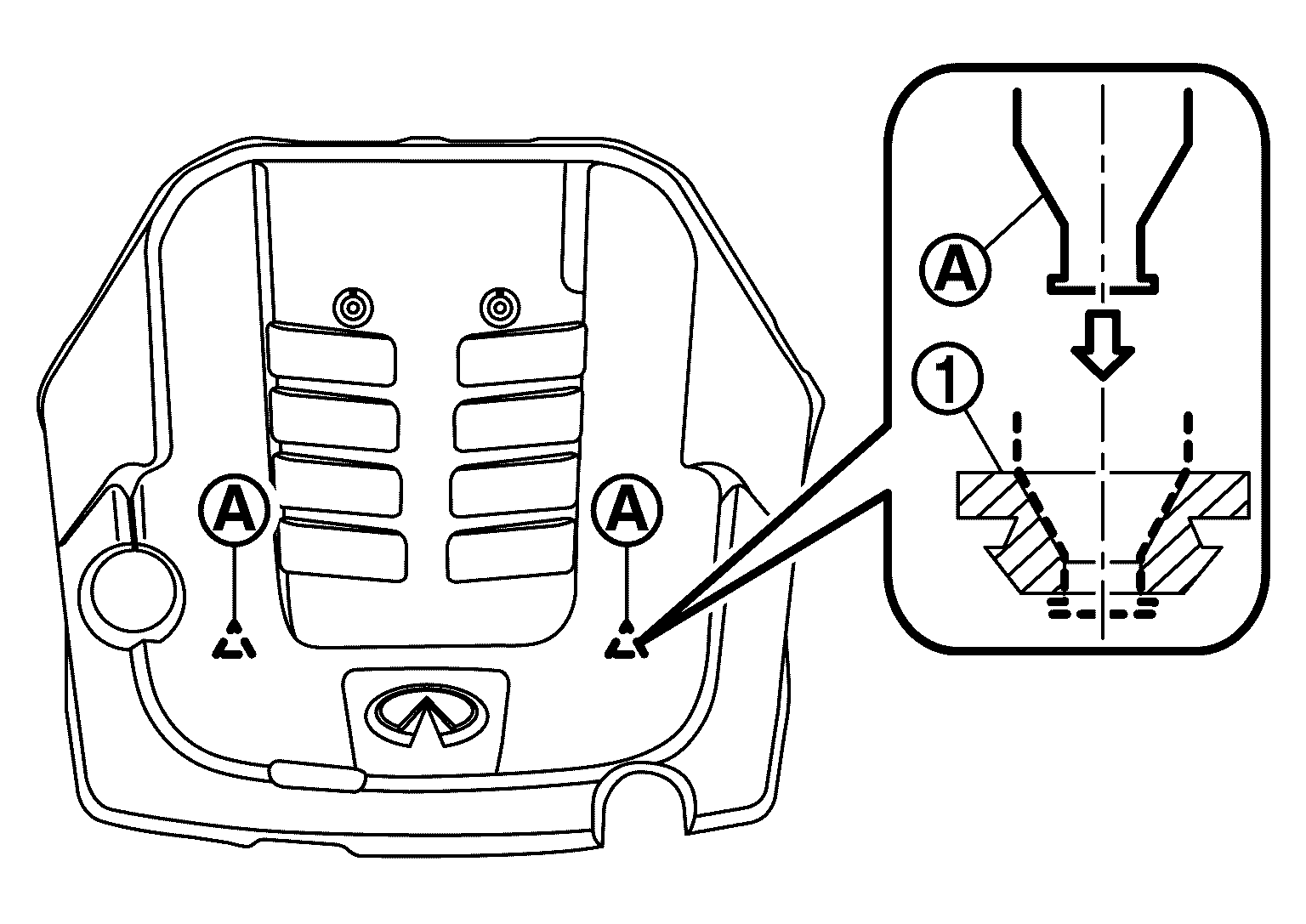

  • Align the fixing pins (A) and mounting rubbers (1).
    GNSJSBIA6777Z-777Courtesy of NISSAN NORTH AMERICA, INC.
  • Push the engine cover at the position on the pins.
