Exploded View

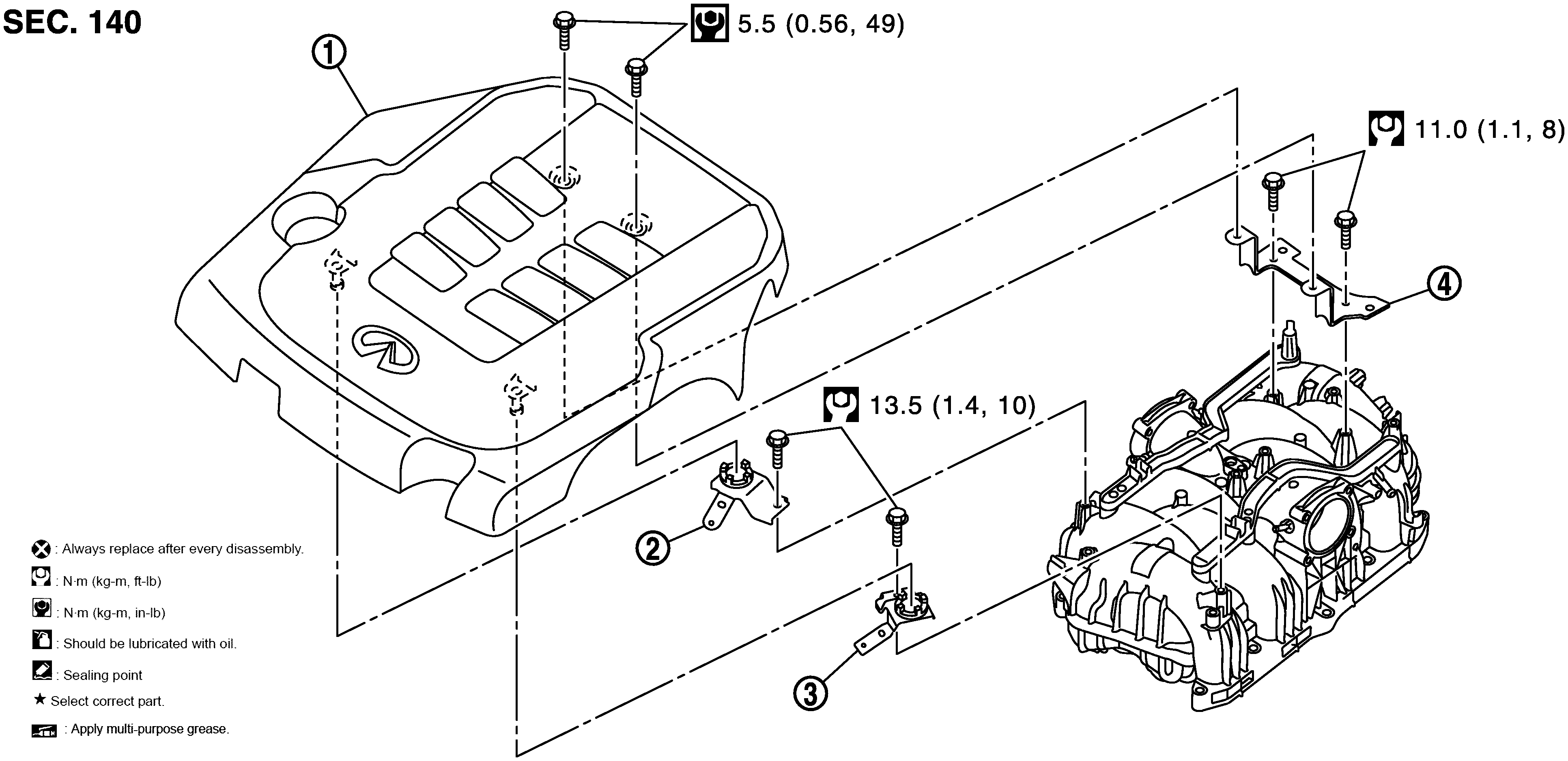

Fig 1: Engine Cover With Torque Specifications
GNSJPBIA3534GB-534Courtesy of NISSAN NORTH AMERICA, INC.

1.

Engine cover

2.

Bracket (right)

3.

Bracket (left)

4.

Bracket (rear)

Refer to Components for symbols in the figure.
