Exploded View

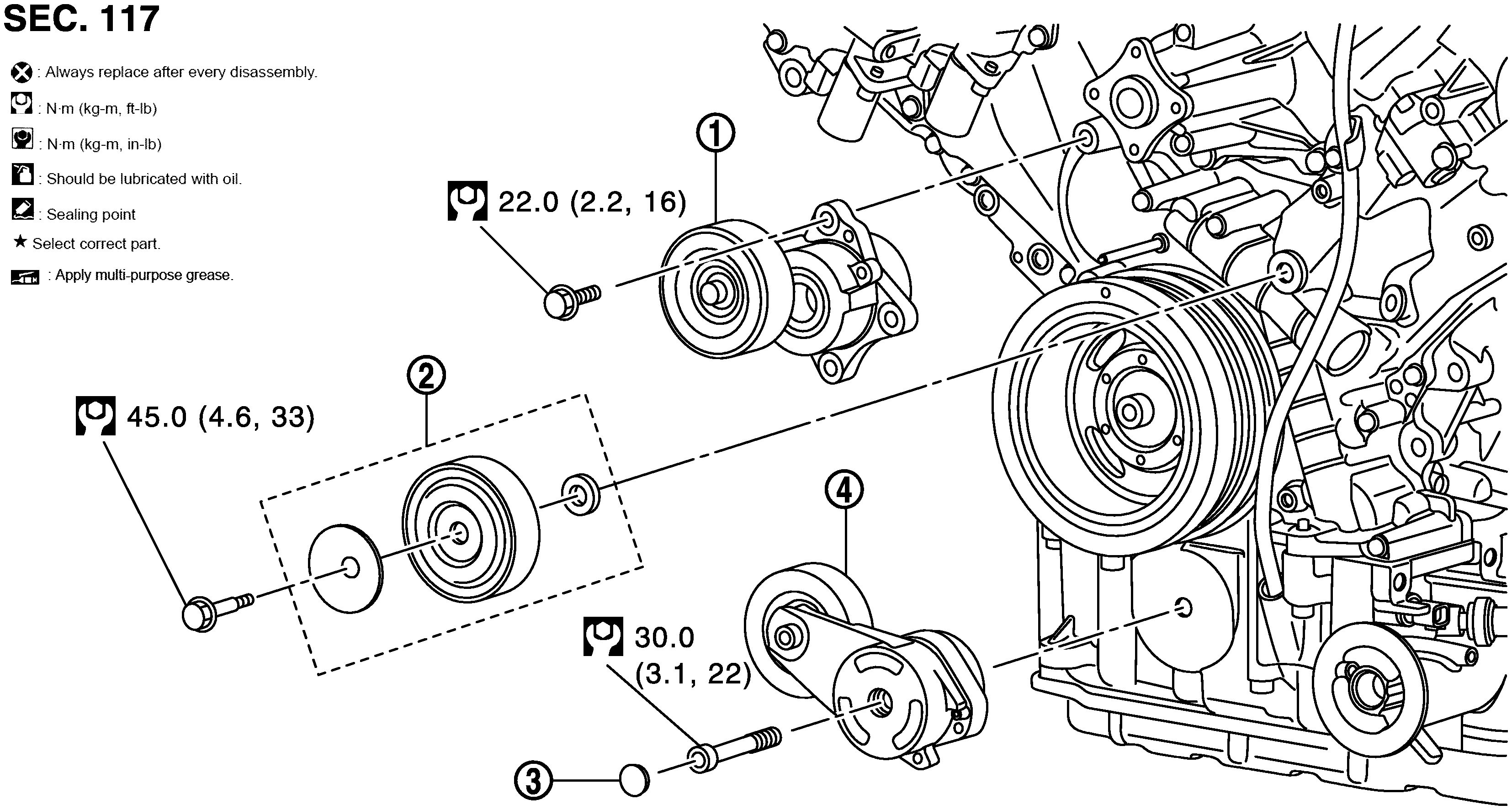

Fig 1: Drive Belt Auto Tensioner And Idler Pulley With Torque Specifications
GNSJPBIA2073GB-073Courtesy of NISSAN NORTH AMERICA, INC.

1.

Auto-tensioner (for alternator, water pump and A/C compressor belt)

2.

Idler pulley

3.

Cover

4.

Auto-tensioner (for power steering oil pump belt)

Refer to Components for symbols in the figure.
