Definitions Of Bank Names
- In this article, each bank name is defined as per the following:
A
: Bank 2 (The conventional right bank)
B
: Bank 1 (The conventional left bank)
: Engine front

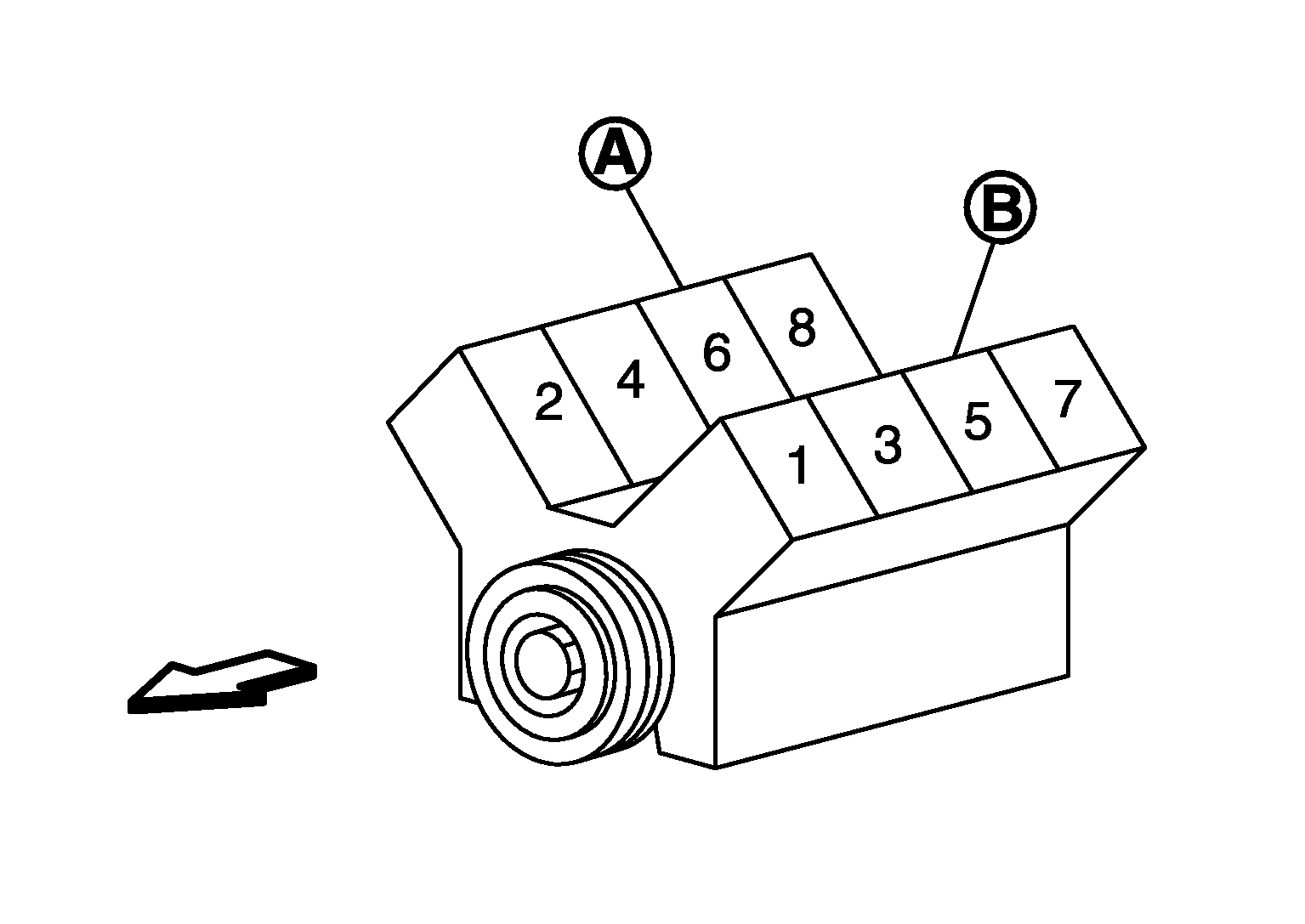

- For cylinder numbers and bank layout, refer to the figure.
Bank 1
: The bank side including cylinder No. 1
(odd-numbered cylinder side)
Bank 2
: The other bank side of the above
(even-numbered cylinder side)
