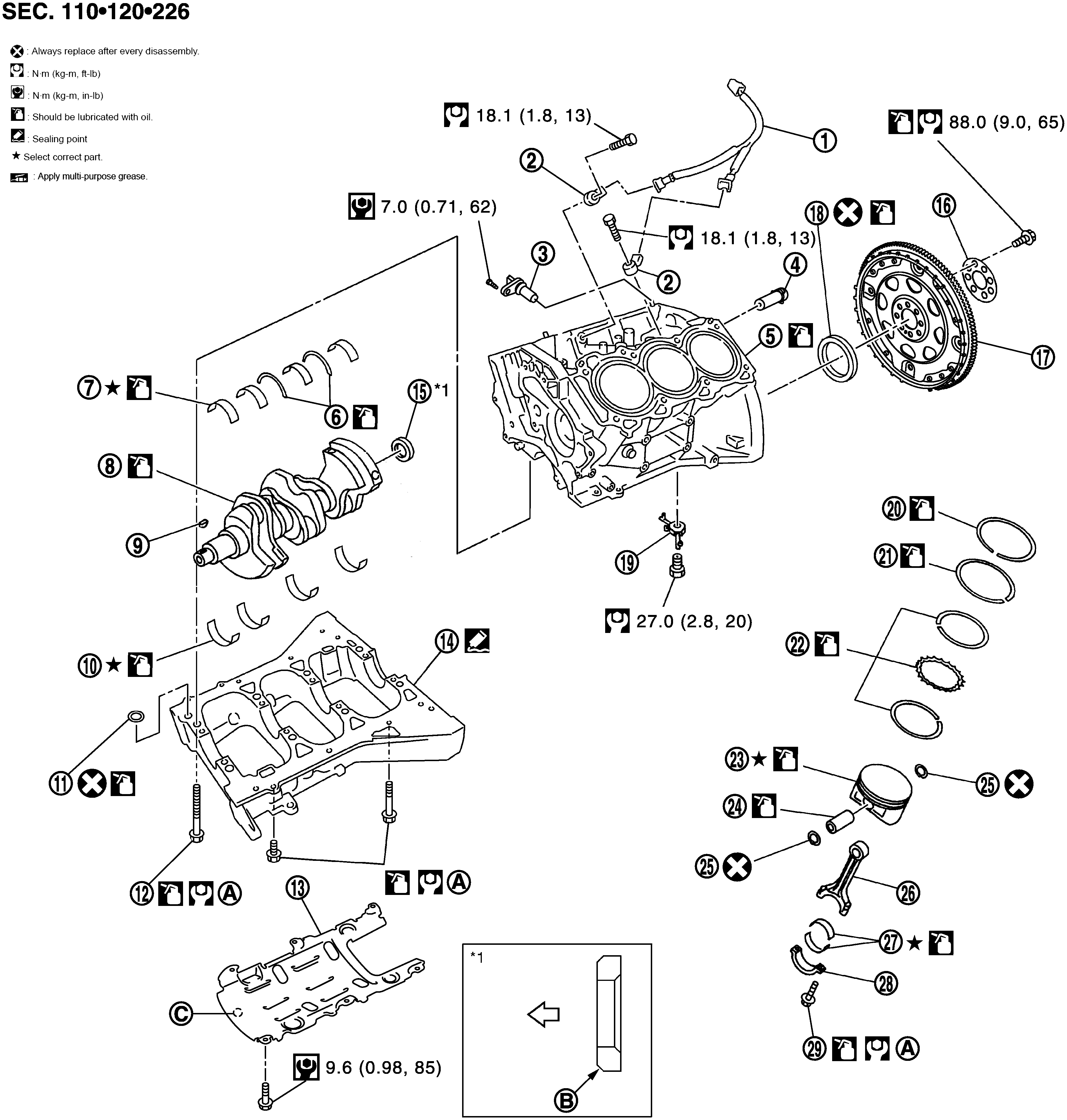

Exploded View
|
1. |
Sub harness |
2. |
Knock sensor |
3. |
Crankshaft position sensor |
|
4. |
Cylinder block heater (for Canada) |
5. |
Cylinder block |
6. |
Thrust bearing |
|
7. |
Main bearing (upper) |
8. |
Crankshaft |
9. |
Crankshaft key |
|
10. |
Main bearing (lower) |
11. |
O-ring |
12. |
Lower cylinder block bolt |
|
13. |
Baffle plate |
14. |
Lower cylinder block |
15. |
Pilot converter |
|
16. |
Reinforcement plate |
17. |
Drive plate |
18. |
Rear oil seal |
|
19. |
Oil jet |
20. |
Top ring |
21. |
Second ring |
|
22. |
Oil ring |
23. |
Piston |
24. |
Piston pin |
|
25. |
Snap ring |
26. |
Connecting rod |
27. |
Connecting rod bearing |
|
28. |
Connecting rod bearing cap |
29. |
Connecting rod bolt |
||
|
A. |
Comply with the assembly procedure when tightening. Refer to Disassembly and Assembly . |
B. |
Chamfered |
C. |
Front mark |
|
|
: Crankshaft side |
