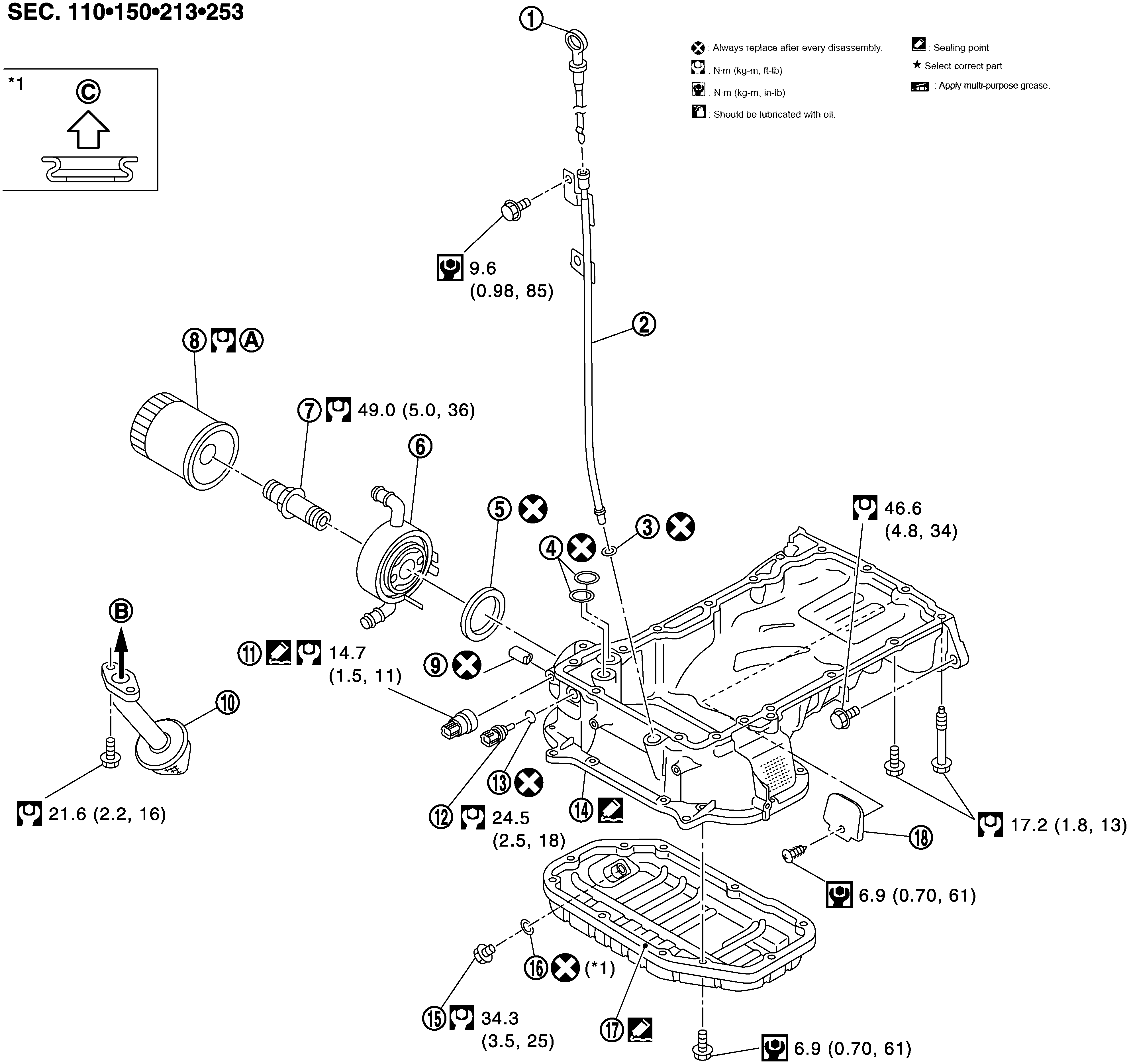

Exploded View
|
1. |
Oil Level Gauge |
2. |
Oil Level Gauge Guide |
3. |
O-Ring |
|
4. |
O-Ring |
5. |
O-Ring |
6. |
Oil Cooler |
|
7. |
Connector Bolt |
8. |
Oil Filter |
9. |
Relief Valve |
|
10. |
Oil Strainer |
11. |
Oil Pressure Switch |
12. |
Oil Temperature Sensor |
|
13. |
Washer |
14. |
Oil Pan (Upper) |
15. |
Drain Plug |
|
16. |
Drain Plug Washer |
17. |
Oil Pan (Lower) |
18. |
Rear Plate Cover |
|
A. |
Comply with the assembly procedure when tightening. Refer to Removal and Installation |
B. |
To oil pump |
C. |
Oil pan side |
|
Refer to Components for symbols in the figure. |
|||||
|

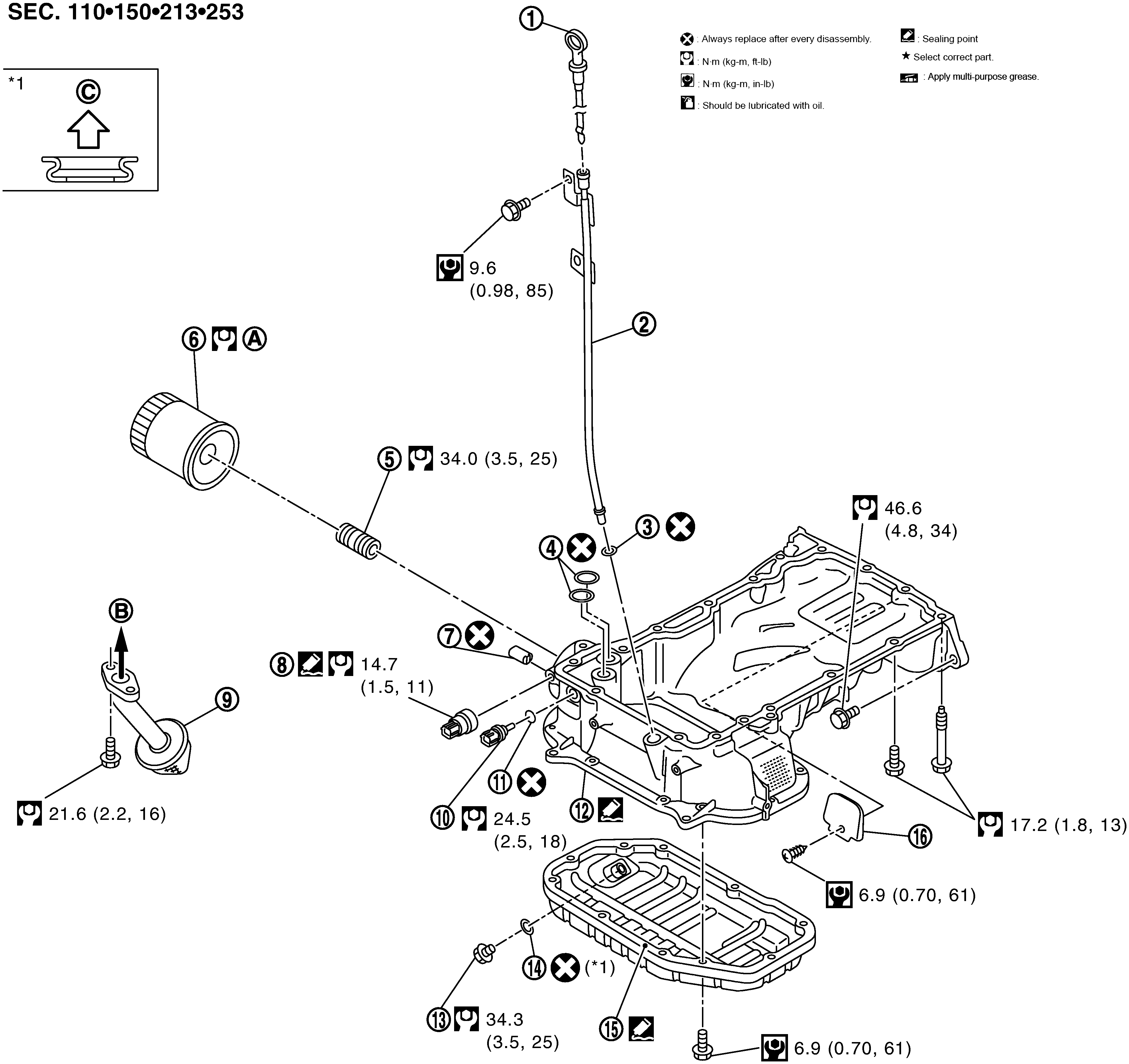

1. |
Oil Level Gauge |
2. |
Oil Level Gauge Guide |
3. |
O-Ring |
|
4. |
O-Ring |
5. |
Connector Bolt |
6. |
Oil Filter |
|
7. |
Relief Valve |
8. |
Oil Pressure Switch |
9. |
Oil Strainer |
|
10. |
Oil Temperature Sensor |
11. |
Washer |
12. |
Oil Pan (Upper) |
|
13. |
Drain Plug |
14. |
Drain Plug Washer |
15. |
Oil Pan (Lower) |
|
16. |
Rear Plate Cover |
||||
|
A. |
Comply with the assembly procedure when tightening. Refer to Removal and Installation |
B. |
To oil pump |
C. |
Oil pan side |
|
Refer to Components for symbols in the figure. |
|||||
|

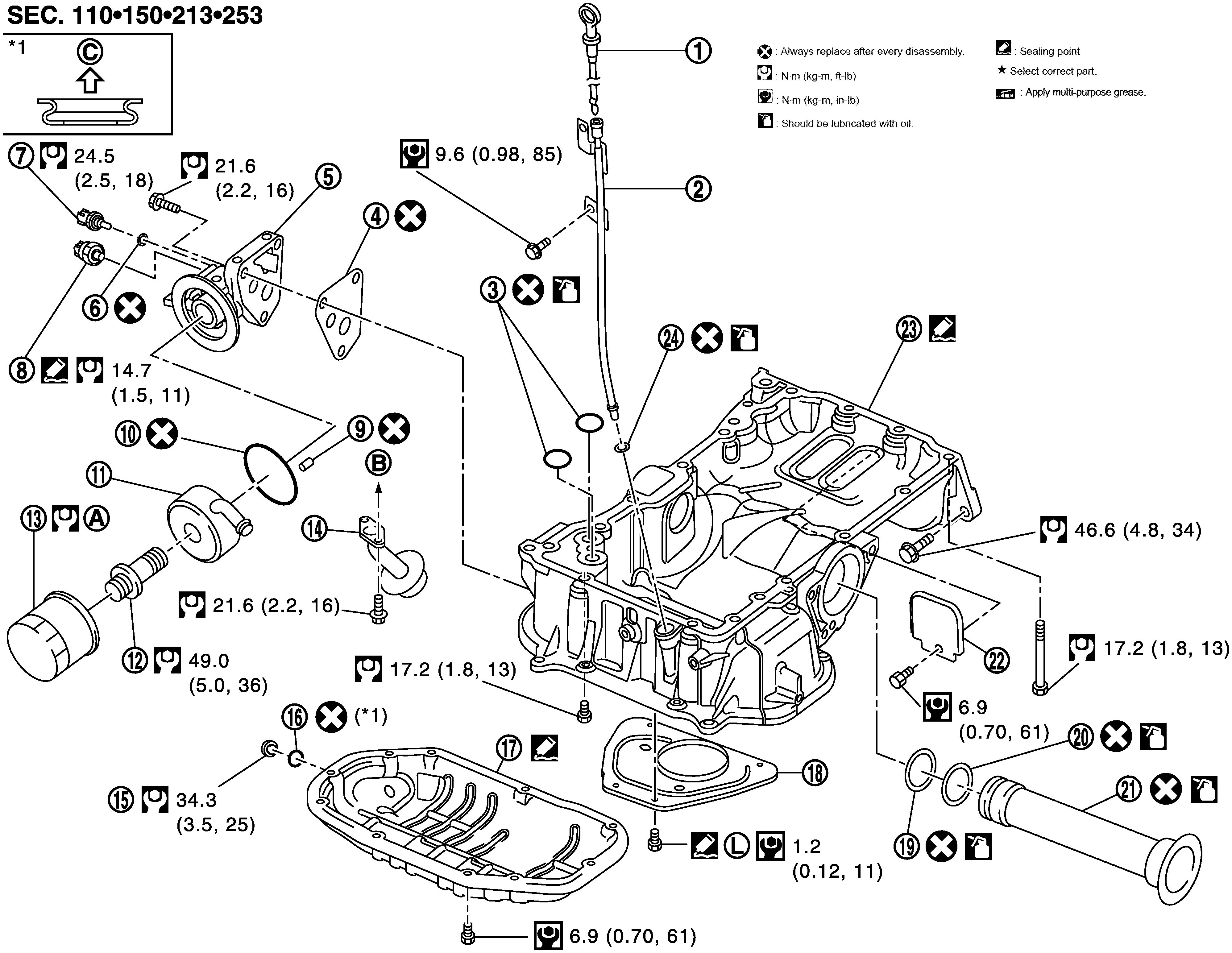

1. |
Oil Level Gauge |
2. |
Oil Level Gauge Guide |
3. |
O-Ring |
|
4. |
Gasket |
5. |
Oil Filter Bracket |
6. |
Washer |
|
7. |
Oil Temperature Sensor |
8. |
Oil Pressure Switch |
9. |
Relief Valve |
|
10. |
O-Ring |
11. |
Oil Cooler |
12. |
Connector Bolt |
|
13. |
Oil Filter |
14. |
Oil Strainer |
15 |
Drain Plug |
|
16. |
Drain Plug Washer |
17. |
Oil Pan (Lower) |
18. |
Baffle Plate |
|
19. |
O-Ring (Small) |
20. |
O-Ring (Large) |
21. |
Axle Pipe |
|
22. |
Rear Plate Cover |
23. |
Oil Pan (Upper) |
24 |
O-Ring |
|
A. |
Comply with the assembly procedure when tightening. Refer to Removal and Installation |
B. |
To oil pump |
C. |
Oil pan side |
|
Refer to Components for symbols in the figure. |
|||||
|

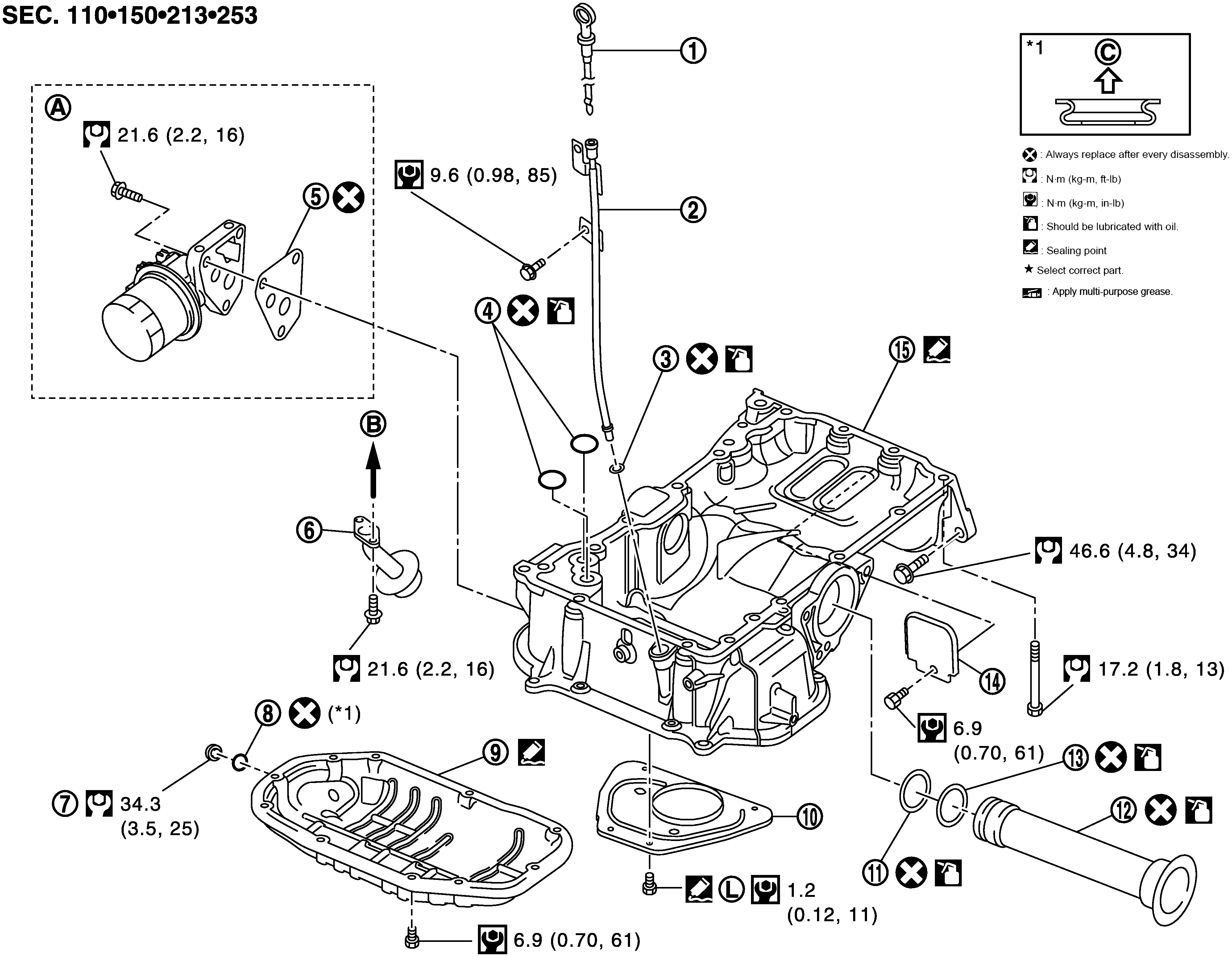

1. |
Oil Level Gauge |
2. |
Oil Level Gauge Guide |
3. |
O-Ring |
|
4. |
O-Ring |
5. |
Gasket |
6. |
Oil Strainer |
|
7. |
Drain Plug |
8. |
Drain Plug Washer |
9. |
Oil Pan (Lower) |
|
10. |
Baffle Plate |
11. |
O-Ring (Small) |
12. |
Axle Pipe |
|
13. |
O-Ring (Large) |
14. |
Rear Plate Cover |
15 |
Oil Pan (Upper) |
|
A. |
Comply with the assembly procedure when tightening. Refer to Removal and Installation |
B. |
To oil pump |
C. |
Oil pan side |
|
Refer to Components for symbols in the figure. |
|||||
