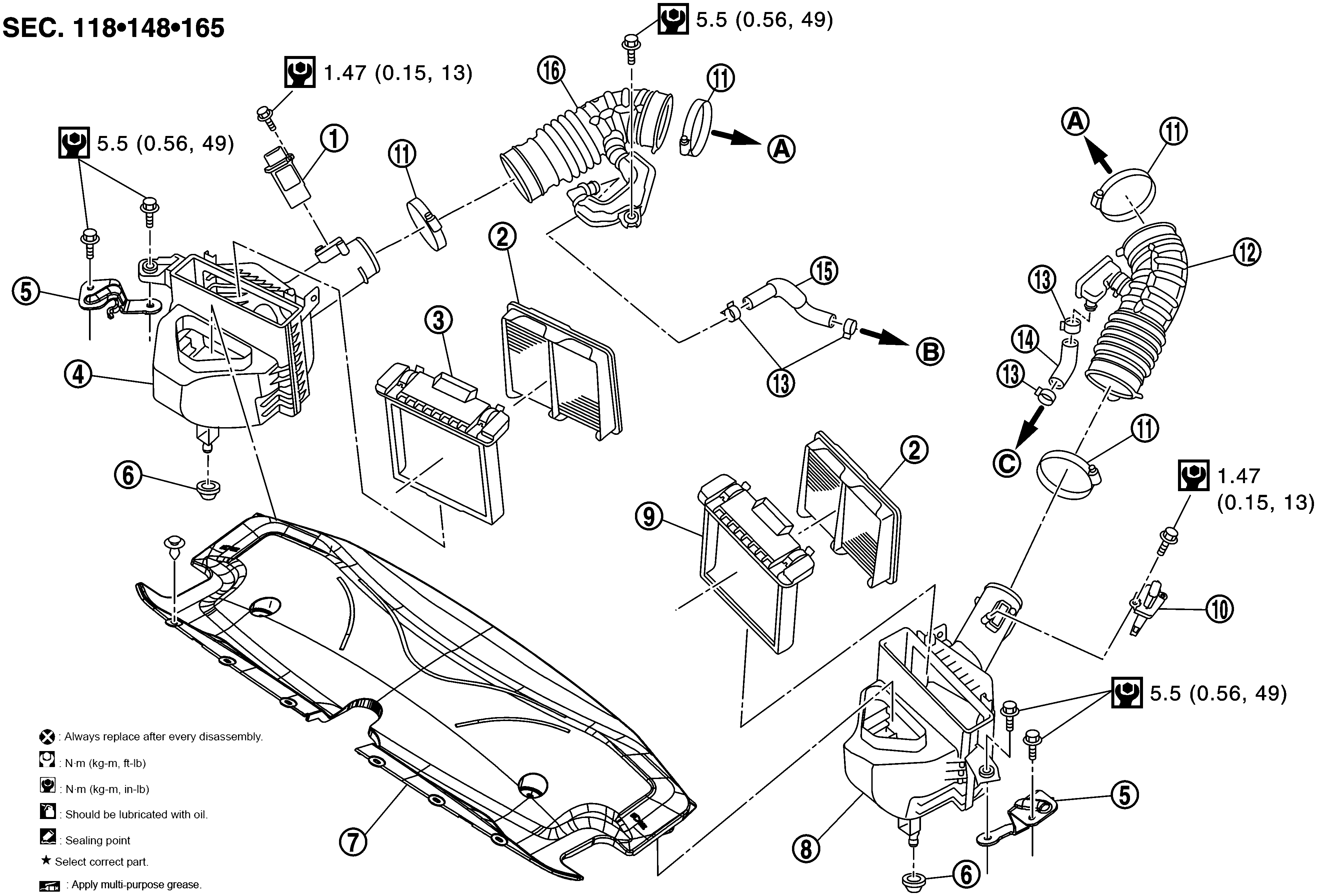

Exploded View

1.

Mass air flow sensor (bank 1)

2.

Air cleaner filter

3.

Holder (RH)

4.

Air cleaner case (RH)

5.

Bracket

6.

Grommet

7.

Air duct (inlet)

8.

Air cleaner case (LH)

9.

Holder (LH)

10.

Mass air flow sensor (bank 2)

11.

Clamp

12.

Air duct (LH)

13.

Clamp

14.

PCV hose

15.

PCV hose

16.

Air duct (RH)

A.

To electric throttle control actuator

B.

To rocker cover (bank 1)

C.

To rocker cover (bank 2)

Refer to Components for symbols in the figure.
