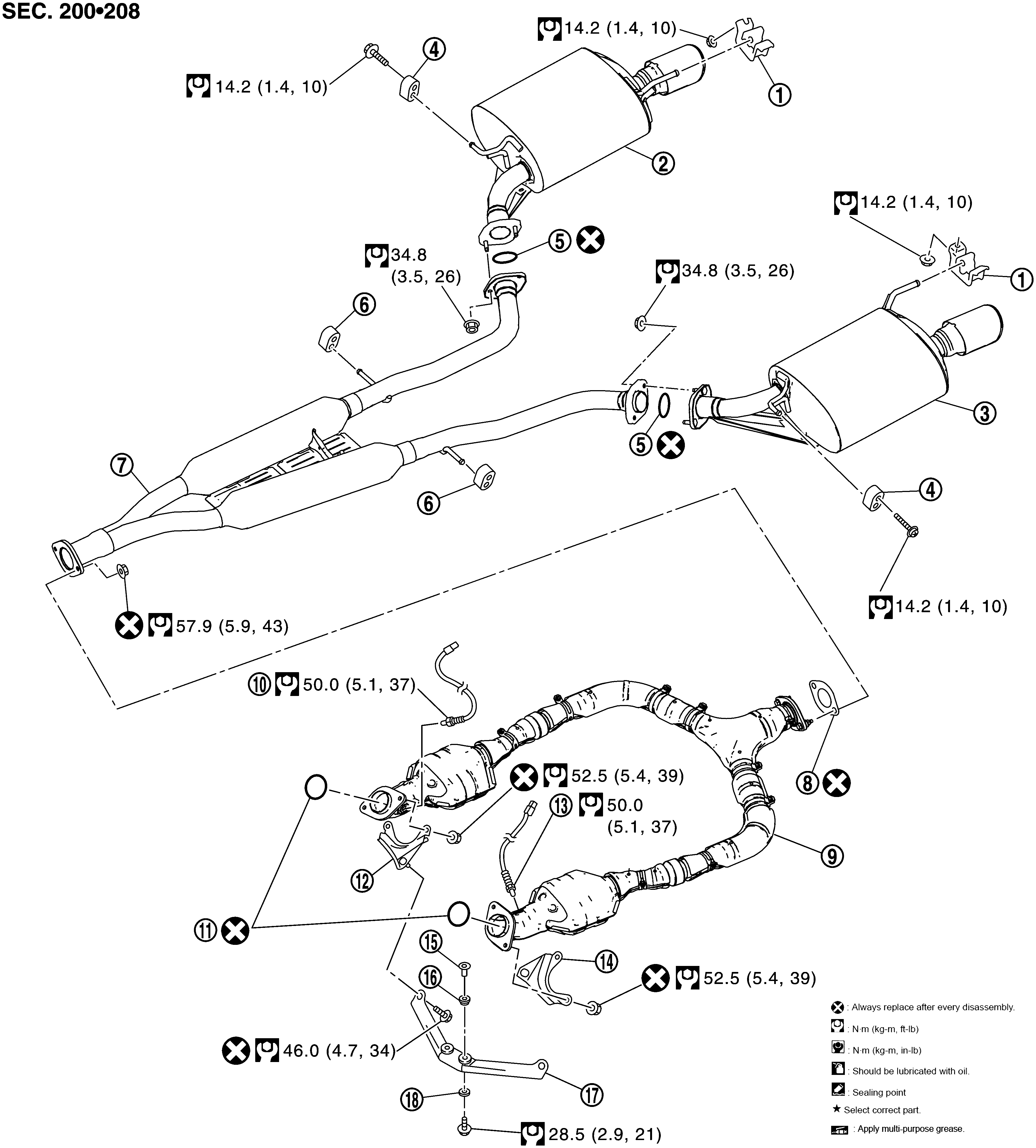

Exploded View

Fig 1: Exhaust System 5.6L With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Mounting Rubber	2.	Main Muffler (RH)	3.	Main Muffler (LH)
4.	Mounting Rubber	5.	Ring Gasket	6.	Mounting Rubber
7.	Center Muffler	8.	Gasket	9.	Exhaust Front Tube
10.	Heated Oxygen Sensor 2 (Bank 2)	11.	Ring Gasket	12.	Mounting Bracket
13.	Heated Oxygen Sensor 2 (Bank 1)	14.	Mounting Bracket	15.	Collar
16.	Grommet	17.	Mounting Bracket	18.	Grommet
	: N.m (kg-m, ft-lb)
	: Always replace after every disassembly.
